Atari st mod serial port upgrade rsve
About the Atari st mod serial port upgrade rsve PCB
Atari st mod serial port upgrade rsve is an open source PCB design by sporniket, published on GitHub under the CC0-1.0 license. It is a 4-layer board measuring 35.6 × 43.2 mm, with 12 components from 11 distinct parts.
Other key parts include the GAL16V8_PHY and 12-STAGE_BINARY_RIPPLE_COUNTER_PHY. By type, the board carries 6 connectors, 2 ICs, 2 capacitors, 1 crystal and 1 resistor.
From the project

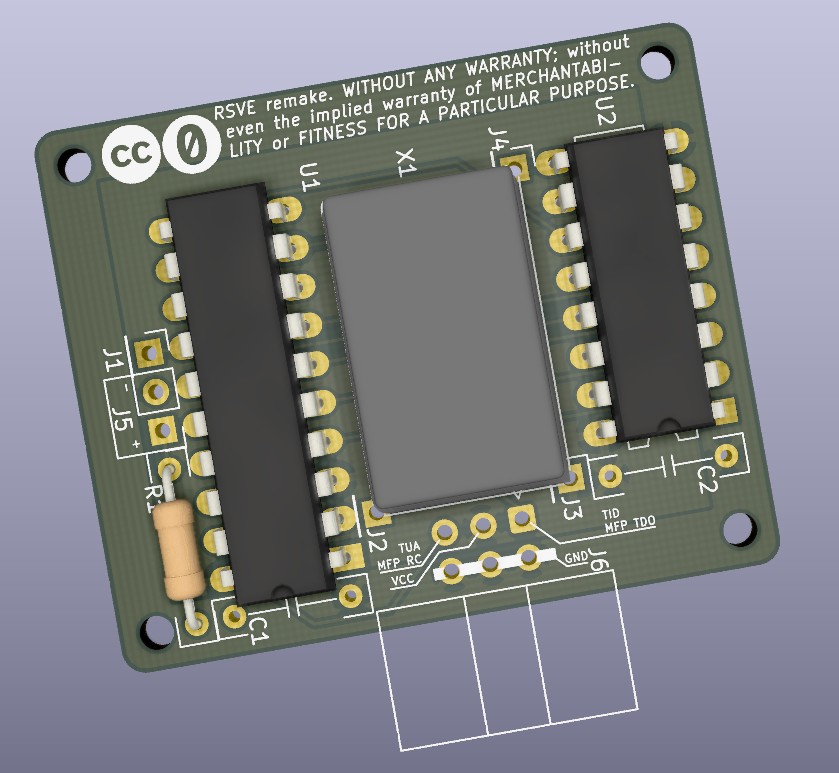

A remake of the 'RSVE' serial port upgrade for the Atari ST.
Starting from after version 1.0.0, the project is migrated to Kicad 6
1. What is The RSVE serial port mod for the Atari ST, and when to use it ? 2. What should you know before using The RSVE serial port mod for the Atari ST ? 3. How to use The RSVE serial port mod for the Atari ST ? 4. Known issues 5. Miscellanous
The RSVE serial port mod for the Atari ST is a remake of the 'RSVE' serial port upgrade for the Atari ST, that allows to use far higher speed than the stock 19.2 kbps of an unmodded computer.
Main components on the Atari st mod serial port upgrade rsve
Atari st mod serial port upgrade rsve bill of materials (BOM)
12 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GAL16V8_PHY | DIP-20_W7.62mm_LongPads | U1 |
| 1 | 12-STAGE_BINARY_RIPPLE_COUNTER_PHY | DIP-16_W7.62mm_LongPads | U2 |
| 1 | 1,8432 MHz | Oscillator_DIP-14 | X1 |
| 1 | MFP RC | PinHeader_1x01_P2.54mm_Vertical | J1 |
| 1 | MFP TDO | PinHeader_1x01_P2.54mm_Vertical | J2 |
| 1 | VCC | PinHeader_1x01_P2.54mm_Vertical | J3 |
| 1 | GND | PinHeader_1x01_P2.54mm_Vertical | J4 |
| 1 | Led | PinHeader_1x02_P2.54mm_Vertical | J5 |
| 1 | IDC connector | IDC-Header_2x03_P2.54mm_Horizontal | J6 |
| 2 | 0.1uF | Passive_THT_capacitor_mlcc_W2.54mm_L7.62mm | C1, C2 |
| 1 | 1K | Passive_THT_resistor_W2.54mm_L10.16mm | R1 |
