Rear Bike Light
About the Rear Bike Light PCB
Rear Bike Light is an open source PCB design by Stanislav-developer, published on GitHub. It is a board, with 9 components from 8 distinct parts.
Other key parts include the AMC7135. By type, the board carries 2 capacitors, 2 resistors, 1 IC, 1 battery holder, 1 switch and 1 diode.
From the project

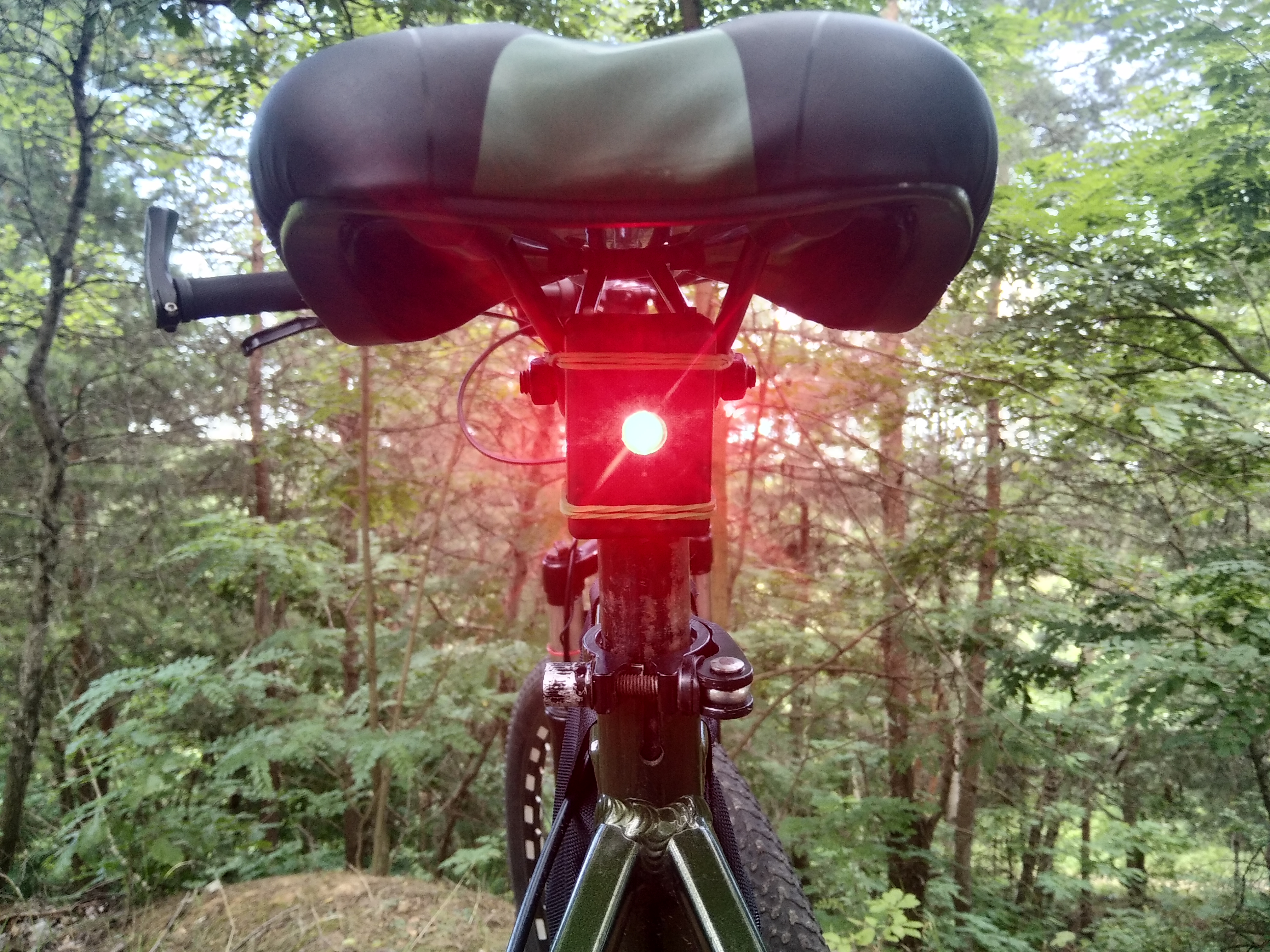

Простий та функціональний задній ліхтарик для велосипеда на базі мікроконтролера ATtiny13. Ліхтарик має різні режими світіння, функцію пам’яті режимів та енергозбереження, стабілізацію яскравості і працює від Li-Ion акумулятора
Main components on the Rear Bike Light
Rear Bike Light bill of materials (BOM)
9 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMC7135 | U1 | |
| 1 | LiI-Ion 3.7V | BT1 | |
| 1 | TP4056 | Module1 | |
| 1 | Button | SW1 | |
| 1 | 1W LED | D1 | |
| 1 | 47μF | C1 | |
| 1 | 100nF | C2 | |
| 2 | 10K | R1, R2 |
