Krteq PCB layout, top view — open source board by swift502
Simulate this board

About the Krteq PCB

Krteq is an open source PCB design by swift502, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 228.6 × 116.3 mm, with 262 components from 9 distinct parts.

By type, the board carries 125 diodes, 72 resistors, 61 switches and 4 transistors.

It belongs with the keyboards designs in this gallery.

From the project

Low profile ortholinear keyboard

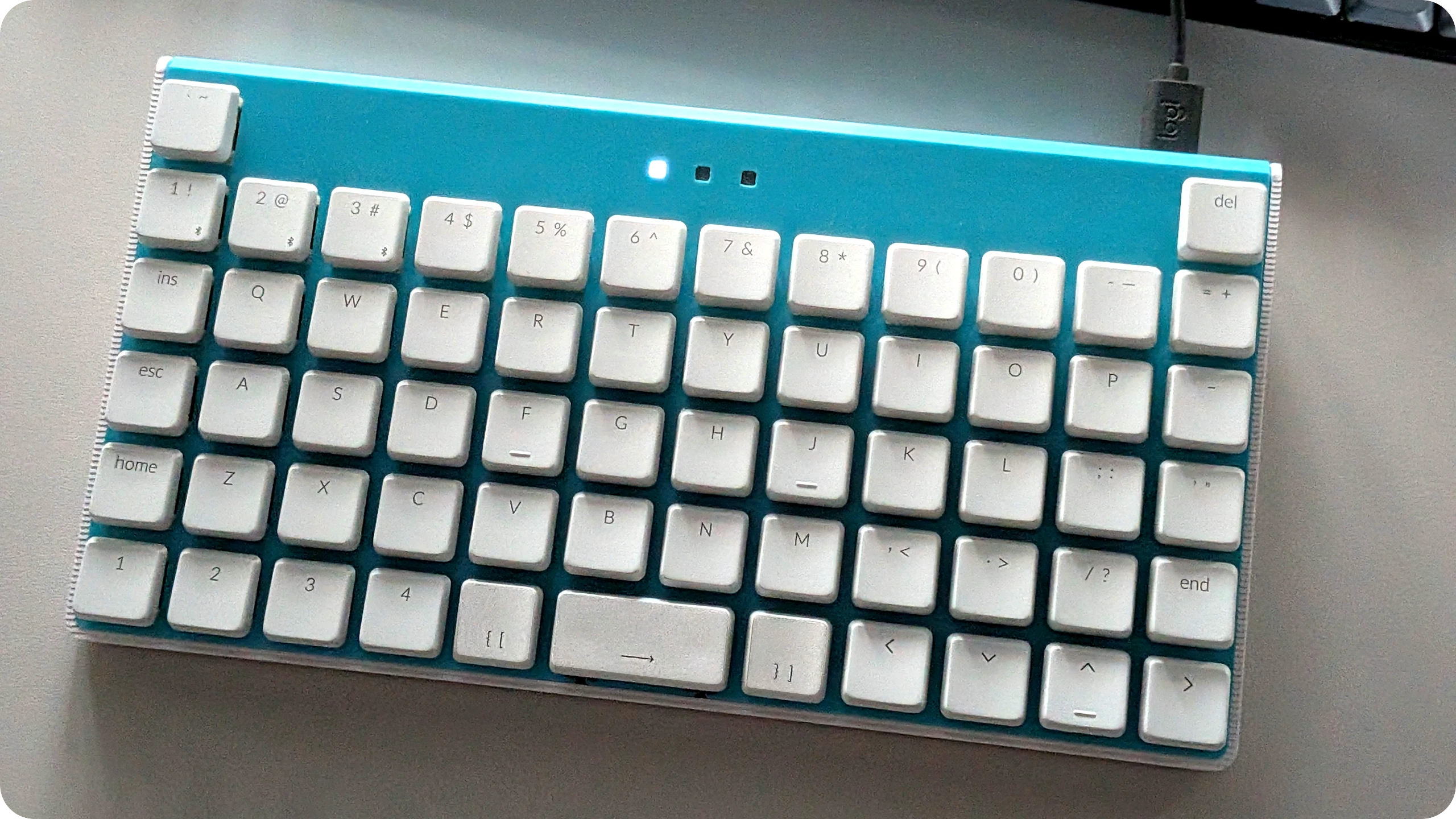

An extended 5x12 keyboard with 2 extra keys. Intended for ortho layouts with a shifted number row, allowing for the placement of the delete and tilde keys above their usual spots.

Krteq is a successor to Krtkus, learning from its lessons to make a design that's easier to build, more maintainable, better encapsulated and overall a more complete product.

- Low profile - Hotswap - White backlight (only breathing effect) - QMK/VIA compatible - Gateron KS-33B (GLP 3.0) switches - 3D printed case with a 7 degree tilt - Tray mount PCB, integrated plate - 233mm × 125mm × 30mm

Krteq, from the project README
From the project README

Krteq bill of materials (BOM)

262 components, 9 distinct parts.

QtyPartRefs
4
HX2302A
Q NMOS GSD
Q1, Q2, Q3, Q4
60
CPG151101S11-16
Switch
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +52
1
CPG151101S11-16
Switch
SW31
64
MHT151WDT
LED
D1, D2, D3, D65, D66, D67, D68, D69 +56
61
1N4148W
Diode
D4, D5, D6, D7, D8, D9, D10, D11 +53
3
0603WAF820JT5E
82Ω
R1, R4, R7
4
0603WAF4700T5E
470Ω
R2, R5, R8, R10
4
0603WAF1002T5E
10kΩ
R3, R6, R9, R11
61
0603WAF3300T5E
330Ω
R65, R66, R67, R68, R69, R70, R71, R72 +53

Krteq design files

The KiCad project lives in the swift502/Krteq repository on GitHub; these links point at the commit this page was built from.

Krteq: common questions

How big is the Krteq PCB?

The Krteq measures 228.6 × 116.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Krteq?

262 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Krteq design files?

From the swift502/Krteq repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Krteq design in my own project?

Yes, under the terms of its CC0-1.0 license, which swift502 chose for the repository.
