Topplate 1 1
About the Topplate 1 1 PCB

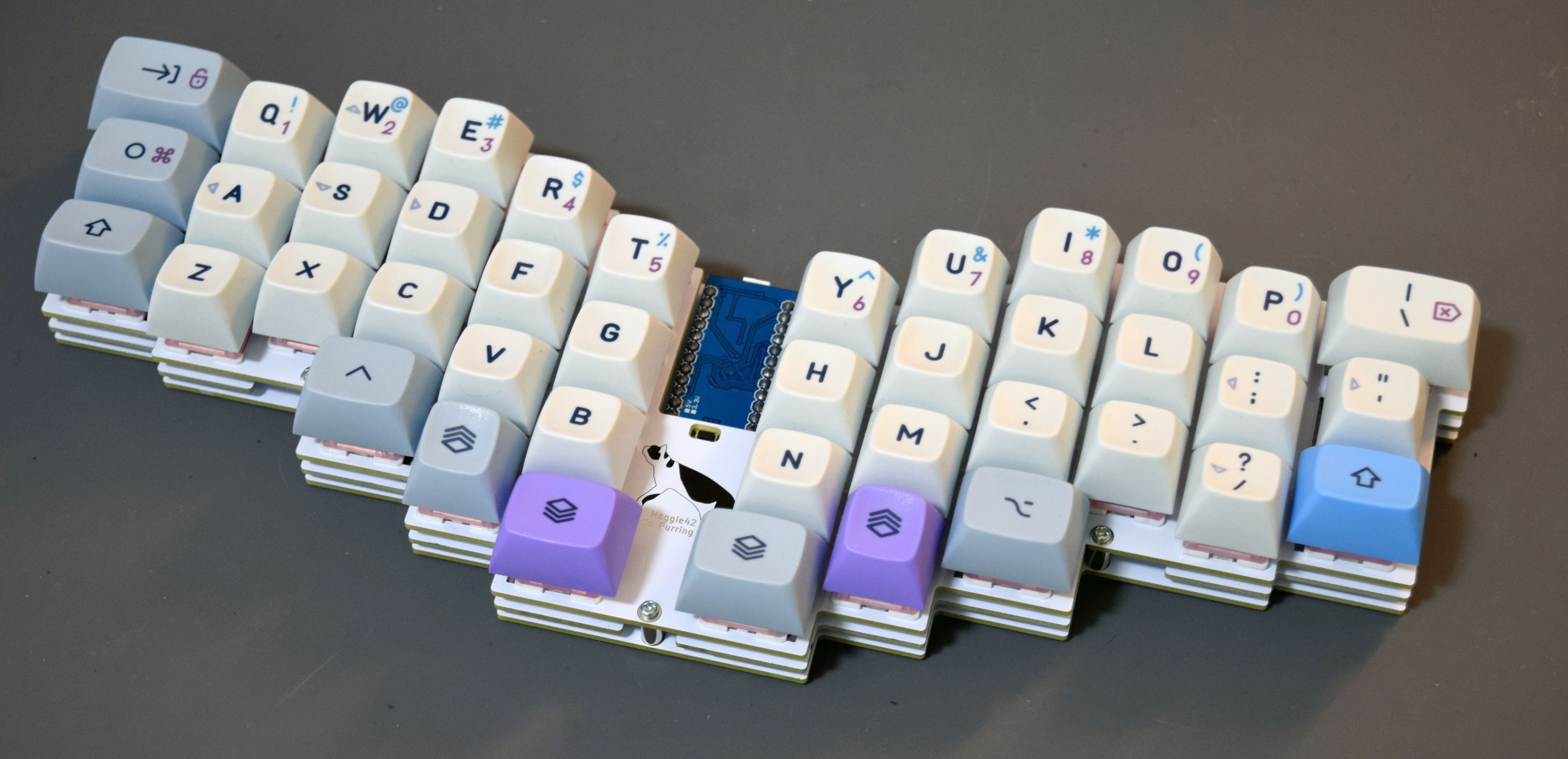

Topplate 1 1 is an open source PCB design by tamaroh, published on GitHub. It is a 2-layer board measuring 266.7 × 95.3 mm, with 42 components from 3 distinct parts.
From the project
* 厚さの異なるPro Micro互換品（USB-Cコネクタのタイプ）などの場合の動作検証は行っておりません。
* 厚さの異なるPro Micro互換品（USB-Cコネクタのタイプ）などの場合の動作検証は行っておりません。
- ピンセット - キースイッチプラー - キーキャッププラー - はんだ吸い取り線または吸い取り器 - 絶縁耐熱テープ
- 必要な手順や部品の種類・数はアップデートによって変更になる場合があります。 - 本ビルドガイドの写真の一部は製品と異なる場合があります。
Topplate 1 1 bill of materials (BOM)
42 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SW_PUSH | SW_Hole_1+1.5 | SW1, SW27 |
| 32 | SW_PUSH | SW_Hole | SW2, SW3, SW4, SW5, SW6, SW8, SW9, SW10 +24 |
| 8 | SW_PUSH | SW_Hole_1+1.25 | SW7, SW13, SW19, SW21, SW33, SW39, SW40, SW42 |
Topplate 1 1 design files
The KiCad project lives in the tamaroh/maggie42 repository on GitHub; these links point at the commit this page was built from.
Topplate 1 1: common questions
How big is the Topplate 1 1 PCB?
The Topplate 1 1 measures 266.7 × 95.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Topplate 1 1?
42 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Topplate 1 1 design files?
From the tamaroh/maggie42 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Topplate 1 1 design in my own project?
The repository has no license, so all rights stay with tamaroh. Use it as a reference, and ask the author before reusing the design.
