DIY-AM-FM-Radio-Receiver with-CXA1019S PCB layout, top view — open source board by TeknoTrek

About the DIY-AM-FM-Radio-Receiver with-CXA1019S PCB

DIY-AM-FM-Radio-Receiver with-CXA1019S is an open source PCB design by TeknoTrek, published on GitHub. It is a 2-layer board measuring 80 × 100 mm, with 48 components from 40 distinct parts.

Other key parts include the CXA1019S. By type, the board carries 24 capacitors, 6 resistors, 5 inductors, 3 connectors, 2 ICs and 2 diodes.

It belongs with the rf & radio and wearables designs in this gallery.

From the project

This repo contains open-source KiCad PCB designs for a DIY AM/FM radio receiver using the Sony CXA1019S IC. Perfect for electronics beginners! 🔹 Key Features: Dual-band (AM+FM) receiver schematic Optimized PCB layout for low noise Ready-to-manufacture Gerber files

🚀 Build your own high-quality AM/FM radio receiver using the Sony CXA1019S IC! This repository contains the complete KiCad PCB design, schematic, and BOM for a powerful DIY radio project.

🎥 Watch the Full Build Tutorial on YouTube: 👉 Click here to watch the video

Q: Where can I buy the CXA1019S IC? A: Check AliExpress, eBay, or local electronics stores.

📢 Disclaimer: This is an open-source project. Use at your own risk.

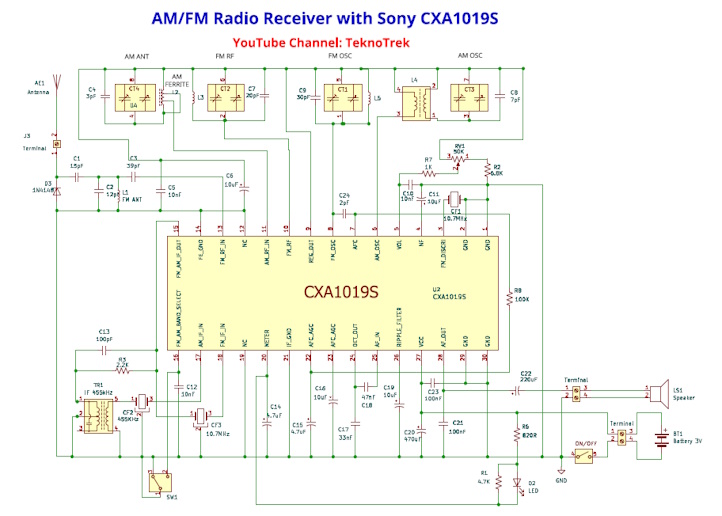

DIY-AM-FM-Radio-Receiver with-CXA1019S, from the project README
From the project README

Main components on the DIY-AM-FM-Radio-Receiver with-CXA1019S

CXA1019S

DIY-AM-FM-Radio-Receiver with-CXA1019S bill of materials (BOM)

48 components, 40 distinct parts.

QtyPartRefs
1
CXA1019S
U2
1
~
U4
2
Terminal
J1, J2
1
Terminal
J3
1
10.7MHz
CF1
1
455KHz
CF2
1
10.7MHz
CF3
1
50K
RV1
1
FM <> AM
SW1
1
IF 455kHz
TR1
1
LED
D2
1
1N4148
D3
1
FM ANT
L1
1
L_Ferrite
L2
1
~
L3
1
AM OSC
L4
1
~
L5
1
15pF
C1
1
12pF
C2
1
39pF
C3
Show 20 more
QtyPartRefs
1
3pF
C4
3
10nF
C5, C10, C12
4
10uF
C6, C11, C16, C19
1
20pF
C7
1
7pF
C8
1
30pF
C9
1
100pF
C13
2
4.7uF
C14, C15
1
33nF
C17
1
47nF
C18
1
470uF
C20
2
100nF
C21, C23
1
220uF
C22
1
2pF
C24
1
4.7K
R1
1
6.8K
R2
1
2.2K
R3
1
820R
R6
1
1K
R7
1
100K
R8

DIY-AM-FM-Radio-Receiver with-CXA1019S design files

The KiCad project lives in the TeknoTrek/DIY-AM-FM-Radio-Receiver-with-CXA1019S repository on GitHub; these links point at the commit this page was built from.

DIY-AM-FM-Radio-Receiver with-CXA1019S: common questions

How big is the DIY-AM-FM-Radio-Receiver with-CXA1019S PCB?

The DIY-AM-FM-Radio-Receiver with-CXA1019S measures 80 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DIY-AM-FM-Radio-Receiver with-CXA1019S?

48 components, from 40 distinct parts. The full bill of materials is listed on this page.

Where can I download the DIY-AM-FM-Radio-Receiver with-CXA1019S design files?

From the TeknoTrek/DIY-AM-FM-Radio-Receiver-with-CXA1019S repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DIY-AM-FM-Radio-Receiver with-CXA1019S design in my own project?

The repository has no license, so all rights stay with TeknoTrek. Use it as a reference, and ask the author before reusing the design.
