STMPS PCB layout, top view — open source STM32 board by tetious

About the STMPS PCB

STMPS is an open source STM32 PCB design by tetious, published on GitHub. It is a 2-layer board measuring 85.9 × 44.7 mm, with 113 components from 45 distinct parts.

Its main chip is the STM32F411RCT6, from the STM32 family. Other key parts include the AOZ8904CIL, LM1117-3.3V, CHIP-TOP and A5984GLPTR-T. By type, the board carries 34 resistors, 28 capacitors, 16 connectors, 13 jumpers, 8 ICs and 6 diodes.

From the project

A 3d printer board based around the STM32F411.

STMPS is a WIP 3d printer board based around the STM32f411, with inspiration and guidance from the Printrboard, RAMPS 1.4, and the RepRap project.

This board is intended to work with Ambroz Bizjak's astonishingly fantastic aprinter firmware. Configuration files and guidance will be provided once the board is further along.

STMPS is open source hardware, licensed under CC BY-SA. Copyright (C) 2016 Greg Lincoln.

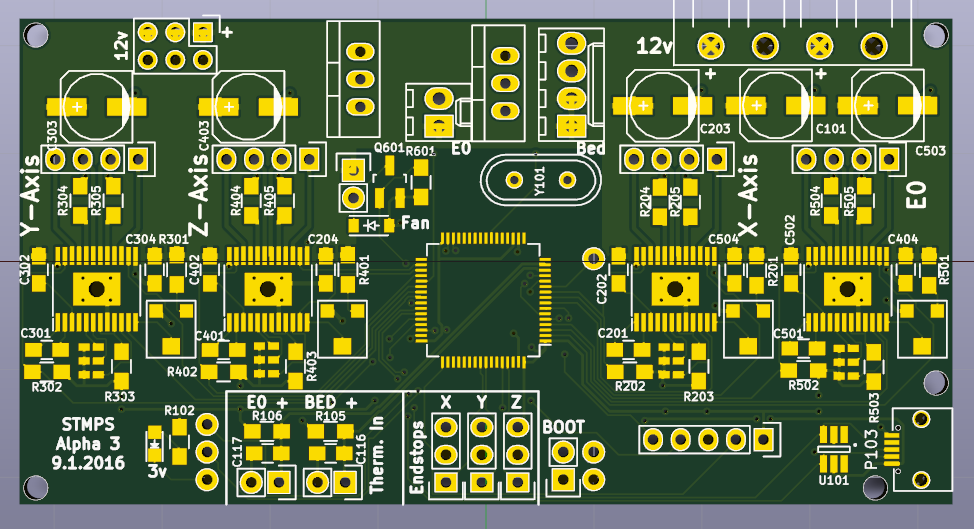

STMPS, from the project README
From the project README

Main components on the STMPS

AOZ8904CILLM1117-3.3VSTM32F411RCT6CHIP-TOPA5984GLPTR-T

STMPS bill of materials (BOM)

113 components, 45 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AOZ8904CIL
AOZ8904
U101
1
LM1117-3.3V
LM1117-3.3v
U102
1
STM32F411RCT6
STM32F411RCTx
U103
1
CHIP-TOP
U105
4
A5984GLPTR-T
A5984
U201, U301, U401, U501
1
SSM3K333RLF
SSM3K333
Q601
2
IPP039N04LGXKSA1
IPP039N04L
Q701, Q801
1
ABL-8.000MHZ-B2
Crystal
Y101
1
12v IN
P101
1
12V
12v
P102
1
USB_OTG
P103
1
E0_THERM
P104
1
X_STOP
P105
1
SWD
P106
1
BED_THERM
P107
1
Y_STOP
P108
1
Z_STOP
P109
1
BED
P110
1
EO
P111
4
MOT
P201, P301, P401, P501
Show 25 more
QtyPartRefs
1
LP_OUT
P601
1
BOOT0
JP101
4
MS3
JP201, JP301, JP401, JP501
4
MS2
JP202, JP302, JP402, JP502
4
MS1
JP203, JP303, JP403, JP503
4
TC33X-2-104E
100k
RV201, RV301, RV401, RV501
1
12V_PWR
12v_PWR
D101
1
3V_PWR
3v_PWR
D102
2
D_Schottky_Small
D103, D601
2
r
D701, D801
1
35TZV100M6.3X8
100uf
C101
3
10UF
10uf
C102, C116, C117
2
20PF
20pf
C103, C104
4
100NF
100nf
C108, C110, C111, C112
2
4.7UF
4.7uf
C113, C114
12
100NF
0.1uf
C201, C202, C204, C301, C302, C304, C401, C402 +4
4
UWT1V101MCL1GS
100uf
C203, C303, C403, C503
3
560
R101, R703, R803
1
56
R102
1
220
R103
12
100K
100k
R104, R202, R203, R302, R303, R402, R403, R502 +4
3
4.7K
4.7k
R105, R106, R107
4
200K
200k
R201, R301, R401, R501
8
0.1
R204, R205, R304, R305, R404, R405, R504, R505
2
100
R702, R802

STMPS design files

The KiCad project lives in the tetious/STMPS repository on GitHub; these links point at the commit this page was built from.

STMPS: common questions

What microcontroller does the STMPS use?

The STMPS is built around the STM32F411RCT6, from the STM32 family.

How big is the STMPS PCB?

The STMPS measures 85.9 × 44.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STMPS?

113 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STMPS design files?

From the tetious/STMPS repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the STMPS design in my own project?

The repository has no license, so all rights stay with tetious. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the STMPS without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
