Penor keyboard

theBaksoBoy·penor-keyboard·pcb/kicad_project/portable_keyboard.kicad_pcb

Penor keyboard PCB layout, top view — open source board by theBaksoBoy

About the Penor keyboard PCB

Penor keyboard is an open source PCB design by theBaksoBoy, published on GitHub. It is a 2-layer board measuring 117 × 73 mm, with 54 components from 3 distinct parts.

By type, the board carries 22 switches, 22 diodes and 10 connectors.

It belongs with the keyboards designs in this gallery.

From the project

files for the PENOR keyboard which is a split 6x3 board with 4 thumb-keys, using a PCB where the TRRS-jack and MCU (RP2040) are attached elsewhere, with wires needed to bridge them to the PCB.

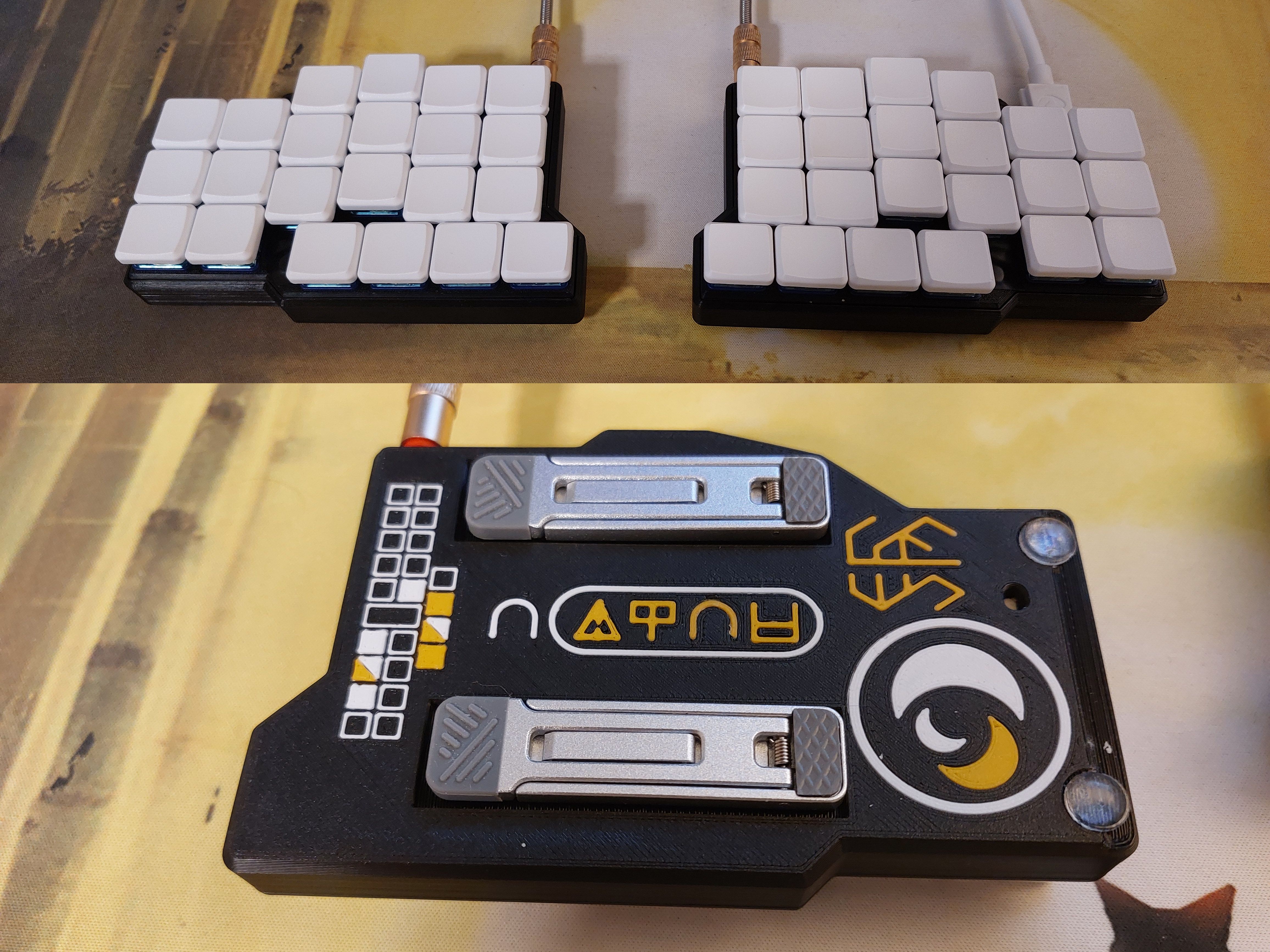

Penor keyboard, from the project README
From the project README

Penor keyboard bill of materials (BOM)

54 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
10
CONN_01X01
Conn_01x01
J1, J2, J3, J4, J5, J6, J7, J8 +2
22
~
S1, S2, S3, S4, S5, S6, S7, S8 +14
22
~
D1, D2, D3, D4, D5, D6, D7, D8 +14

Penor keyboard design files

The KiCad project lives in the theBaksoBoy/penor-keyboard repository on GitHub; these links point at the commit this page was built from.

Penor keyboard: common questions

How big is the Penor keyboard PCB?

The Penor keyboard measures 117 × 73 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Penor keyboard?

54 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Penor keyboard design files?

From the theBaksoBoy/penor-keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Penor keyboard design in my own project?

The repository has no license, so all rights stay with theBaksoBoy. Use it as a reference, and ask the author before reusing the design.
