themaxbang·MRIYA·pcb/mriya-pcb/mriya-pcb-1.1.3.kicad_pcb

MRIYA PCB layout, top view — open source board by themaxbang
Simulate this board

About the MRIYA PCB

MRIYA is an open source PCB design by themaxbang, published on GitHub under the MIT license. It is a 2-layer board measuring 270.4 × 100.3 mm, with 124 components from 13 distinct parts.

Other key parts include the nRFMicro. By type, the board carries 42 switches, 42 diodes, 4 connectors and 2 ICs.

It belongs with the keyboards, robotics & motion and iot & wireless designs in this gallery.

From the project

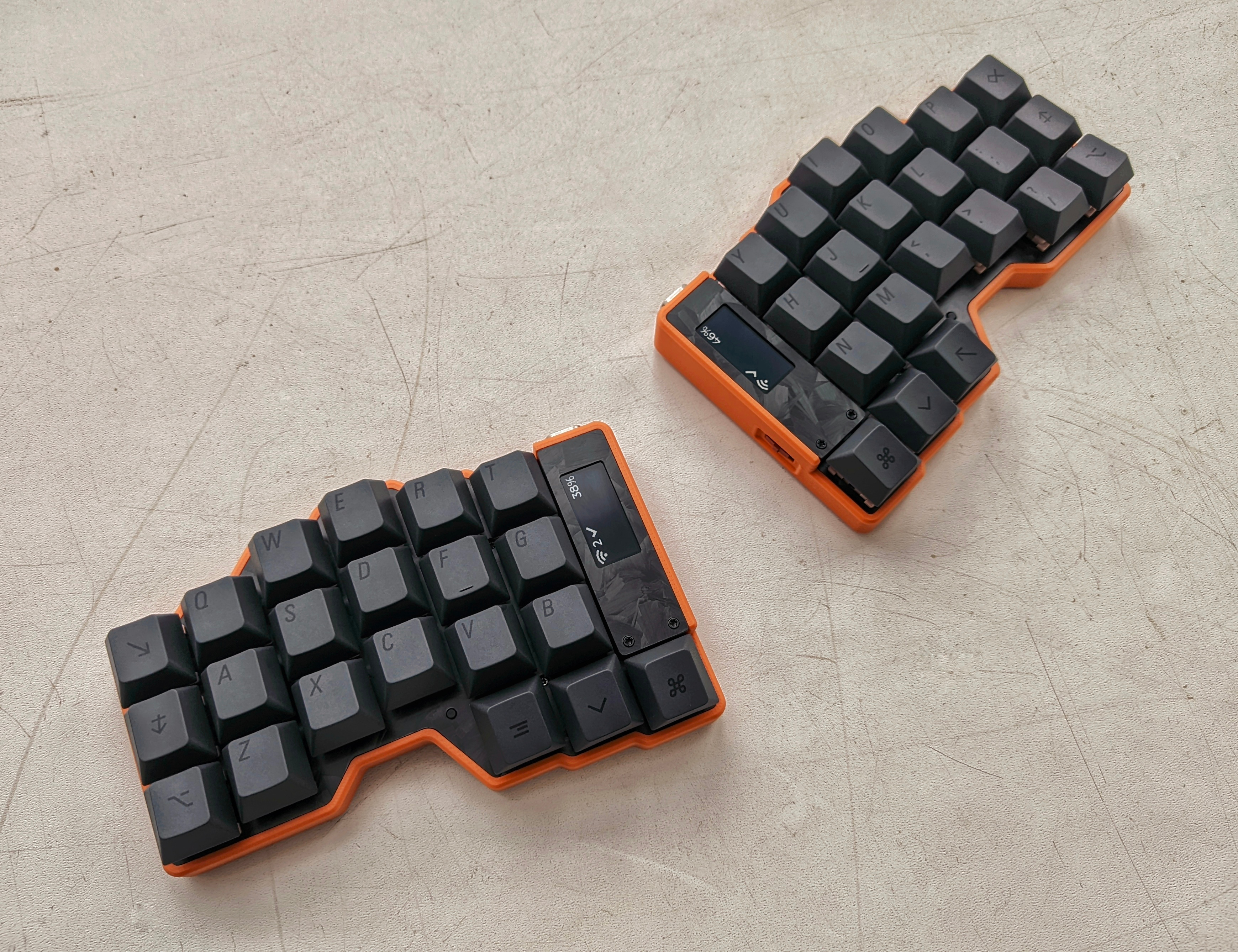

MRIYA is a 42-key column-staggered split keyboard based on the Corne Cherry v.3.0.1

MRIYA, from the project README
From the project README

Main components on the MRIYA

nRFMicro

MRIYA bill of materials (BOM)

124 components, 13 distinct parts.

QtyPartRefs
2
nRFMicro
U1, U2
2
nice!view
J1, J2
2
JST
J3, J4
4
Hole 2mm
H1, H2, H11, H12
8
Hole 3.4mm
H3, H4, H5, H6, H7, H8, H9, H10
4
MB
MB1, MB2, MB3, MB4
8
MB
MB-2mm-1, MB-2mm-2, MB-2mm-3, MB-2mm-4, MB-2mm-5, MB-2mm-6, MB-2mm-7, MB-2mm-8
4
MountingHole 2mm
MH1, MH2, MH3, MH4
2
Oval Hole
OH1, OH2
2
SW_SPDT
PSW1, PSW2
2
RSW
RSW1, RSW2
42
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +34
42
D
D1, D2, D3, D4, D5, D6, D7, D8 +34

MRIYA design files

The KiCad project lives in the themaxbang/MRIYA repository on GitHub; these links point at the commit this page was built from.

MRIYA: common questions

How big is the MRIYA PCB?

The MRIYA measures 270.4 × 100.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MRIYA?

124 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the MRIYA design files?

From the themaxbang/MRIYA repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MRIYA design in my own project?

Yes, under the terms of its MIT license, which themaxbang chose for the repository.
