KiCad workshop

ThePurox·KiCad-workshop

KiCad workshop PCB layout, top view — open source board by ThePurox

About the KiCad workshop PCB

KiCad workshop is an open source PCB design by ThePurox, published on GitHub. It is a 2-layer board measuring 114.3 × 57.2 mm, with 17 components from 3 distinct parts.

By type, the board carries 9 switches and 8 diodes.

It belongs with the keyboards designs in this gallery.

From the project

- Create Project - Install marbastlib https://github.com/ebastler/marbastlib

- Create Project - Install marbastlib https://github.com/ebastler/marbastlib

- mouse select from left, everything that is completely in selection area is included in selection - mouse select from right, everything that touches selection are included in selection - a place part - w add wire - r rotate - m move component - del delete - g grab, same as m but move wires with it - l/ctrl-l add label/global-label - q mark pins not connected - p add power net - v edit value - e edit properties - assign footprints - F8 update PCB from schematic

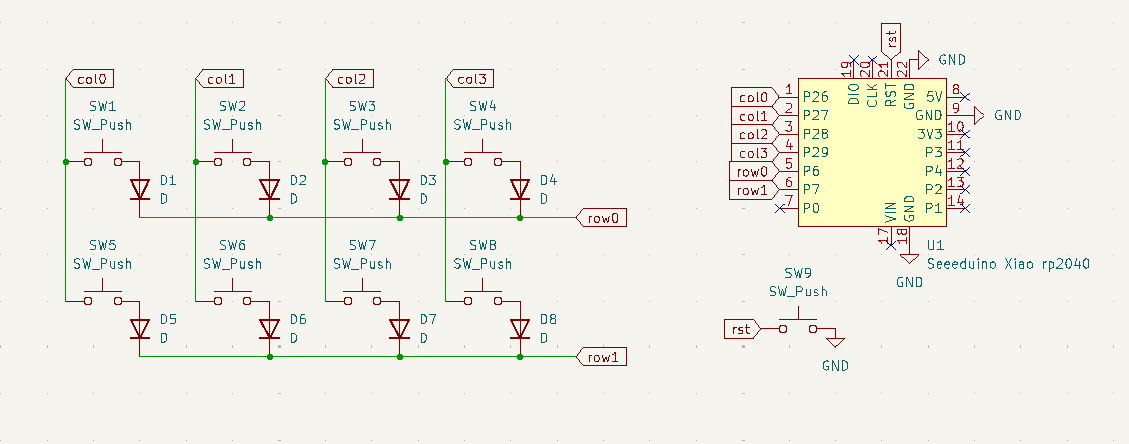

KiCad workshop, from the project README
From the project README

KiCad workshop bill of materials (BOM)

17 components, 3 distinct parts.

QtyPartRefs
8
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8
1
SW_Push
SW9
8
D
D1, D2, D3, D4, D5, D6, D7, D8

KiCad workshop design files

The KiCad project lives in the ThePurox/KiCad-workshop repository on GitHub; these links point at the commit this page was built from.

KiCad workshop: common questions

How big is the KiCad workshop PCB?

The KiCad workshop measures 114.3 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCad workshop?

17 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the KiCad workshop design files?

From the ThePurox/KiCad-workshop repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the KiCad workshop design in my own project?

The repository has no license, so all rights stay with ThePurox. Use it as a reference, and ask the author before reusing the design.
