Unicorne-3x6-top plate hybrid

Thunderbird2086·uniCorne·case/plate/3x6/unicorne-3x6-top-plate-hybrid/unicorne-3x6-top-plate-hybrid.kicad_pcb

Unicorne-3x6-top plate hybrid PCB layout, top view — open source board by Thunderbird2086
Simulate this board

About the Unicorne-3x6-top plate hybrid PCB

Unicorne-3x6-top plate hybrid is an open source PCB design by Thunderbird2086, published on GitHub under the MIT license. It is a 2-layer board measuring 113 × 66 mm, with 19 components from 2 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

universal Corne: self-made keyboard

uniCorne is inspired by corne, and here are the key features of uniCorne:

1. Controller Compatibility: uniCorne is specifically tailored to work with ProMicro-like controllers such as Nice!Nano, Elite-Pi, and Ble Micro Pro. This ensures seamless integration and optimal performance. 1. Hardware Handedness: Unlike many other keyboards, uniCorne supports hardware handedness for ProMicro-like RP2040 controller boards. This flexibility allows users to choose their preferred orientation without sacrificing functionality. 1. Nice!View Integration: uniCorne has been meticulously crafted to…

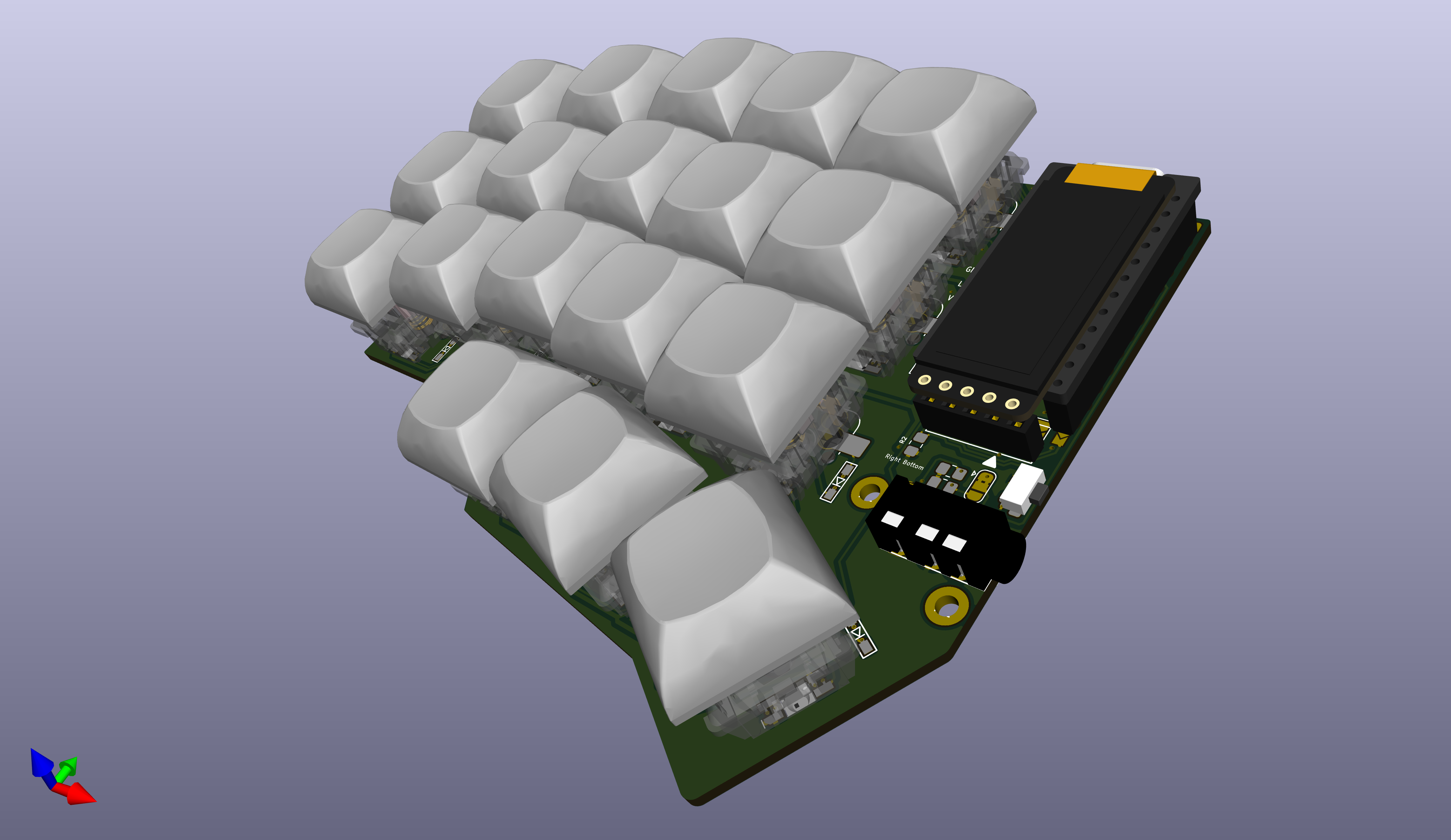

Unicorne-3x6-top plate hybrid, from the project README
From the project README

Unicorne-3x6-top plate hybrid bill of materials (BOM)

19 components, 2 distinct parts.

QtyPartRefs
4
MountingHole
H4, H5, H6, H7
15
SW_MX_HS
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +7

Unicorne-3x6-top plate hybrid design files

The KiCad project lives in the Thunderbird2086/uniCorne repository on GitHub; these links point at the commit this page was built from.

Unicorne-3x6-top plate hybrid: common questions

How big is the Unicorne-3x6-top plate hybrid PCB?

The Unicorne-3x6-top plate hybrid measures 113 × 66 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Unicorne-3x6-top plate hybrid?

19 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Unicorne-3x6-top plate hybrid design files?

From the Thunderbird2086/uniCorne repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Unicorne-3x6-top plate hybrid design in my own project?

Yes, under the terms of its MIT license, which Thunderbird2086 chose for the repository.
