VOID 3x5 Hybrid MX

Thunderbird2086·void·hybrid-mx/void-3x5-hybrid-mx.kicad_pcb

VOID 3x5 Hybrid MX PCB layout, top view — open source board by Thunderbird2086

About the VOID 3x5 Hybrid MX PCB

VOID 3x5 Hybrid MX is an open source PCB design by Thunderbird2086, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 140.5 × 112.5 mm, with 77 components from 18 distinct parts.

Other key parts include the nice!nano-ish. By type, the board carries 24 inductors, 19 switches, 18 diodes, 4 connectors, 4 LEDs and 4 resistors.

It belongs with the keyboards and power & battery designs in this gallery.

From the project

Another 3x5 Ergonomic Split Keyboard

The VOID keyboard is meticulously designed to offer an ergonomic typing experience with its compact 3x5 layout. It supports a variety of switch types, including CherryMX, Choc V1/V2, and a hybrid configuration.

Similar to the uniCorne, the VOID keyboard features controller compatibility, hardware handedness, and Nice!View integration. Additionally, for communication between each side in wired keyboards using PR2040/ProMicro, it uses a USB Type-C connector instead of TRRS to avoid short circuit issues that can damage MCUs.

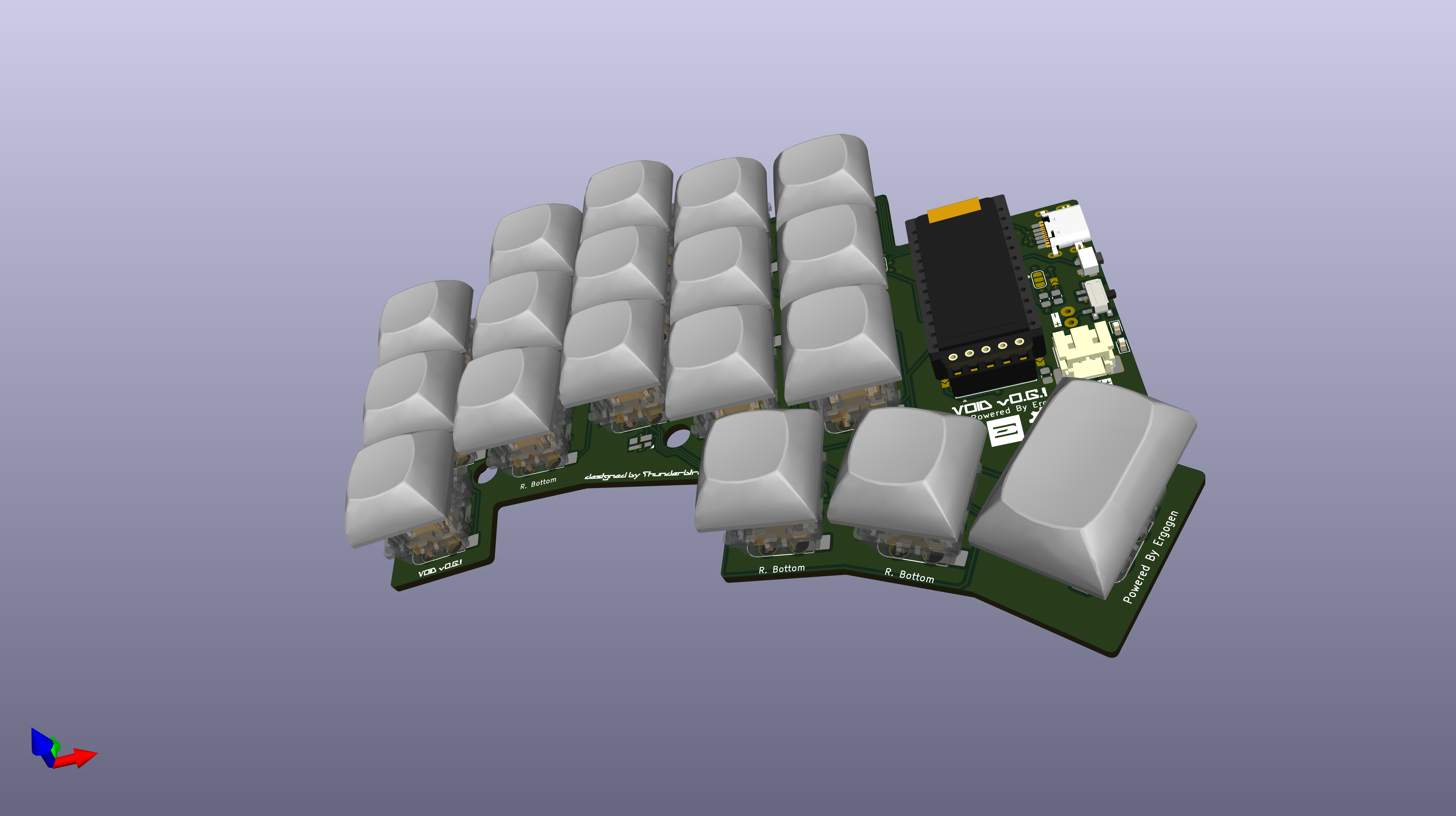

VOID 3x5 Hybrid MX, from the project README — From the project README

Main components on the VOID 3x5 Hybrid MX

VOID 3x5 Hybrid MX bill of materials (BOM)

77 components, 18 distinct parts.

Qty	Part	Footprint	Refs
1	nice!nano-ish	ProMicro-dn-rev-unrouted	MCU1
1	USB_C_Receptacle_PowerOnly_6P	USB-20C-F-6C16_rev	J1
1	Conn_01x02	JST_PH_S2B-PH-SM4-TB_1x02-1MP_P2.00mm_Horizontal_rev	J2
1	Conn_01x02	Pogopin_1x02_P2.54mm	J3
1	Conn_01x03	Pogopin_1x03_P2.54mm	J4
1	Nice!View	Nice!View_rev	DISP1
1	SMT 2X4X3.5MM Tactile Tact Push Button	SMT 2X4X3.5MM Tactile Tact Push Button rev	RSW1
15	SW_MX_HS	SW_MX_HS_1u_reversible	S1, S2, S3, S4, S5, S6, S7, S8 +7
3	SW_CHOC_HS	SW_choc_v1_v2_HS_1u_reversible	S16, S17, S18
1	SW_SPDT1	SW_SPDT_PCM12	SW_SPDT1
1	SW_SPDT2	SW_SPDT_PCM12	SW_SPDT2
2	CHRG	LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder	LED1, LED2
2	STDBY	LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder	LED3, LED4
18	D	D3_SMD_rev	D1, D2, D3, D4, D5, D6, D7, D8 +10
18	SK6812MINI-E	LED_SK6812MINI-E_rev	L1, L2, L3, L4, L5, L6, L7, L8 +10
6	SK6812MINI	LED_SK6812MINI_PLCC4_3.5x3.5mm_P1.75mm_rev_all	L19, L20, L21, L22, L23, L24
2	10k	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R1, R2
2	4.7k	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder_rev	R3, R4

VOID 3x5 Hybrid MX design files

The KiCad project lives in the Thunderbird2086/void repository on GitHub; these links point at the commit this page was built from.

Layouthybrid-mx/void-3x5-hybrid-mx.kicad_pcb
Schematichybrid-mx/void-3x5-hybrid-mx.kicad_sch

VOID 3x5 Hybrid MX: common questions

How big is the VOID 3x5 Hybrid MX PCB?

The VOID 3x5 Hybrid MX measures 140.5 × 112.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the VOID 3x5 Hybrid MX?

77 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the VOID 3x5 Hybrid MX design files?

From the Thunderbird2086/void repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the VOID 3x5 Hybrid MX design in my own project?

Yes, under the terms of its GPL-3.0 license, which Thunderbird2086 chose for the repository.
