HDMI2USB-numato opsis hardware
About the HDMI2USB-numato opsis hardware PCB
HDMI2USB-numato opsis hardware is an open source PCB design by timvideos, published on GitHub under the CC-BY-SA-4.0 license. It is a board measuring 170 × 170 mm, with 538 components from 130 distinct parts.
Other key parts include the MT41J128M16, CY7C68013A_100AC, W25Q128FVEIG, GBU15005-G and TPS54560. By type, the board carries 269 capacitors, 170 resistors, 39 connectors, 29 ICs, 14 diodes and 7 inductors.
From the project

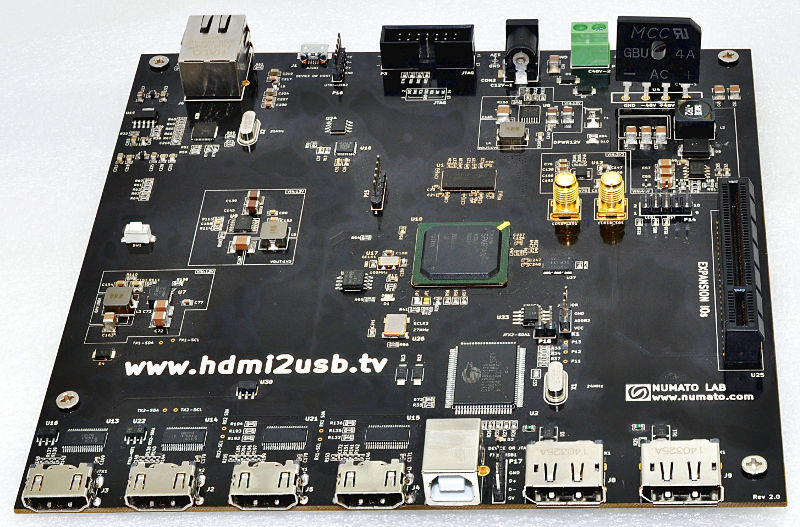

The Numato Opsis board is the first fully open source HDMI2USB board.
The Numato Opsis, the first open hardware for the HDMI2USB firmware, can now be ordered From Numato Labs
The Numato Opsis board is the first HDMI2USB production board developed in conjugation with the TimVideos.us project.
It's features include; 2 x HDMI input ports, 2 x HDMI output ports, DisplayPort input and output ports, 128Mbit DDR3-1600 ram, Gigabit Ethernet with MAC address EEPROM, Micro SD card, Cypress FX2 for USB device functionality, ULPI for USB OTG functionality, * Quad speed SPI flash.
Main components on the HDMI2USB-numato opsis hardware
HDMI2USB-numato opsis hardware bill of materials (BOM)
538 components, 130 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MT41J128M16 | BGA96-0.8 | U1 |
| 1 | CY7C68013A_100AC | TQFP-100_(CY7C68013A-100AXC) | U2 |
| 1 | W25Q128FVEIG | SO8E_N | U3 |
| 1 | GBU15005-G | GBU6B-BP | U4 |
| 1 | TPS54560 | TPS54560 | U6 |
| 1 | TPS53319 | DQP-22(tps53319) | U7 |
| 2 | TPS54625 | PDSO_G14(tps54625) | U8, U9 |
| 1 | XC6SLX45T | BGA_484_1mm | U10 |
| 1 | MICRO_SD | MicroSD | U11 |
| 1 | TPS51200 | SON_10(tps51200) | U12 |
| 4 | IP4776CZ38 | SSOP38_ip4776 | U13, U14, U15, U21 |
| 3 | ΜA78L00 | μA78L00 | U16, U22, U30 |
| 1 | FXO-HC536R | FXO-HC536R | U17 |
| 1 | USB3340 | QFN-32(USB3340) | U18 |
| 1 | MCP1825 | SOT223-5 | U19 |
| 1 | RTL8211E-VB | QFN48(RTL8211E) | U20 |
| 1 | 24AA02E48 | SO8E_N | U23 |
| 1 | BDXXGA5WEFJ_ | 8-HTSOP-J_(BD50GA5WEFJ-E2) | U24 |
| 1 | TIMVIDEOS-PCIE-8X | PCIe_98Pos | U25 |
| 1 | CB3LV-3I-27M0000 | CB3LV-3I | U26 |
Show 110 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | FXO-LC73 | FXO-LC73 | U27 |
| 2 | SMA_CON | SMAJACKRightAngled | U28, U29 |
| 1 | CRYSTAL | HC-49V | X1 |
| 1 | 50MHz | HC-49V | X2 |
| 2 | BARREL_JACK | BARREL_JACK | CON1, CON2 |
| 1 | USB_MICRO_B | MICRO_USB_B | J1 |
| 4 | HDMI | HDMI_TH | J2, J3, J4, J5 |
| 1 | RJ45(HFJ11-1GO1ERL) | RJ45_10P-10C | J6 |
| 1 | USB | USB_B | J7 |
| 2 | DISPLAY_PORT | Display_Port | J8, J9 |
| 1 | CONN_2 | ScrewTerm2 | P1 |
| 19 | CONN_1 | 1Pin_N | P2, P4, P5, P6, P7, P8, P9, P10 +11 |
| 1 | CONN_7X2 | JTAG | P3 |
| 1 | CONN_5X2 | PIN_ARRAY_5x2 | P14 |
| 3 | CONN_5 | PIN_ARRAY_5x1 | P15, P16, P17 |
| 1 | CONN_2 | PIN_ARRAY_2X1 | P18 |
| 1 | ATX_POWER_SUPPLY | 3x2PIN_MOLEX | P27 |
| 1 | eCONN_8 | pin_array_8x2 | P28 |
| 1 | P*** | MH-4MM | 1PIN |
| 1 | FUSE | SM2512 | F1 |
| 2 | FUSE | SM0603 | F2, F3 |
| 3 | CONN_3 | PIN_ARRAY_3X1 | K1, K2, K3 |
| 1 | SW_PUSH | Switch_SMD | SW1 |
| 2 | LED | LED-0805 | D1, D10 |
| 1 | LED | LED-0603 | D2 |
| 3 | DIODE | DO-214AC(SMA) | D3, D4, D11 |
| 1 | DIODE | B560C-SMC | D5 |
| 5 | DIODESCH | DO-214AC(SMA) | D6, D7, D8, D9, D14 |
| 2 | DIODESCH | DO214-AC | D12, D13 |
| 3 | INDUCTOR | SM0805 | L1, L6, L7 |
| 1 | 7.2uH | Power_Inductor | L2 |
| 1 | 2.2UH | IND202 | L3 |
| 2 | 1.5UH | IND202 | L4, L5 |
| 136 | 0.1uF | SM0402 | C1, C2, C3, C4, C5, C6, C7, C8 +128 |
| 43 | 0.1uF | SM0603 | C34, C35, C36, C37, C38, C39, C40, C41 +35 |
| 5 | 4.7uF | SM1210 | C45, C48, C51, C55, C56 |
| 2 | 4.7uF | SM0603 | C46, C77 |
| 2 | 0.01uF | SM0603 | C47, C49 |
| 1 | 2.2uF | SM1210 | C57 |
| 4 | 47uF | SM1210L | C59, C61, C268, C269 |
| 1 | 0.1uF | SM0603_Capa | C60 |
| 4 | 12pF | SM0603 | C62, C64, C235, C238 |
| 1 | 6.2nF | SM0603_Capa | C63 |
| 1 | 4.7uF | SM0603_Capa | C65 |
| 5 | 47uF | SM1210 | C67, C68, C69, C70, C71 |
| 4 | 22uF | SM1210 | C72, C73, C74, C75 |
| 9 | 10uF | SM0805 | C76, C81, C136, C138, C156, C159, C162, C166 +1 |
| 6 | 10uF | SM1210 | C78, C79, C134, C135, C139, C145 |
| 2 | 10uF | SM1206 | C133, C140 |
| 3 | 1uF | SM0603 | C137, C141, C148 |
| 2 | 8.2NF | SM0805 | C143, C144 |
| 1 | 0.001uF | SM0402 | C146 |
| 8 | 4.7uF | SM0805 | C147, C203, C210, C211, C212, C223, C224, C225 |
| 10 | 0.1uF | SM0805 | C150, C152, C153, C154, C217, C218, C227, C228 +2 |
| 1 | 1NF | SM0805 | C151 |
| 3 | 100uF | SM1210 | C157, C160, C163 |
| 4 | 47uF | SM1812 | C161, C164, C165, C167 |
| 4 | 1uF | SM0402 | C169, C170, C171, C179 |
| 3 | 0.33uF | SM0603 | C173, C177, C183 |
| 2 | 15PF | SM0603 | C189, C244 |
| 1 | 1uF | SM0805 | C204 |
| 1 | 27pF | SM0603 | C216 |
| 2 | R | SM0603 | R1, R53 |
| 5 | 49.9E | RES_NET4 | R2, R3, R8, R9, R10 |
| 2 | 100E | SM0402 | R4, R11 |
| 3 | 4K7 | SM0402 | R5, R6, R7 |
| 1 | 240R | SM0402 | R12 |
| 1 | 8.06K | SM0603 | R13 |
| 11 | 100R | SM0603 | R14, R23, R24, R26, R76, R81, R82, R83 +3 |
| 5 | 330R | SM0603 | R15, R27, R28, R89, R92 |
| 2 | 50R | SM0603 | R16, R17 |
| 12 | 10K | SM0603 | R18, R19, R20, R21, R32, R35, R36, R40 +4 |
| 5 | 1K | SM0603 | R22, R54, R55, R97, R119 |
| 26 | 100K | SM0603 | R25, R44, R47, R60, R61, R62, R63, R64 +18 |
| 1 | 4.7K | SM0603_Resistor | R29 |
| 1 | 20K5%- 0.05W | SM0603 | R30 |
| 2 | 1.5K | SM0603 | R31, R50 |
| 3 | 2.2K | SM0603 | R33, R34, R94 |
| 16 | 4.7K | SM0603 | R37, R48, R49, R51, R52, R56, R57, R58 +8 |
| 1 | 39K | SM0603 | R38 |
| 1 | 27K | SM0603 | R39 |
| 3 | 1M | SM0603 | R42, R45, R117 |
| 2 | 5M | SM0603 | R43, R46 |
| 17 | 50R | SM0402 | R68, R124, R125, R128, R131, R145, R147, R150 +9 |
| 1 | 2.49K | SM0603 | R69 |
| 2 | 390R | SM0603 | R70, R73 |
| 1 | 442K | SM0603_Capa | R77 |
| 1 | 92.3K | SM0603_Capa | R78 |
| 1 | 243K | SM0603_Capa | R79 |
| 2 | 4K7 | SM0603 | R80, R86 |
| 1 | 240E | SM0603 | R85 |
| 1 | 30.1K | SM0603 | R87 |
| 1 | 143K | SM0603_Resistor | R90 |
| 1 | 10.2K | SM0603_Resistor | R91 |
| 1 | 200K | SM0603 | R95 |
| 1 | 86.6K | SM0603 | R96 |
| 1 | 205K | SM0603 | R98 |
| 1 | ? | SM0603 | R99 |
| 2 | 10K | SM0402 | R101, R105 |
| 1 | 46.4K | SM0603 | R110 |
| 1 | 21.5K | SM0603 | R112 |
| 2 | 22.1K | SM0603 | R113, R115 |
| 1 | 12.7K | SM0603 | R114 |
| 8 | 47K | SM0603 | R129, R130, R133, R134, R135, R136, R193, R194 |
| 4 | 1.5K | SM0402 | R137, R138, R139, R140 |
| 4 | 49K | SM0402 | R141, R142, R196, R197 |
| 4 | 27K | SM0402 | R143, R144, R146, R199 |
| 2 | 15K | SM0402 | R148, R149 |
| 1 | 4.7K | SM0402 | R151 |
| 2 | 1K | SM0402 | R153, R205 |
HDMI2USB-numato opsis hardware design files
The KiCad project lives in the timvideos/HDMI2USB-numato-opsis-hardware repository on GitHub; these links point at the commit this page was built from.
- Layoutboard/HDMI2USB.kicad_pcb
HDMI2USB-numato opsis hardware: common questions
How big is the HDMI2USB-numato opsis hardware PCB?
The HDMI2USB-numato opsis hardware measures 170 × 170 mm and is 1.6002 mm thick.
How many components are on the HDMI2USB-numato opsis hardware?
538 components, from 130 distinct parts. The full bill of materials is listed on this page.
Where can I download the HDMI2USB-numato opsis hardware design files?
From the timvideos/HDMI2USB-numato-opsis-hardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the HDMI2USB-numato opsis hardware design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which timvideos chose for the repository.
