Usb pmod
About the Usb pmod PCB
Usb pmod is an open source PCB design by tomverbeure, published on GitHub. It is a 4-layer board measuring 38.1 × 18.3 mm, with 14 components from 12 distinct parts.

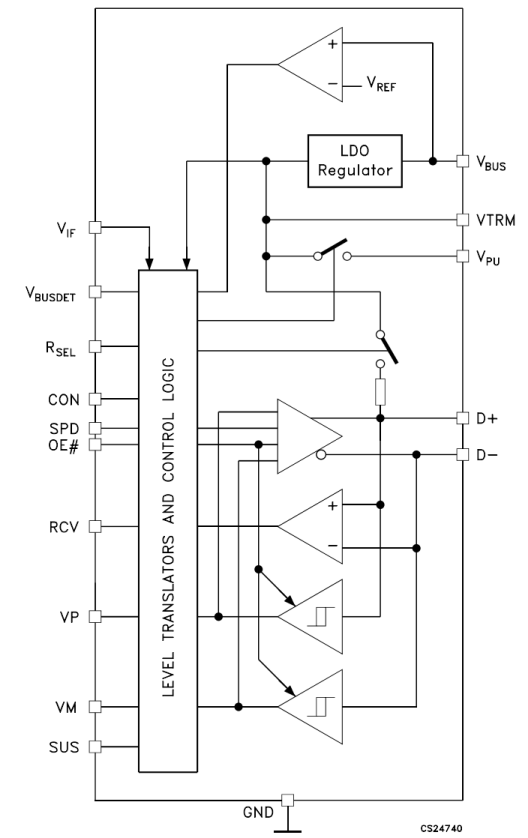

Other key parts include the STUSB03E. By type, the board carries 5 connectors, 5 resistors, 3 capacitors and 1 IC.
From the project
It's common to implement Full Speed or Low Speed (FS/LS) USB host or device controllers on an FPGA by just using their digital IOs, configured as 3V3 LVCMOS.
It's common to implement Full Speed or Low Speed (FS/LS) USB host or device controllers on an FPGA by just using their digital IOs, configured as 3V3 LVCMOS.
A good example is the TinyFPGA BX board, which comes by default with a hardware-only USB device controller that's used to program new bitstreams into flash.
Another one is Fomu, another FPGA development board that's about as tiny as the USB Type-A connector itself.
Main components on the Usb pmod
Usb pmod bill of materials (BOM)
14 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STUSB03E | QFN-16-1EP_3x3mm_P0.5mm_EP1.9x1.9mm | U1 |
| 1 | PMOD A | PMOD_Male | J1 |
| 1 | DEV DEBUG | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 1 | VBUS | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | AU-Y1007 | ASSMANN_AU-Y1007 | J4 |
| 1 | USB_A | USB_A_Stewart_SS-52100-001_Horizontal | J5 |
| 1 | 0.1uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C1 |
| 1 | 4.7uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C2 |
| 1 | 1uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C3 |
| 2 | 20 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1, R2 |
| 1 | 1.5K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R3 |
| 2 | 15K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R4, R5 |
Usb pmod design files
The KiCad project lives in the tomverbeure/usb_pmod repository on GitHub; these links point at the commit this page was built from.
Usb pmod: common questions
How big is the Usb pmod PCB?
The Usb pmod measures 38.1 × 18.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Usb pmod?
14 components, from 12 distinct parts. The full bill of materials is listed on this page.
Where can I download the Usb pmod design files?
From the tomverbeure/usb_pmod repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Usb pmod design in my own project?
The repository has no license, so all rights stay with tomverbeure. Use it as a reference, and ask the author before reusing the design.
