Rockmd

tor1kk·rockmd·hardware/metal_detector_prototype.kicad_pcb

Rockmd PCB layout, top view — open source STM32 board by tor1kk
Simulate this board

About the Rockmd PCB

Rockmd is an open source STM32 PCB design by tor1kk, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 50 × 86 mm, with 77 components from 27 distinct parts.

Its main chip is the STM32H723ZGTx, from the STM32 family. Other key parts include the MCP1700x-330xxTT and 8002. By type, the board carries 30 capacitors, 13 test points, 10 resistors, 8 inductors, 7 connectors and 3 ICs.

From the project

STM32 Based VLF Metal Detector Experiment

The information about the phase shift and the power of the received signal is displayed on the screen. In this project, LVGL was used to create the graphical interface.

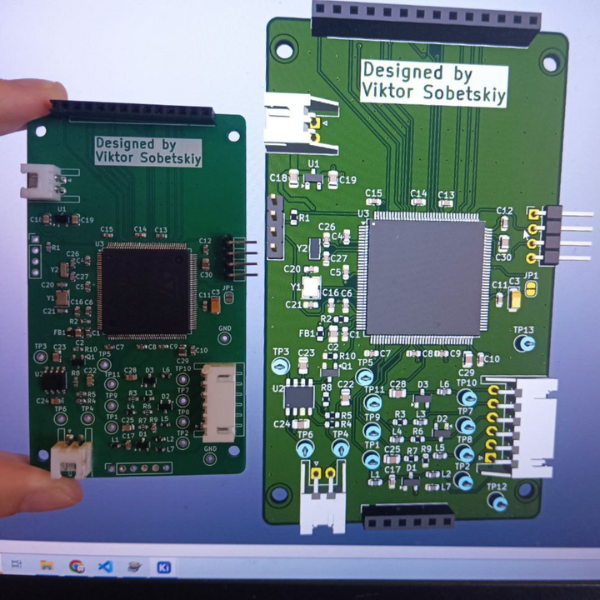

Rockmd, from the project README
From the project README

Main components on the Rockmd

MCP1700x-330xxTT8002STM32H723ZGTx

Rockmd bill of materials (BOM)

77 components, 27 distinct parts.

QtyPartRefs
1
MCP1700x-330xxTT
U1
1
8002
U2
1
STM32H723ZGTx
U3
1
AO3402
Q1
1
Crystal_GND24
Y1
1
32.768kHz
Y2
1
Conn_01x14_Socket
J1
1
Conn_01x02_Socket
J2
1
Conn_01x06_Socket
J3
1
Conn_01x02_Socket
J4
1
Conn_01x04_Socket
J5
1
Conn_01x04_Pin
J6
1
Conn_01x04_Pin
J7
13
TestPoint
TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8 +5
3
MMBD7000
D1, D2, D3
1
600R_100MHz
FB1
7
15uH
L1, L2, L3, L4, L5, L6, L7
14
100nF
C1, C4, C5, C6, C7, C8, C9, C10 +6
8
1uF
C2, C18, C19, C22, C23, C24, C25, C28
1
4.7uF
C3
Show 7 more
QtyPartRefs
1
47nF
C17
4
12pF
C20, C21, C26, C27
2
2.2uF
C29, C30
2
10K
R1, R5
4
100R
R2, R3, R6, R7
3
47K
R4, R8, R10
1
2.2R
R9

Rockmd design files

The KiCad project lives in the tor1kk/rockmd repository on GitHub; these links point at the commit this page was built from.

Rockmd: common questions

What microcontroller does the Rockmd use?

The Rockmd is built around the STM32H723ZGTx, from the STM32 family.

How big is the Rockmd PCB?

The Rockmd measures 50 × 86 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Rockmd?

77 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rockmd design files?

From the tor1kk/rockmd repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rockmd design in my own project?

Yes, under the terms of its GPL-3.0 license, which tor1kk chose for the repository.

Can I test firmware for the Rockmd without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
