UnOrhtoDox Plate
About the UnOrhtoDox Plate PCB
UnOrhtoDox Plate is an open source PCB design by TweetyDaBird, published on GitHub. It is a 2-layer board measuring 88.2 × 100 mm, with 21 components from 3 distinct parts.
It belongs with the keyboards designs in this gallery.
From the project
A 'simple' 17-20 key Numpad

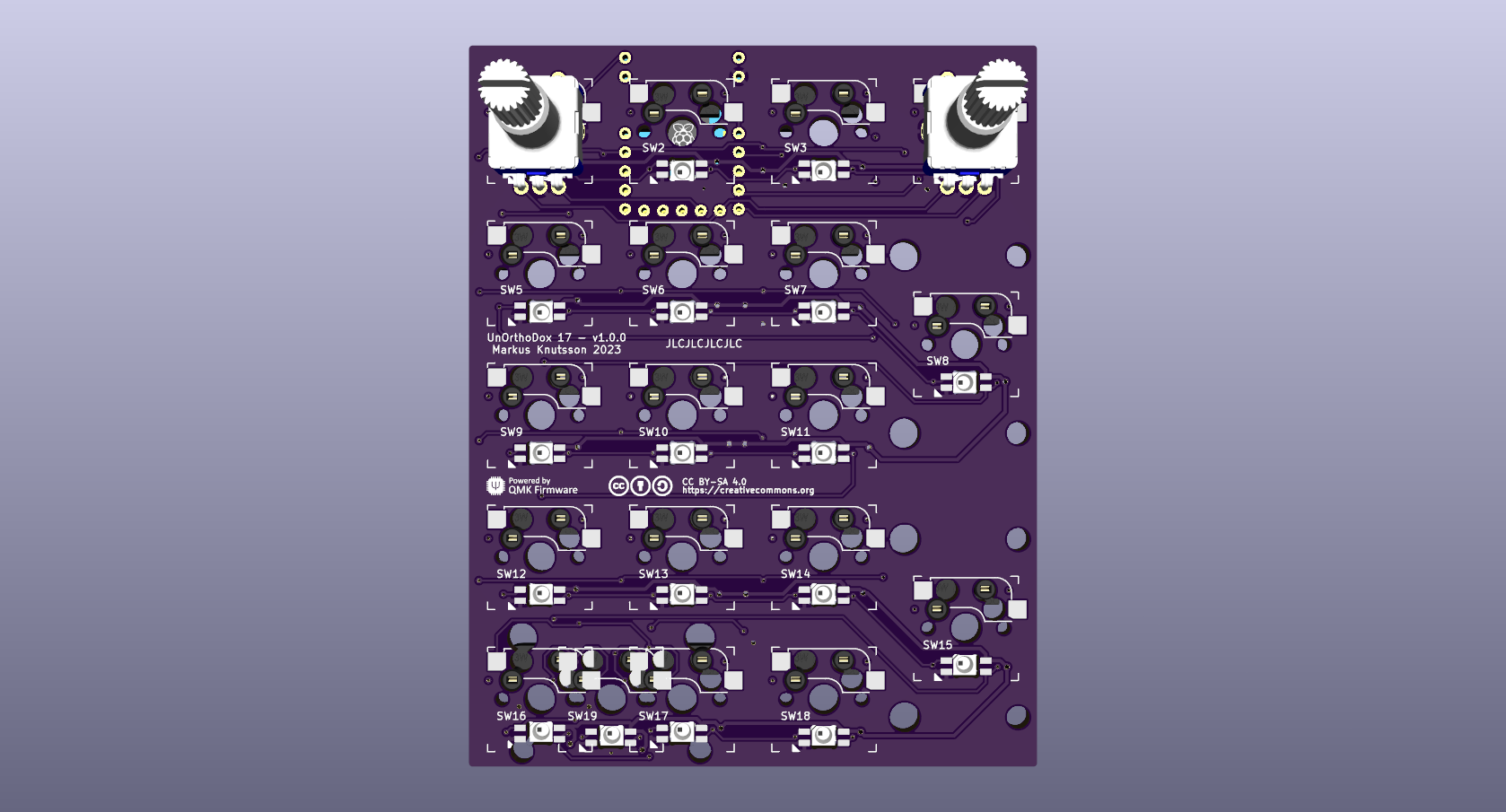

The name comes from the slightly unortodox placement of the controller straddling the hot-swap socket, with not all pins soldered, and the fact that it can be built as a 20-key ortholinear macro pad.
- Full Sandwich Case design - Low cost/Simple to build - Powerful and Flexible MCU - Compatible with QMK/Vial and ZMK firmware - Reversible for SouthPaw's - Dual Rotary Encoders - Per-Key RGB - Build instructions are printed on the backplate for an easy build.
UnOrhtoDox Plate bill of materials (BOM)
21 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | Spacer_PCB | Spacer Plate hole | H1, H2, H3, H4 |
| 3 | Stabilizer_2u_MX | Stabilizer_Cherry_MX_2.00u_PLate_1_2 | ST1, ST2, ST3 |
| 14 | SW_MX_HotSwap | SW_MX_Plate_Placeholder_nodrill_NOBORDER | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW9 +6 |
UnOrhtoDox Plate design files
The KiCad project lives in the TweetyDaBird/UnOrthoDox repository on GitHub; these links point at the commit this page was built from.
UnOrhtoDox Plate: common questions
How big is the UnOrhtoDox Plate PCB?
The UnOrhtoDox Plate measures 88.2 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the UnOrhtoDox Plate?
21 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the UnOrhtoDox Plate design files?
From the TweetyDaBird/UnOrthoDox repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the UnOrhtoDox Plate design in my own project?
The repository has no license, so all rights stay with TweetyDaBird. Use it as a reference, and ask the author before reusing the design.
