About the Plate bottom PCB

Plate bottom is an open source PCB design by vlkv, published on GitHub under the MIT license. It is a 2-layer board measuring 179.7 × 122.8 mm, with 24 components from 2 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

The Avalanche keyboard is an ergonomic split keyboard with 4x6 (or 3x6 if you break off the 'digits' row) column staggered keys, 5 thumb keys, 1 additional key for the pinky (break off-able too) and 2 additional keys for the index finger (64 keys total).

The Avalanche keyboard is an ergonomic split keyboard with 4x6 (or 3x6 if you break off the 'digits' row) column staggered keys, 5 thumb keys, 1 additional key for the pinky (break off-able too) and 2 additional keys for the index finger (64 keys total).

Avalanche design was inspired by a number of great keyboards. You may read more about it in my very first reddit post.

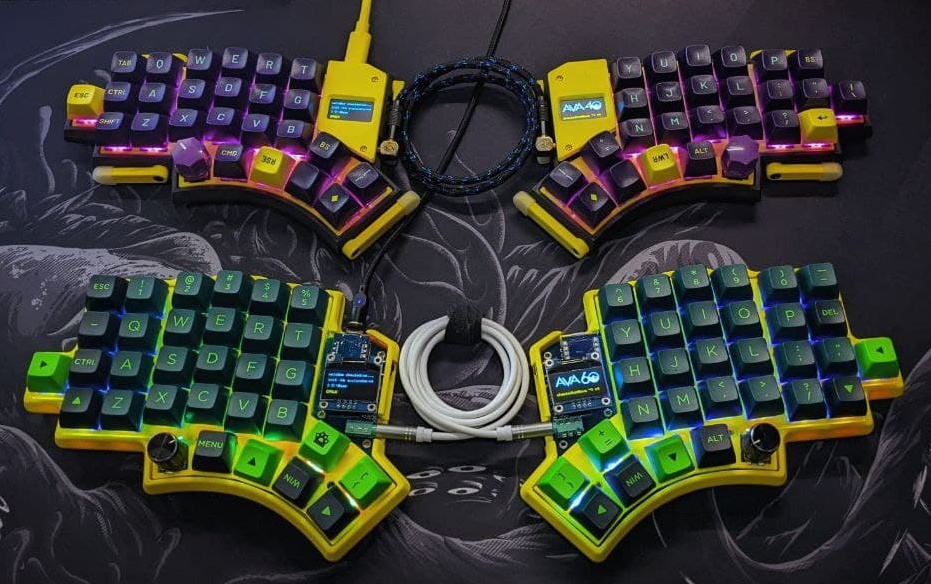

Plate bottom, from the project README
From the project README

Plate bottom bill of materials (BOM)

24 components, 2 distinct parts.

QtyPartRefs
12
CaseHole
HM2, HM3, HM4, HM5, HM6, HM7, HM8, HM9 +4
12
SW_Push
SW1, SW4, SW6, SW7, SW10, SW12, SW19, SW20 +4

Plate bottom design files

The KiCad project lives in the vlkv/avalanche repository on GitHub; these links point at the commit this page was built from.

Plate bottom: common questions

How big is the Plate bottom PCB?

The Plate bottom measures 179.7 × 122.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Plate bottom?

24 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Plate bottom design files?

From the vlkv/avalanche repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Plate bottom design in my own project?

Yes, under the terms of its MIT license, which vlkv chose for the repository.
