A10c mfcd
About the A10c mfcd PCB

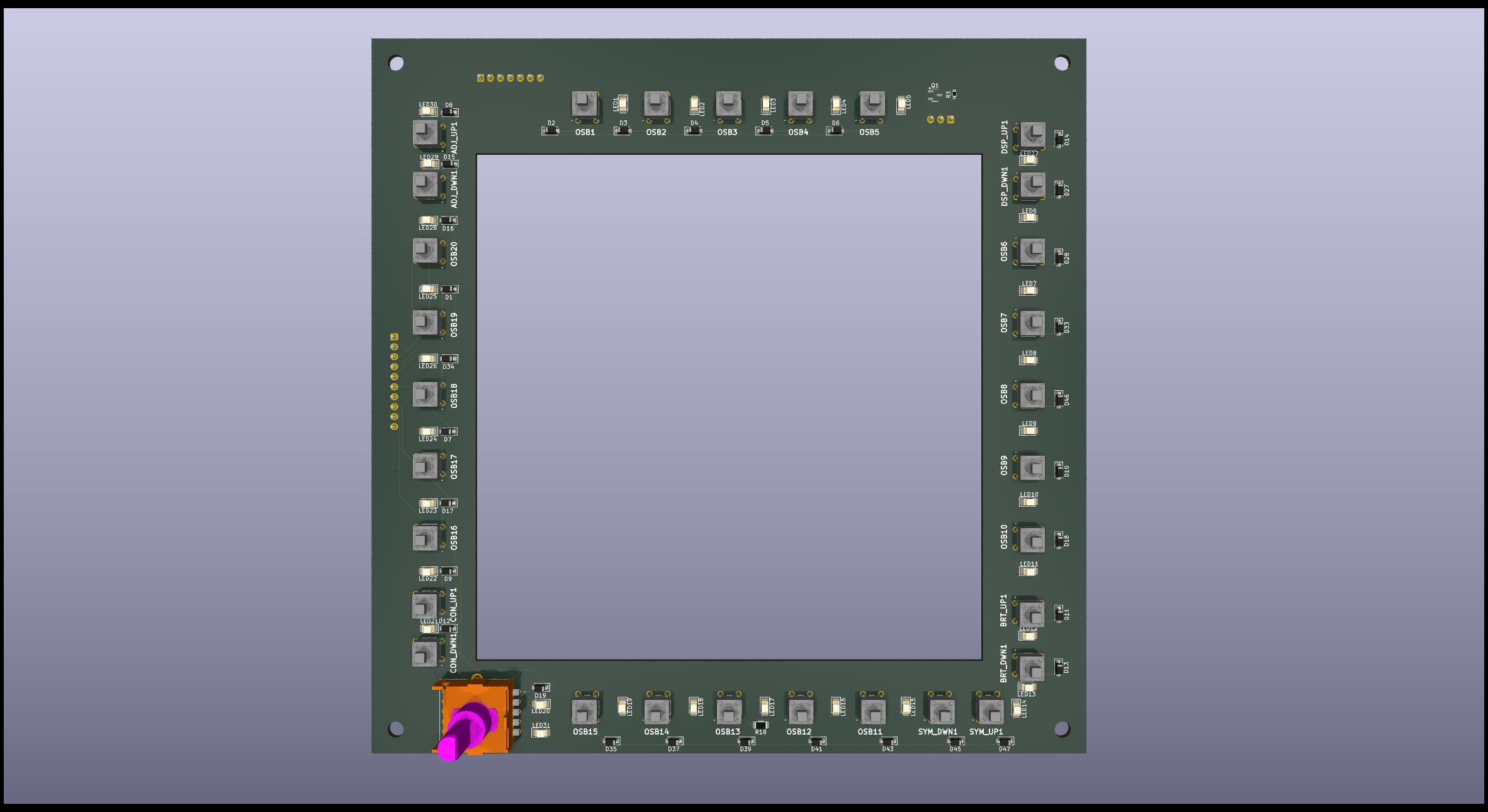

A10c mfcd is an open source PCB design by w3z315, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 179 × 179 mm, with 129 components from 10 distinct parts.
By type, the board carries 32 resistors, 31 LEDs, 31 diodes, 3 connectors, 1 transistor and 1 switch.
From the project
A collection of my DIY PCBs, including their code, for DCS:World's A10CII
A10c mfcd bill of materials (BOM)
129 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BC817-25LT1G | SOT-23-3 | Q1 |
| 1 | Conn_LED | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J1 |
| 1 | Conn_ROWS | JST_XH_B10B-XH-A_1x10_P2.50mm_Vertical | J2 |
| 1 | Conn_COLS | JST_XH_B7B-XH-A_1x07_P2.50mm_Vertical | J3 |
| 30 | Switch | 18259671 | ADJ_DWN1, ADJ_UP1, BRT_DWN1, BRT_UP1, CON_DWN1, CON_UP1, DSP_DWN1, DSP_UP1 +22 |
| 1 | SRBV131502 | SRBV131502 | S1 |
| 31 | HSMG-C150 1206 | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +23 |
| 31 | D_Small | D_SOD-123 | D1, D2, D3, D4, D5, D6, D7, D8 +23 |
| 1 | 1000 | R_0603_1608Metric | R1 |
| 31 | 270 | R_1206_3216Metric | R2, R3, R4, R5, R6, R7, R8, R9 +23 |
A10c mfcd design files
The KiCad project lives in the w3z315/a10c-simpit-pcbs repository on GitHub; these links point at the commit this page was built from.
- Layoutmfcd/pcb/a10c_mfcd.kicad_pcb
- Schematicmfcd/pcb/a10c_mfcd.kicad_sch
A10c mfcd: common questions
How big is the A10c mfcd PCB?
The A10c mfcd measures 179 × 179 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the A10c mfcd?
129 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the A10c mfcd design files?
From the w3z315/a10c-simpit-pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the A10c mfcd design in my own project?
Yes, under the terms of its GPL-3.0 license, which w3z315 chose for the repository.
