Ufc panel
About the Ufc panel PCB
Ufc panel is an open source PCB design by w3z315, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 252 × 58 mm, with 101 components from 9 distinct parts.
By type, the board carries 35 switches, 35 diodes, 15 resistors, 14 LEDs, 1 transistor and 1 connector.
From the project
A collection of my DIY PCBs, including their code, for DCS:World's A10CII
Welcome to the repository for my very first PCB design, crafted specifically for an A-10C cockpit simulator project. This project has been a labor of love, a lot of learning, and yes, a few missteps - but that's the beauty of DIY!

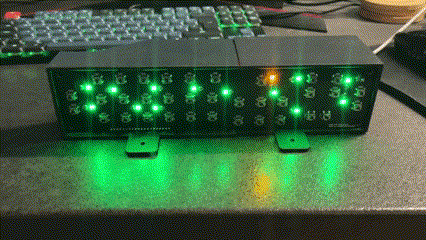

Check out the demo video to see the A10C UFC in action:
This project is licensed under the GNU GPLv3 License - see the LICENSE file for details.
Ufc panel bill of materials (BOM)
101 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BC817 | SOT-23 | Q1 |
| 1 | Conn_2x10 Socket | PinHeader_1x20_P2.54mm_Vertical | J1 |
| 35 | Switch | SW_PUSH_6mm_H4.3mm_INT_CONNECTED | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +27 |
| 13 | HSMG-C150 | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +5 |
| 1 | HSMY-C150 | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | LED15 |
| 35 | D_Small | D_SOD-123 | D1, D2, D3, D4, D5, D6, D7, D8 +27 |
| 13 | 270 | R_1206_3216Metric | R1, R2, R3, R4, R5, R6, R7, R8 +5 |
| 1 | 300 | R_1206_3216Metric | R15 |
| 1 | 3300 | R_0603_1608Metric | R16 |
Ufc panel design files
The KiCad project lives in the w3z315/a10c-simpit-pcbs repository on GitHub; these links point at the commit this page was built from.
- Layoutufc/pcb/ufc_panel.kicad_pcb
- Schematicufc/pcb/ufc_panel.kicad_sch
Ufc panel: common questions
How big is the Ufc panel PCB?
The Ufc panel measures 252 × 58 mm, has 4 copper layers and is 4.69 mm thick.
How many components are on the Ufc panel?
101 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ufc panel design files?
From the w3z315/a10c-simpit-pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Ufc panel design in my own project?
Yes, under the terms of its GPL-3.0 license, which w3z315 chose for the repository.
