Voltex Pico
About the Voltex Pico PCB
Voltex Pico is an open source PCB design by whowechina, published on GitHub. It is a 2-layer board measuring 275 × 153 mm, with 92 components from 20 distinct parts.
Other key parts include the PiPico, ADG708BRUZ, TMAG5273, LM4040DBZ-3 and LP5907MFX-4.2. By type, the board carries 21 diodes, 20 capacitors, 6 ICs, 6 resistors and 4 connectors.
From the project

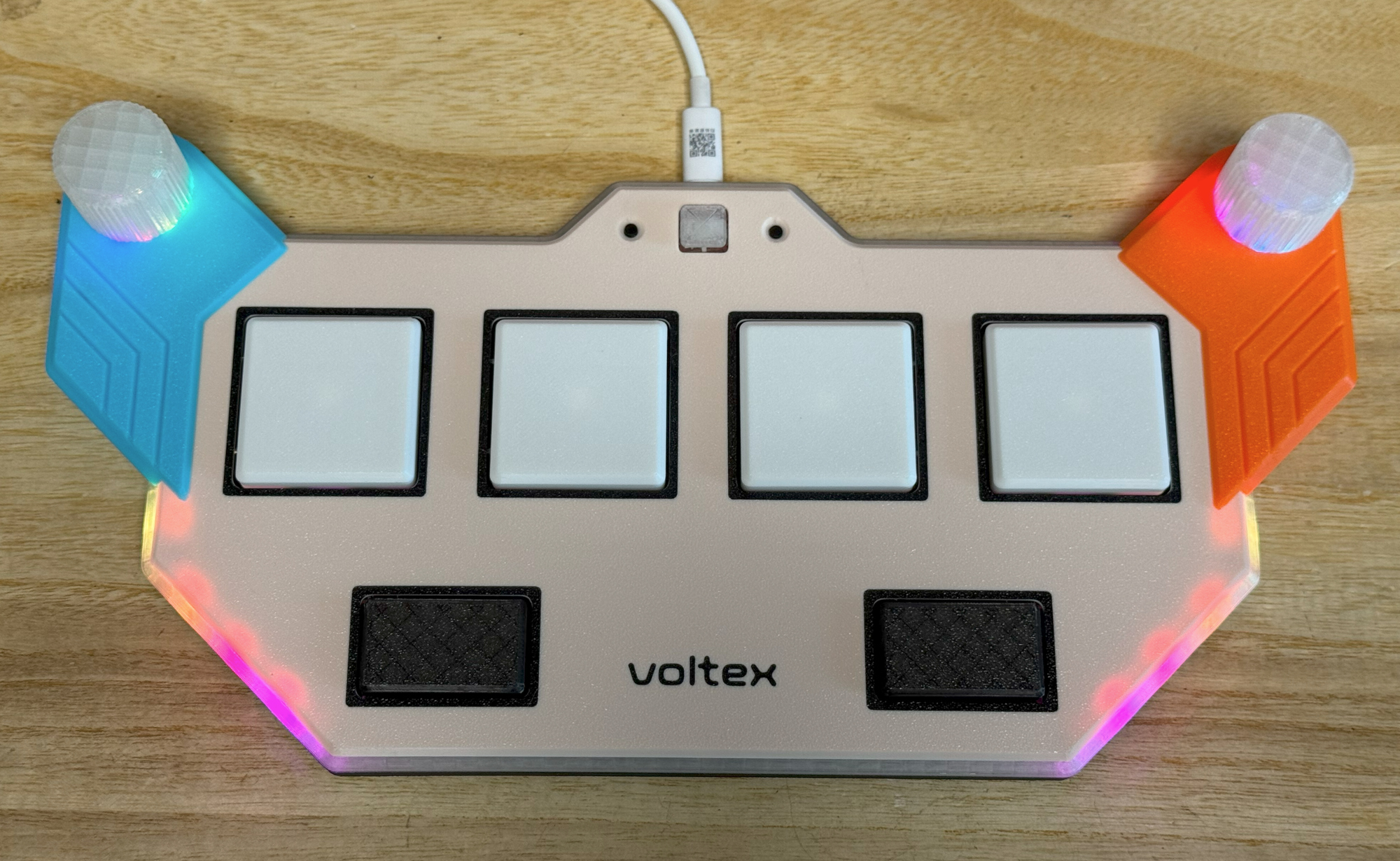

Sound Voltex Style Compact Controller
Features: It's ultra thin but closely replicates the feel of the arcade controller. Supports both Hall Effect (magnetic) switches and regular mechanical switches. Utilizing my new innovation: stabilizer mechanics for big and thin buttons. Hall Effect knobs. Full HID light support. Command line for configurations. * All source files open.
Thanks to many respected guys/companies who made their tools or materials free or open source (KiCad, OnShape, InkScape, Raspberry things).
Main components on the Voltex Pico
Voltex Pico bill of materials (BOM)
92 components, 20 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PiPico | RPi_Pico_SMD_Pins | U1 |
| 1 | ADG708BRUZ | TSSOP-16_4.4x5mm_P0.65mm | U2 |
| 2 | TMAG5273 | TSOT-23-6_HandSoldering | U3, U4 |
| 1 | LM4040DBZ-3 | SOT-23-FAT | U6 |
| 1 | LP5907MFX-4.2 | SOT-23-5 | U7 |
| 4 | Conn_01x06_Socket | FPC6P1.0mm | J1, J2, J3, J4 |
| 6 | SW_DIP_x01 | Choc_HE | B1, B2, B3, B4, B5, B6 |
| 1 | SW_DIP_x01 | Choc | B7 |
| 2 | SW_DIP_x01 | SW_SKHHANA010 | B8, B9 |
| 8 | WS2812B_Unified | WS2812B-4020 | DL1, DL2, DL3, DL4, DR1, DR2, DR3, DR4 |
| 10 | WS2812B_Unified | WS2812B-4020_UP | DL5, DL6, DL7, DL8, DL9, DR5, DR6, DR7 +2 |
| 6 | SS49E_SOT23 | SOT-23-FAT | H1, H2, H3, H4, H5, H6 |
| 1 | U262-161N-4BVC11 | HRO-TYPE-C-31-M-12-Assembly | USB1 |
| 1 | 3.3V | D_SOD-123F | Z1 |
| 20 | WS2812B_Unified | WS2812B-2835_EMBED | D1, D2, D3, D5, D6, D7, D8, D9 +12 |
| 1 | WS2812B_Unified | WS2812B-2835 | D4 |
| 20 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +12 |
| 4 | 5K1 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3, R4 |
| 1 | 2K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5 |
| 1 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R6 |
Voltex Pico design files
The KiCad project lives in the whowechina/voltex_pico repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/pico/voltex_pico.kicad_pcb
- SchematicPCB/pico/voltex_pico.kicad_sch
Voltex Pico: common questions
How big is the Voltex Pico PCB?
The Voltex Pico measures 275 × 153 mm, has 2 copper layers and is 1.7 mm thick.
How many components are on the Voltex Pico?
92 components, from 20 distinct parts. The full bill of materials is listed on this page.
Where can I download the Voltex Pico design files?
From the whowechina/voltex_pico repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Voltex Pico design in my own project?
The repository has no license, so all rights stay with whowechina. Use it as a reference, and ask the author before reusing the design.
