Swoon

willpuckett·Swoon

Swoon PCB layout, top view — open source board by willpuckett

About the Swoon PCB

Swoon is an open source PCB design by willpuckett, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 109 × 86.9 mm, with 112 components from 6 distinct parts.

Other key parts include the MY-LR44-02. By type, the board carries 74 connectors, 34 diodes, 2 ICs and 2 switches.

It belongs with the keyboards designs in this gallery.

From the project

A flippable 34 key Ferris Sweep derivative with Xiao

- Utilise Seeed Xiao—it's cuter - Experiment with parts consignment for PCBA of hotswaps - Choose a battery that can be easily changed by users who do not solder (LIR1254) - Explore using CI/CD for board variants, case, and top plate generation - Locate each half's components on its respective top side for more affordable assembly and lower overall height

A flippable variant [flip] for hand-soldering, like the original half-swept. Flip is also the most cost conscious variant—about $7.60 to get 5 of the boards produced, enough for 2 full keyboads and a nice... coaster?

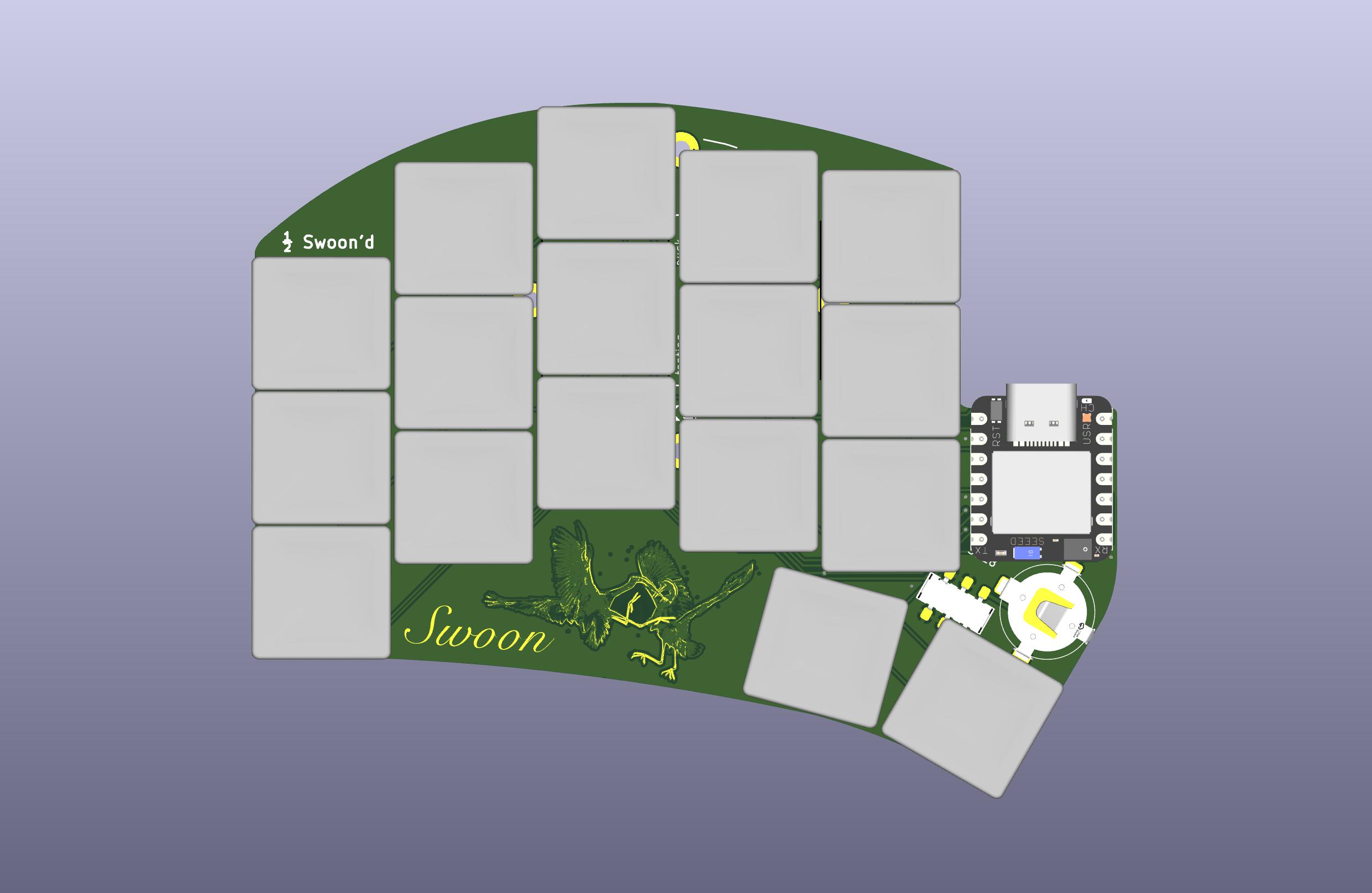

Swoon, from the project README
From the project README

Main components on the Swoon

MY-LR44-02

Swoon bill of materials (BOM)

112 components, 6 distinct parts.

QtyPartRefs
2
MY-LR44-02
U2, U3
68
3305-0-15-80-47-27-10-0
J1, J2, J3, J4, J5, J6, J7, J8 +60
4
310-13-107-41-001000
J69, J70, J71, J72
2
0906-2-15-20-75-14-11-0
Mill Max 0906-2-15-20-75-14-11-0
J73, J74
2
MST22D18G2 125
SW18, SW19
34
CD4148WS(0805C)
CD4148WS
D1, D2, D3, D4, D5, D6, D7, D8 +26

Swoon design files

The KiCad project lives in the willpuckett/Swoon repository on GitHub; these links point at the commit this page was built from.

Swoon: common questions

How big is the Swoon PCB?

The Swoon measures 109 × 86.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Swoon?

112 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Swoon design files?

From the willpuckett/Swoon repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Swoon design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
