72-pin-SIMM-KiCAD-Template
About the 72-pin-SIMM-KiCAD-Template PCB
72-pin-SIMM-KiCAD-Template is an open source PCB design by wiretap-retro, published on GitHub. It is a 2-layer board measuring 108 × 31.8 mm, with 17 components from 3 distinct parts.
Other key parts include the 72p-SIMM and 16Mx4-FPM. By type, the board carries 9 ICs and 8 capacitors.
From the project

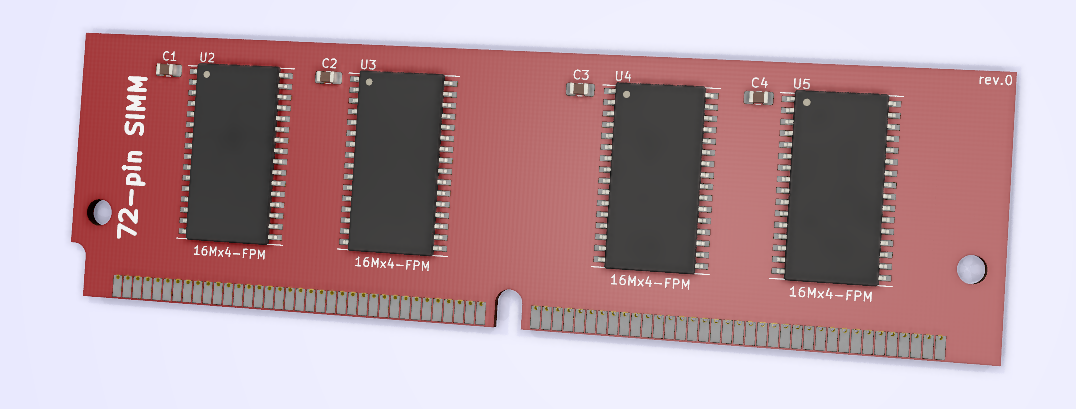

A board outline and pad connections for 72-pin SIMM memory.
Main components on the 72-pin-SIMM-KiCAD-Template
72-pin-SIMM-KiCAD-Template bill of materials (BOM)
17 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 72p-SIMM | 72p-SIMM | U1 |
| 8 | 16Mx4-FPM | TSOP-II-32_21.0x10.2mm_P1.27mm | U2, U3, U4, U5, U6, U7, U8, U9 |
| 8 | C_Small | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 |
72-pin-SIMM-KiCAD-Template design files
The KiCad project lives in the wiretap-retro/72-pin-SIMM-KiCAD-Template repository on GitHub; these links point at the commit this page was built from.
72-pin-SIMM-KiCAD-Template: common questions
How big is the 72-pin-SIMM-KiCAD-Template PCB?
The 72-pin-SIMM-KiCAD-Template measures 108 × 31.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 72-pin-SIMM-KiCAD-Template?
17 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the 72-pin-SIMM-KiCAD-Template design files?
From the wiretap-retro/72-pin-SIMM-KiCAD-Template repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the 72-pin-SIMM-KiCAD-Template design in my own project?
The repository has no license, so all rights stay with wiretap-retro. Use it as a reference, and ask the author before reusing the design.
