AMD-K7-FreeSpeed-Pro-Clone
About the AMD-K7-FreeSpeed-Pro-Clone PCB
AMD-K7-FreeSpeed-Pro-Clone is an open source PCB design by wiretap-retro, published on GitHub. It is a 2-layer board measuring 64 × 46.5 mm, with 28 components from 7 distinct parts.
By type, the board carries 21 resistors, 3 diodes, 2 connectors and 2 switches.
From the project

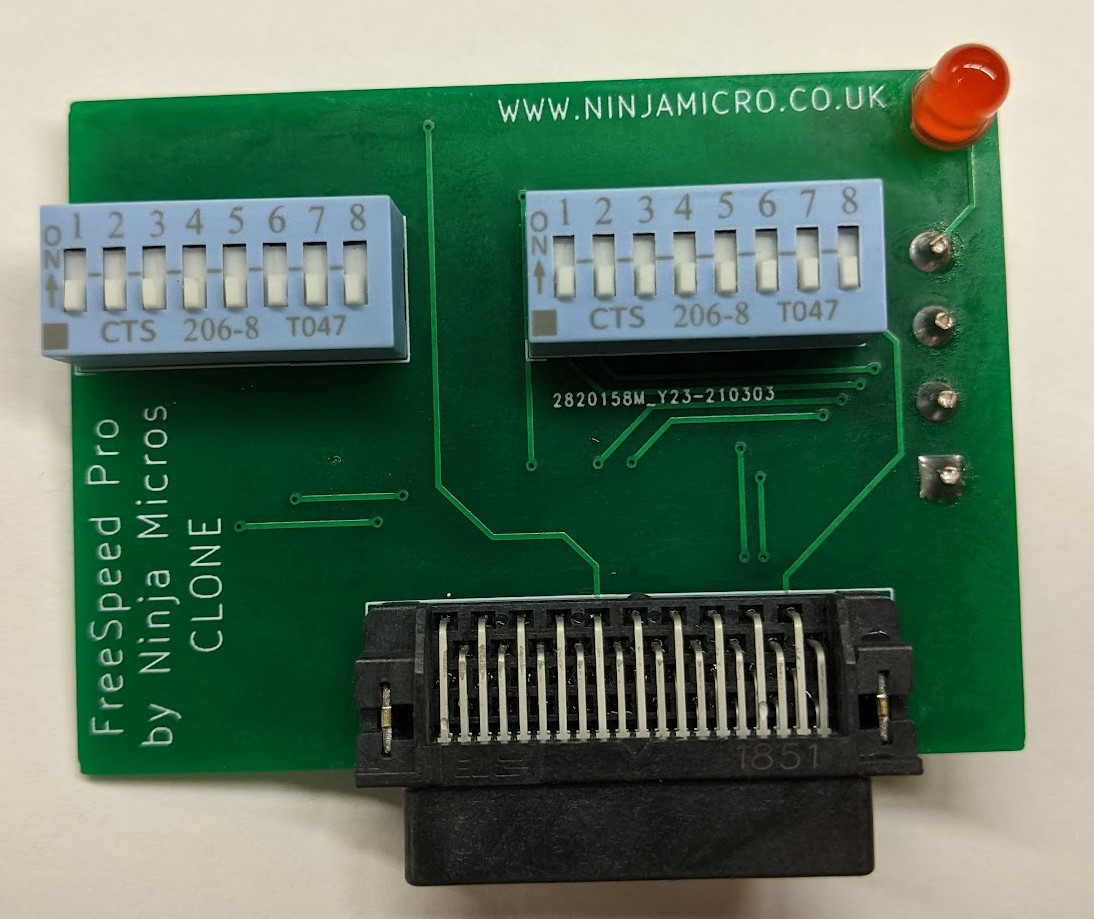

This device attaches to the AMD K7 debug port and provides for overclocking. It is a clone of the FreeSpeed Pro by Ninja Micros.
AMD-K7-FreeSpeed-Pro-Clone bill of materials (BOM)
28 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 350211-1 Conn_01x04 TE Connectivity | SHDR4W166P0X508_1X4_2326X828X1066P | J1 |
| 1 | 1734037-4 TE Connectivity | 17340374 | J2 |
| 2 | 206-8ST SW_DIP_x08 CTS Electronic Components | SW_DIP_SPSTx08_Slide_9.78x22.5mm_W7.62mm_P2.54mm | SW1, SW2 |
| 2 | FDLL4148 LL4148 ON Semiconductor | D_MiniMELF_Handsoldering | D1, D2 |
| 1 | LTL-4221N LED Lite-On | LED_D3.0mm | D3 |
| 13 | RK73B2BTTDD221J 220 KOA Speer | R_1206_3216Metric_Pad1.42x1.75mm_HandSolder | R1, R2, R3, R4, R5, R6, R7, R8 +5 |
| 8 | RK73B2BTTDD121J 120 KOA Speer | R_1206_3216Metric_Pad1.42x1.75mm_HandSolder | R14, R15, R16, R17, R18, R19, R20, R21 |
AMD-K7-FreeSpeed-Pro-Clone design files
The KiCad project lives in the wiretap-retro/AMD-K7-FreeSpeed-Pro-Clone repository on GitHub; these links point at the commit this page was built from.
AMD-K7-FreeSpeed-Pro-Clone: common questions
How big is the AMD-K7-FreeSpeed-Pro-Clone PCB?
The AMD-K7-FreeSpeed-Pro-Clone measures 64 × 46.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AMD-K7-FreeSpeed-Pro-Clone?
28 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the AMD-K7-FreeSpeed-Pro-Clone design files?
From the wiretap-retro/AMD-K7-FreeSpeed-Pro-Clone repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the AMD-K7-FreeSpeed-Pro-Clone design in my own project?
The repository has no license, so all rights stay with wiretap-retro. Use it as a reference, and ask the author before reusing the design.
