8X8-SRAM-Mixed-Signal-Design
About the 8X8-SRAM-Mixed-Signal-Design PCB
8X8-SRAM-Mixed-Signal-Design is an open source PCB design by Zathura1sanky, published on GitHub. It is a board, with 7 components from 3 distinct parts.
Other key parts include the PORT.
From the project
This repository includes an eSim and NgVeri-implemented mixed-signal architecture for an 8X8 SRAM, as well as further implementation of bit addressable RAM.
• NgSpice: It is an Open Source Software for Spice Simulations. For more detailsRefer here
• Makerchip: It is an Online Web Browser IDE for Verilog/System-verilog/TL-Verilog Simulation. Refer here
• Verilator: It is a tool which converts Verilog code to C++ objects. Refer here
• Refer to the netlist of the 6T SRAM Cell here: Netlist

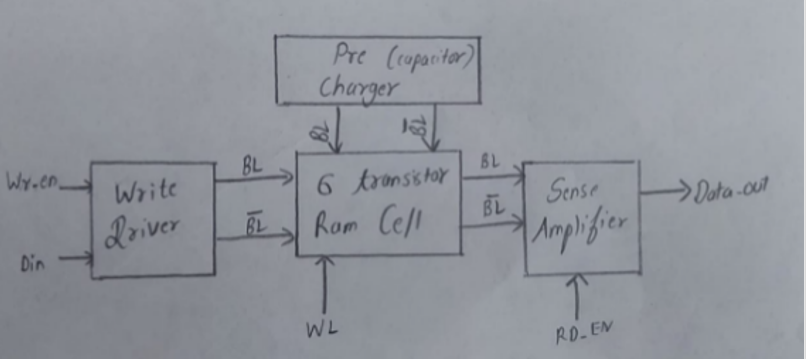

• Refer to the netlist of the 1-Bit SRAM here: Netlist
Main components on the 8X8-SRAM-Mixed-Signal-Design
8X8-SRAM-Mixed-Signal-Design bill of materials (BOM)
7 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PORT | U1 | |
| 4 | sky130_fd_pr__nfet_01v8_lvt | SC1, SC3, SC5, SC6 | |
| 2 | sky130_fd_pr__pfet_01v8_lvt | SC2, SC4 |
8X8-SRAM-Mixed-Signal-Design design files
The KiCad project lives in the Zathura1sanky/8X8-SRAM-Mixed-Signal-Design repository on GitHub; these links point at the commit this page was built from.
- NetlistSRAM_CELL_TEST/SRAM_Cell.net
8X8-SRAM-Mixed-Signal-Design: common questions
How many components are on the 8X8-SRAM-Mixed-Signal-Design?
7 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the 8X8-SRAM-Mixed-Signal-Design design files?
From the Zathura1sanky/8X8-SRAM-Mixed-Signal-Design repository on GitHub, which has a netlist; the links under Design files point to each one.
Can I use the 8X8-SRAM-Mixed-Signal-Design design in my own project?
The repository has no license, so all rights stay with Zathura1sanky. Use it as a reference, and ask the author before reusing the design.
