1 2og lightbar
About the 1 2og lightbar PCB
1 2og lightbar is an open source PCB design by zhol0777, published on GitHub. It is a 2-layer board measuring 61.7 × 18.6 mm, with 35 components from 4 distinct parts.
By type, the board carries 16 diodes, 16 capacitors, 2 resistors and 1 connector.
From the project

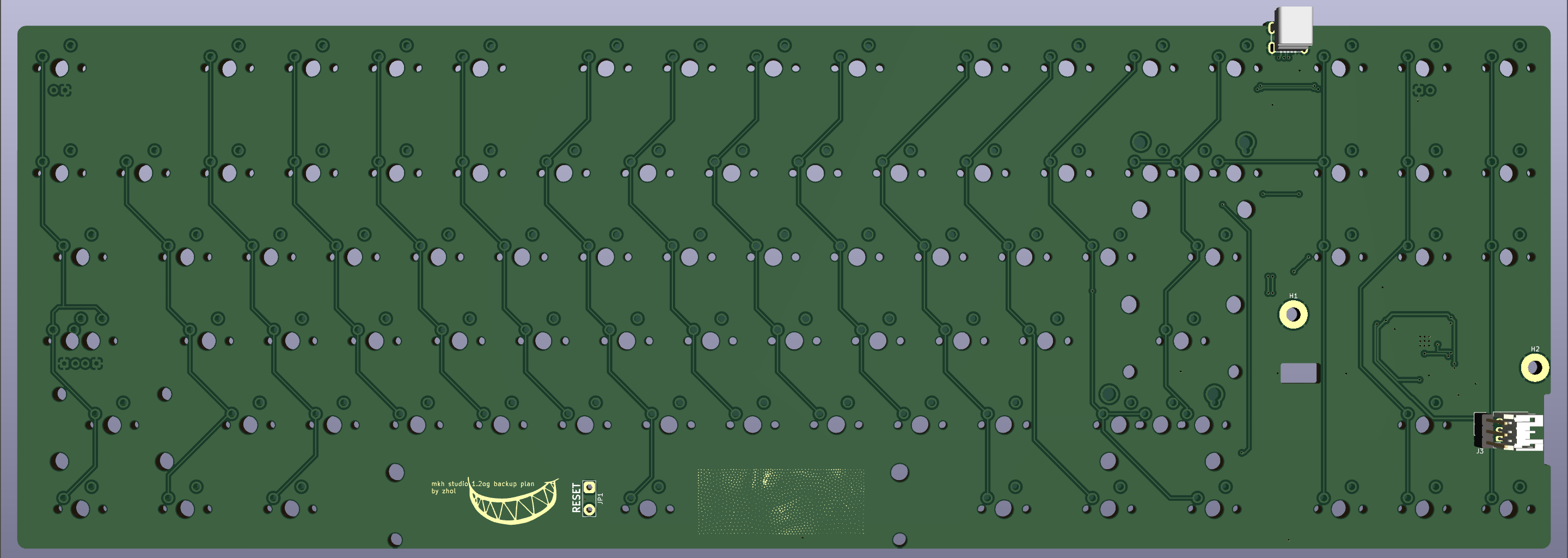

unfinished attempt to re-create pcb and lightbar for matrix 1.2og.
unfinished attempt to re-create pcb and lightbar for matrix 1.2og.
this has been designed by using pcb edge cuts and plate file that were provided courtesy of astro of matrixlab here. without it, re-creating the PCB would be a more maddening and expensive experience. it has 19.02mm x 19.02mm spacing (mostly).
indicator LEDs on scroll lock and caps lock. JST headers are for s3b ph 3 pin, since that's what it looks like from watching youtube build videos.
1 2og lightbar bill of materials (BOM)
35 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X03_SHIELDED Conn_01x03_Shielded | Molex_Pico-EZmate_78171-0003_1x03-1MP_P1.20mm_Vertical | J2 |
| 16 | SK6812_EC15 | LED_SK6812_EC15_1.5x1.5mm | D1, D2, D3, D4, D5, D6, D7, D8 +8 |
| 16 | 100NF 100nF | C_0402_1005Metric | C1, C2, C3, C4, C5, C6, C7, C8 +8 |
| 2 | 500 | R_0805_2012Metric | R1, R2 |
1 2og lightbar design files
The KiCad project lives in the zhol0777/1.2og_pcb_clone repository on GitHub; these links point at the commit this page was built from.
1 2og lightbar: common questions
How big is the 1 2og lightbar PCB?
The 1 2og lightbar measures 61.7 × 18.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 1 2og lightbar?
35 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 1 2og lightbar design files?
From the zhol0777/1.2og_pcb_clone repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 1 2og lightbar design in my own project?
The repository has no license, so all rights stay with zhol0777. Use it as a reference, and ask the author before reusing the design.
