Xiaomi2Ali-Smart-Plug-WIFI-Module layout, top view — open source board by znhocn

About the Xiaomi2Ali-Smart-Plug-WIFI-Module

Xiaomi2Ali-Smart-Plug-WIFI-Module is an open source PCB design by znhocn, published on GitHub. It is a 2-layer board measuring 18.6 × 45 mm, with 7 components from 6 distinct parts.

By type, the board carries 2 connectors, 2 diodes, 2 resistors and 1 switch.

It belongs with the iot & wireless designs in this gallery.

From the project

Xiaomi Smart Plug WiFi Module to Ali 86 Smart Plug Adapter board

Xiaomi Smart Plug WiFi Module to Ali 86 Smart Plug Adapter board

此项目是把从米家智能插座基础版里拆卸下来的 WiFi 模块转换成可供阿里智能插座-86型墙壁插座使用的模块。

使用小米的 WiFi 模块替换原有阿里智能的 WiFi 模块，实现使用米家APP控制插座，并且支持小爱同学控制。

使用 Rev.B 生产的 PCB 需要自己在通孔焊盘上划一刀再掰开，有必要还可以用锉刀再打磨一下断裂处。

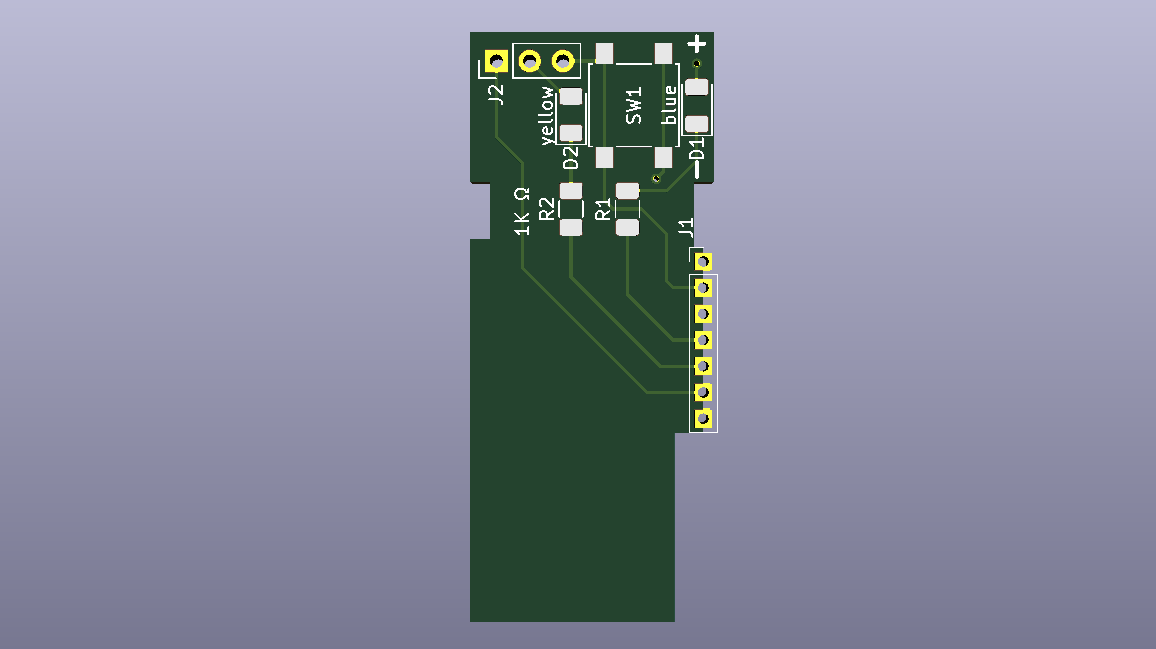

Xiaomi2Ali-Smart-Plug-WIFI-Module, from the project README
From the project README

Xiaomi2Ali-Smart-Plug-WIFI-Module bill of materials (BOM)

7 components, 6 distinct parts.

QtyPartRefs
1
Conn_01x07
J1
1
Conn_01x03
J2
1
SW_Push
SW1
1
LED_blue
D1
1
LED_yellow
D2
2
1K
R1, R2

Xiaomi2Ali-Smart-Plug-WIFI-Module design files

The KiCad project lives in the znhocn/xiaomi2ali-smart-plug-wifi-module repository on GitHub; these links point at the commit this page was built from.

Xiaomi2Ali-Smart-Plug-WIFI-Module: common questions

How big is the Xiaomi2Ali-Smart-Plug-WIFI-Module?

The Xiaomi2Ali-Smart-Plug-WIFI-Module measures 18.6 × 45 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Xiaomi2Ali-Smart-Plug-WIFI-Module?

7 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Xiaomi2Ali-Smart-Plug-WIFI-Module design files?

From the znhocn/xiaomi2ali-smart-plug-wifi-module repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Xiaomi2Ali-Smart-Plug-WIFI-Module design in my own project?

The repository has no license, so all rights stay with znhocn. Use it as a reference, and ask the author before reusing the design.
