Simple robot

1-rafael-1·simple-robot·misc/KiCad/simple-robot/simple-robot.kicad_pcb

Simple robot PCB layout, top view — open source board by 1-rafael-1

About the Simple robot PCB

Simple robot is an open source PCB design by 1-rafael-1, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 100 mm, with 67 components from 39 distinct parts.

Other key parts include the CD4049UB. By type, the board carries 26 capacitors, 17 connectors, 11 resistors, 2 diodes, 1 IC and 1 switch.

It belongs with the robotics & motion, sensors and displays & leds designs in this gallery.

From the project

A not-too-simple tracked robot with autonomous navigation and sensor-driven obstacle avoidance, written in Rust with Embassy. v2 reached the limits of its hardware platform; development continues in a new repository.

A not-too-simple tracked robot with autonomous navigation and sensor-driven obstacle avoidance, written in Rust with Embassy. v2 reached the limits of its hardware platform; development continues in the follow-up explorer-robot repository.

This started out as a hobby project for my 10-year-old son, who wanted me to build a robot for him. The thing started as a rather simple machine (v1) and then I got a little carried away. Check out the v1-robot navigating autonomously, download the demo video here: Autonomous Operation.

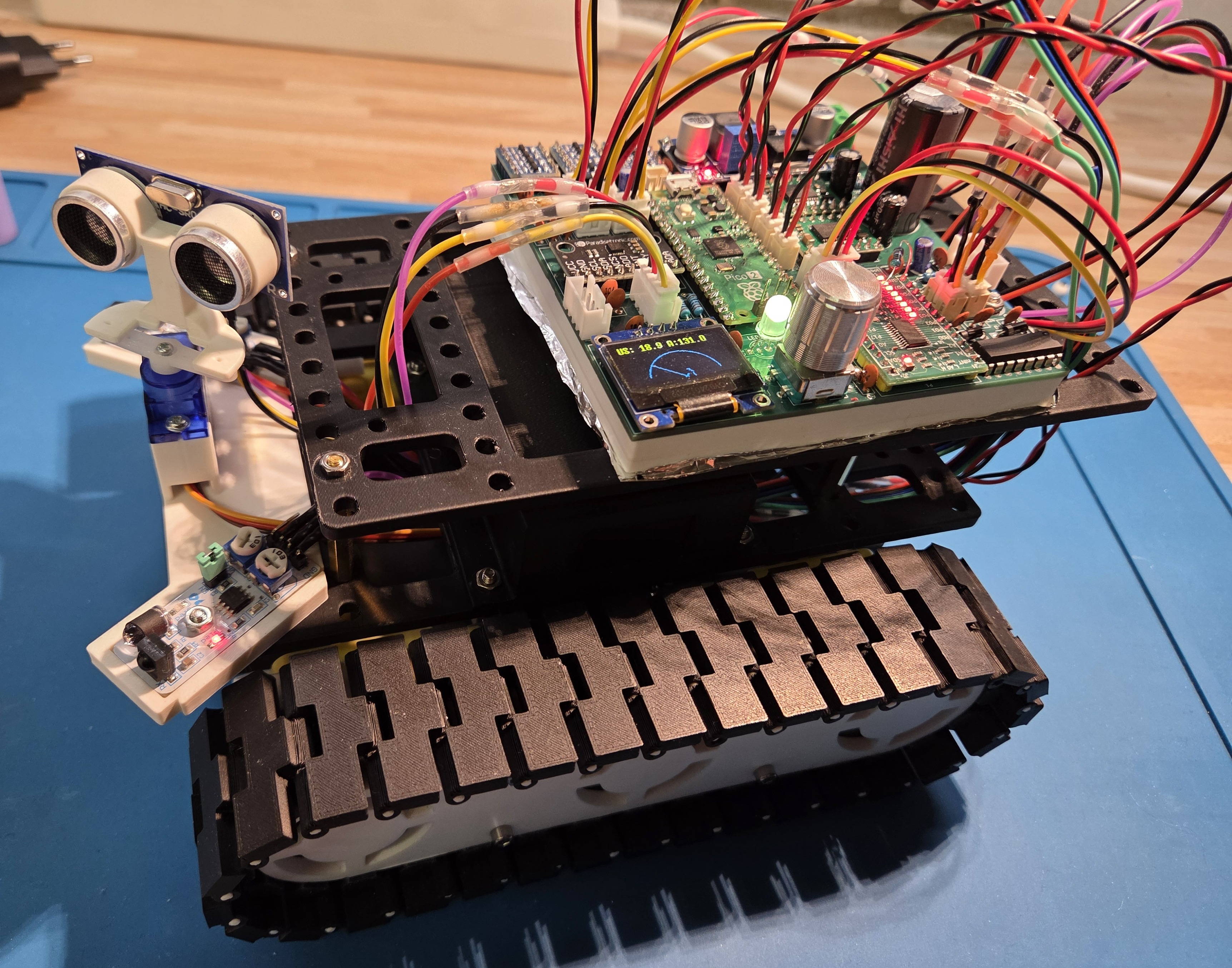

Simple robot, from the project README
From the project README

Main components on the Simple robot

CD4049UB

Simple robot bill of materials (BOM)

67 components, 39 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CD4049UB
U2
1
MotLA
J1
1
MotLB
J2
1
JST03 Servo
J3
1
MotRA
J4
1
MotRB
J5
1
ENC_LF
J6
1
ENC_LR
J7
1
ENC_RF
J8
1
ENC_RR
J9
1
SCREW_TERMINAL_2_P5.00MM
Screw_Terminal_2_P5.00mm
J10
1
JSTHCSR04
J11
1
IR_RF
J12
1
IR_LF
J13
1
JST_GV
J14
1
JST RF_Logic
J15
1
JST RF_PW
J16
1
Port Expander
P1
1
LM2596 Module
B1
1
~
I1
Show 19 more
QtyPartRefs
3
Level Shifter
LS_1, LS_2, LS_3
1
LeftTrack
MD1
1
RightTrack
MD2
1
~
OLED1
1
RotaryEncoder_Switch
SW1
1
LED_5MM_RGB_KCOM_RKGB
LED_5mm_RGB_Kcom_RKGB
LED1
2
1N5819
D1, D3
2
220UF
220uF
C1, C7
21
100NF_CERAMIC
100nF_Ceramic
C2, C3, C4, C5, C6, C8, C9, C10 +13
1
10UF_10V
10uF_10V
C17
1
4700UF_16V
4700uF_16V
C18
1
10UF_16V
10uF_16V
C25
1
3K3
R1
2
47OHM
47ohm
R2, R3
2
20K
20k
R4, R7
2
1k
R5, R6
1
10K
10k
R8
1
330OHM
330ohm
R9
2
220OHM
220ohm
R10, R11

Simple robot design files

The KiCad project lives in the 1-rafael-1/simple-robot repository on GitHub; these links point at the commit this page was built from.

Simple robot: common questions

How big is the Simple robot PCB?

The Simple robot measures 100 × 100 mm, has 4 copper layers and is 1.6002 mm thick.

How many components are on the Simple robot?

67 components, from 39 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Simple robot design files?

From the 1-rafael-1/simple-robot repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Simple robot design in my own project?

Yes, under the terms of its MIT license, which 1-rafael-1 chose for the repository.
