RGB LED controller

42CrMo4·RGB_LED_controller

RGB LED controller PCB layout, top view — open source AVR/Arduino board by 42CrMo4

About the RGB LED controller PCB

RGB LED controller is an open source AVR/Arduino PCB design by 42CrMo4, published on GitHub. It is a 2-layer board measuring 35.5 × 15 mm, with 16 components from 9 distinct parts.

Its main chip is the ATTINY814-SS, from the AVR/Arduino family. By type, the board carries 8 resistors, 3 transistors, 2 connectors, 2 capacitors and 1 IC.

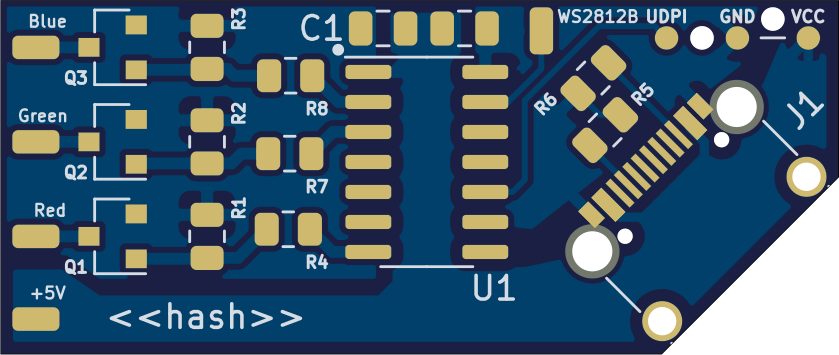

RGB LED controller, from the project README
From the project README

Main components on the RGB LED controller

ATTINY814-SS

RGB LED controller bill of materials (BOM)

16 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATTINY814-SS
ATtiny814-SS
U1
3
A2SHB
a2shb
Q1, Q2, Q3
1
HRO_TYPE-C-31-M-12
J1
1
UDPI-connector
J2
1
10NF
10nF
C1
1
100nF / 0.1uF
C2
3
300K
300k
R1, R2, R3
3
100
R4, R7, R8
2
5.1K
5.1k
R5, R6

RGB LED controller design files

The KiCad project lives in the 42CrMo4/RGB_LED_controller repository on GitHub; these links point at the commit this page was built from.

RGB LED controller: common questions

What microcontroller does the RGB LED controller use?

The RGB LED controller is built around the ATTINY814-SS, from the AVR/Arduino family.

How big is the RGB LED controller PCB?

The RGB LED controller measures 35.5 × 15 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RGB LED controller?

16 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RGB LED controller design files?

From the 42CrMo4/RGB_LED_controller repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the RGB LED controller design in my own project?

The repository has no license, so all rights stay with 42CrMo4. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RGB LED controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
