PROTO MEZZANINE V1.4

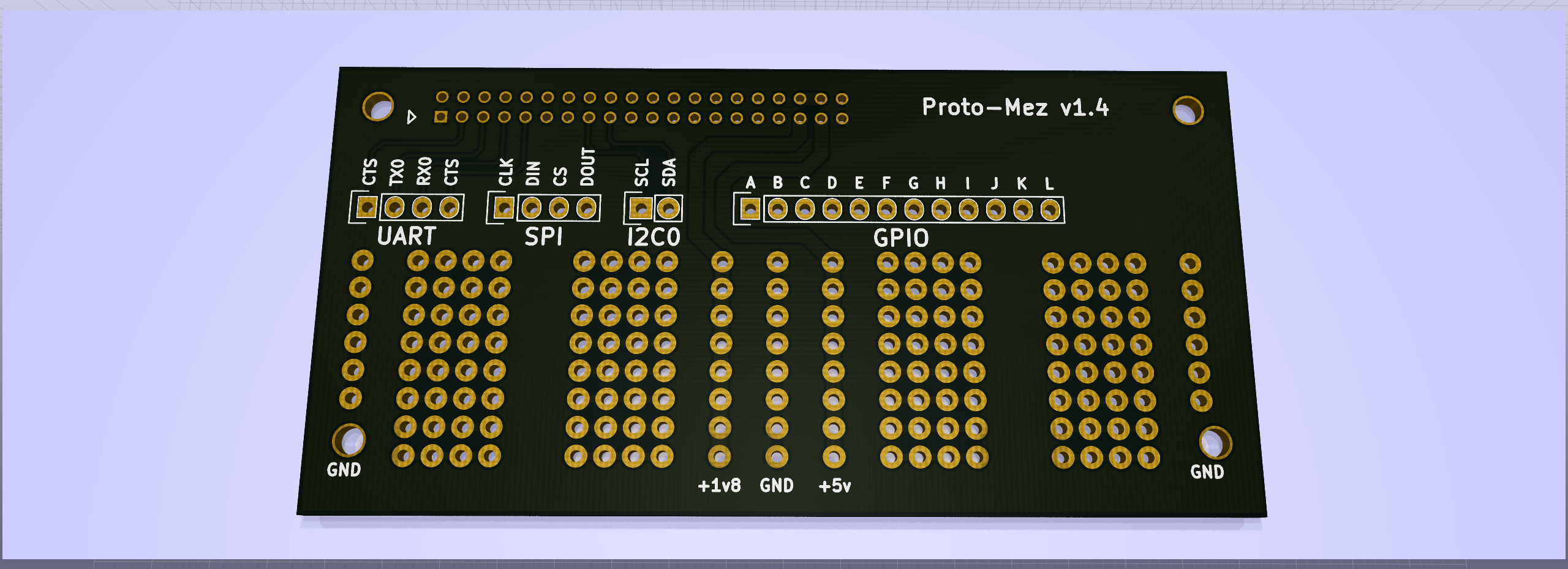

About the PROTO MEZZANINE V1.4 PCB
PROTO MEZZANINE V1.4 is an open source PCB design by 96boards, published on GitHub. It is a 2-layer board measuring 85 × 42 mm, with 5 components from 5 distinct parts.
From the project
Repository for community designed mezzanine boards for the 96boards specification.
PROTO MEZZANINE ===============================================
This is a simple protyping mezzanine that breaks out the lowspeed header and provides a breadboard shaped prototyping area.
PROTO MEZZANINE V1.4 bill of materials (BOM)
5 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PAD_1x1 | PAD_1x1 | J1 |
| 1 | CONN_01X04 | Pin_Header_Straight_1x04 | J2 |
| 1 | CONN_01X02 | Pin_Header_Straight_1x02 | J3 |
| 1 | CONN_01X12 | Pin_Header_Straight_1x12 | J4 |
| 1 | CONN_02X20 | Pin_Header_Straight_2x20_Pitch2mm | P1 |
PROTO MEZZANINE V1.4 design files
The KiCad project lives in the 96boards/mezzanine-community repository on GitHub; these links point at the commit this page was built from.
PROTO MEZZANINE V1.4: common questions
How big is the PROTO MEZZANINE V1.4 PCB?
The PROTO MEZZANINE V1.4 measures 85 × 42 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PROTO MEZZANINE V1.4?
5 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the PROTO MEZZANINE V1.4 design files?
From the 96boards/mezzanine-community repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the PROTO MEZZANINE V1.4 design in my own project?
The repository has no license, so all rights stay with 96boards. Use it as a reference, and ask the author before reusing the design.
