GPS Mezzanine
About the GPS Mezzanine PCB

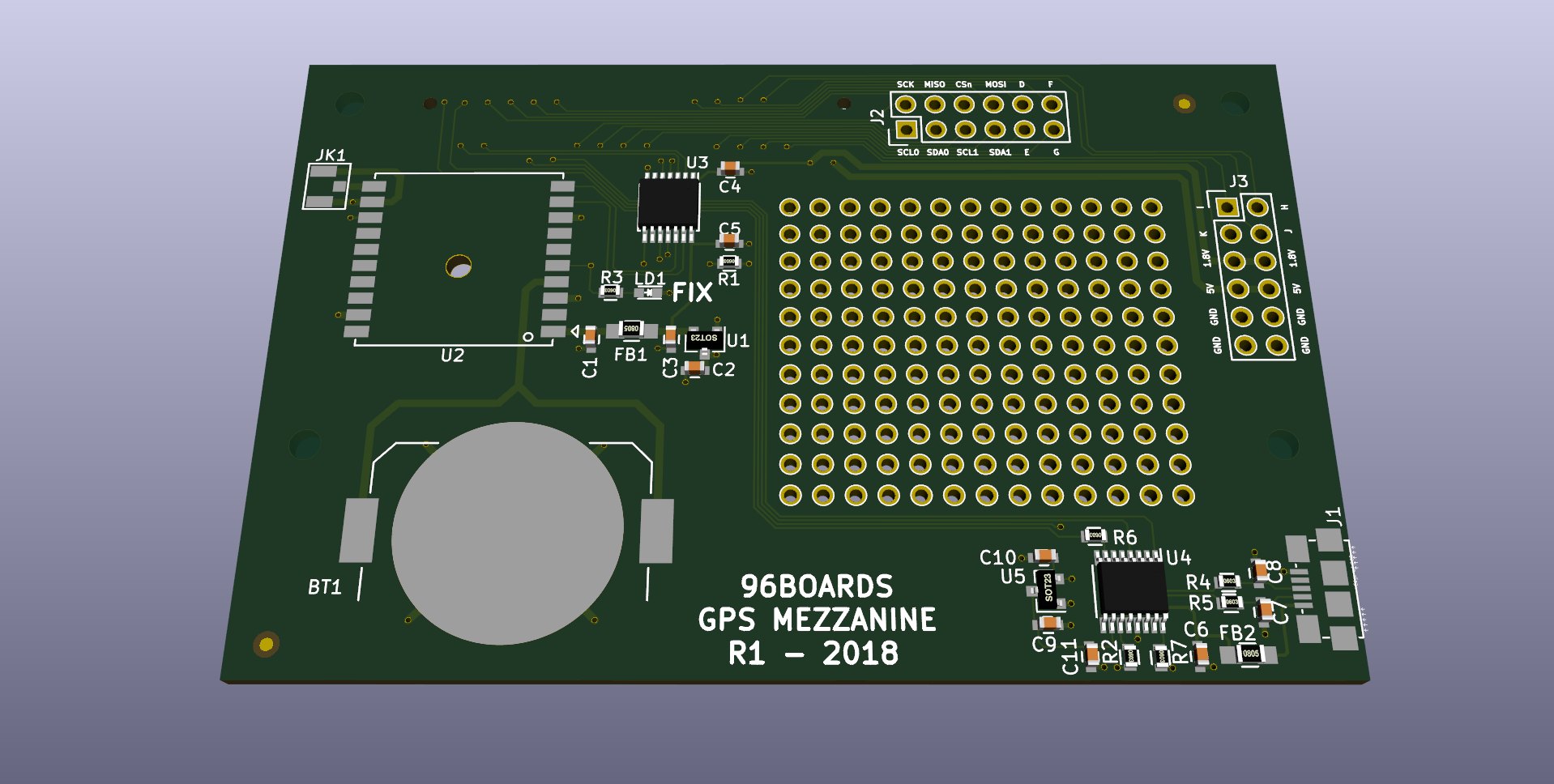

GPS Mezzanine is an open source PCB design by 96boards, published on GitHub. It is a 2-layer board measuring 85 × 54 mm, with 32 components from 22 distinct parts.
Other key parts include the MCP1700T-3302E/TT, FGPMMOPA6H, TXS0104E, FT230X and MCP1700T-1802E. By type, the board carries 11 capacitors, 7 resistors, 5 ICs, 4 connectors, 2 inductors and 1 battery holder.
It belongs with the rf & radio designs in this gallery.
From the project
Repository for community designed mezzanine boards for the 96boards specification.
This project contains the design files for a GPS mezzanine for the 96boards CE specification.
Copyright (c) 2017-2018, Michael Welling
Main components on the GPS Mezzanine
GPS Mezzanine bill of materials (BOM)
32 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP1700T-3302E/TT | SOT-23 | U1 |
| 1 | FGPMMOPA6H | FGPMMOPA6H | U2 |
| 1 | TXS0104E | TSSOP-14_4.3x5.1mm_Pitch0.65mm | U3 |
| 1 | FT230X | SSOP-16_3.9x4.9mm_Pitch0.635mm | U4 |
| 1 | MCP1700T-1802E | SOT-23 | U5 |
| 1 | USB_OTG | 10118192-0001LF(MICRO-USB-B-AMPHENOL-FCI) | J1 |
| 2 | CONN_02X06 | Pin_Header_Straight_2x06 | J2, J3 |
| 1 | CONN_02X20 | Pin_Header_SMD_2x20_Pitch2mm | P1 |
| 1 | Battery_Cell | BAT-HLD-001 | BT1 |
| 1 | uFL | U.FL-R-SMT-1 | JK1 |
| 1 | LED | LED-0603 | LD1 |
| 2 | ILBB0805ER102V | R_0805_HandSoldering | FB1, FB2 |
| 1 | 10 uF | C_0603 | C1 |
| 2 | 1 uF | C_0603 | C2, C3 |
| 3 | .1uF | C_0603 | C4, C5, C11 |
| 1 | 4.7uF | C_0603 | C6 |
| 2 | 47pF | C_0603 | C7, C8 |
| 2 | 1uF | C_0603 | C9, C10 |
| 2 | 1K | R_0603 | R1, R3 |
| 1 | 10K | R_0603 | R2 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 27 | R_0603 | R4, R5 |
| 2 | 220 | R_0603 | R6, R7 |
GPS Mezzanine design files
The KiCad project lives in the 96boards/mezzanine-community repository on GitHub; these links point at the commit this page was built from.
GPS Mezzanine: common questions
How big is the GPS Mezzanine PCB?
The GPS Mezzanine measures 85 × 54 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the GPS Mezzanine?
32 components, from 22 distinct parts. The full bill of materials is listed on this page.
Where can I download the GPS Mezzanine design files?
From the 96boards/mezzanine-community repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the GPS Mezzanine design in my own project?
The repository has no license, so all rights stay with 96boards. Use it as a reference, and ask the author before reusing the design.
