Oled flipper

a0gsoft·oled_flipper·applications/external/uv_meter_as7331/adapter_pcb/flipper_as7331_adapter/flipper_as7331_adapter.kicad_pcb

Oled flipper PCB layout, top view — open source board by a0gsoft

About the Oled flipper PCB

Oled flipper is an open source PCB design by a0gsoft, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 25.8 × 20.3 mm, with 2 components from 2 distinct parts.

It belongs with the displays & leds and sensors designs in this gallery.

From the project

DIY Flipper Zero firmware & hardware mapping for STM32WB55

A Flipper Zero application designed to measure ultraviolet (UV) radiation levels using the AS7331 sensor. It supports individual measurements for UV-A, UV-B, and UV-C wavelengths. The easiest way to hook everything up is to use a breakout board, such as the one from SparkFun. The application is available in the Flipper App Catalog and comes pre-installed on some custom firmware builds, such as the Momentum Firmware. For more behind-the-scenes info, check out the post on my website.

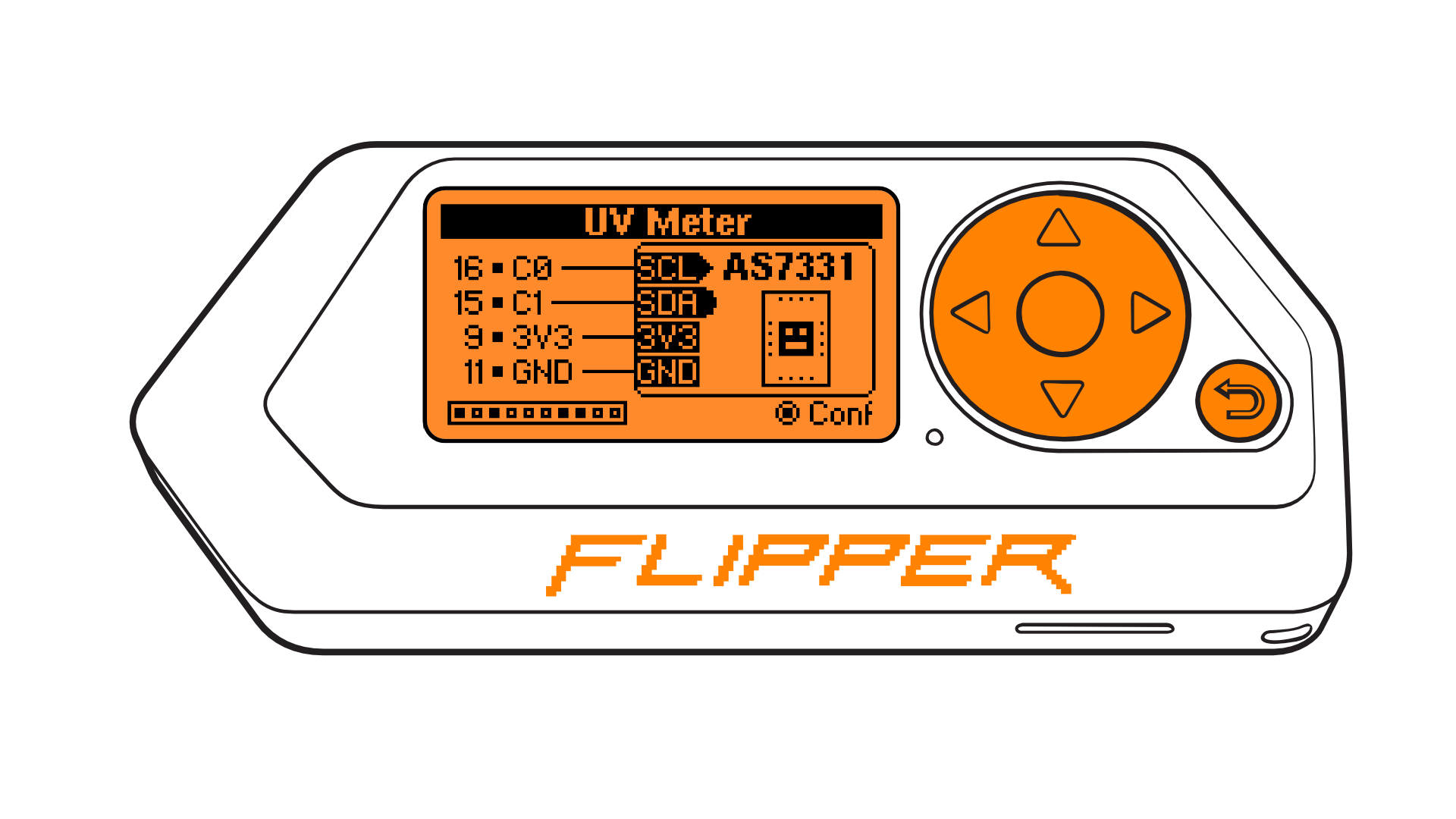

Oled flipper, from the project README
From the project README

Oled flipper bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
Conn_01x10
J1
1
AS7331
AS7331

Oled flipper design files

The KiCad project lives in the a0gsoft/oled_flipper repository on GitHub; these links point at the commit this page was built from.

Oled flipper: common questions

How big is the Oled flipper PCB?

The Oled flipper measures 25.8 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Oled flipper?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Oled flipper design files?

From the a0gsoft/oled_flipper repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Oled flipper design in my own project?

Yes, under the terms of its GPL-3.0 license, which a0gsoft chose for the repository.
