STM32-Phill s-Lab-PCB-Course

abda-s·STM32-Phill-s-Lab-PCB-Course

STM32-Phill s-Lab-PCB-Course layout, top view — open source STM32 board by abda-s

About the STM32-Phill s-Lab-PCB-Course

STM32-Phill s-Lab-PCB-Course is an open source STM32 PCB design by abda-s, published on GitHub. It is a 2-layer board measuring 42 × 33 mm, with 28 components from 17 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 13 capacitors, 5 resistors, 4 connectors, 2 ICs, 1 crystal and 1 switch.

It belongs with the power & battery designs in this gallery.

From the project

A beginner-friendly introduction to STM32 hardware design and KiCad

A beginner-friendly introduction to STM32 hardware design and KiCad. This is a minimal black-pill-style board built around the STM32F103C8T6 (ARM Cortex-M3), designed while following Phil's Lab's free full tutorial:

This project is just a beginner intro to STM32 hardware design and KiCad — the design is intentionally kept simple (no ESD protection, no fancy features) while following good design practices taught in the course. It is a learning project, not production-ready hardware.

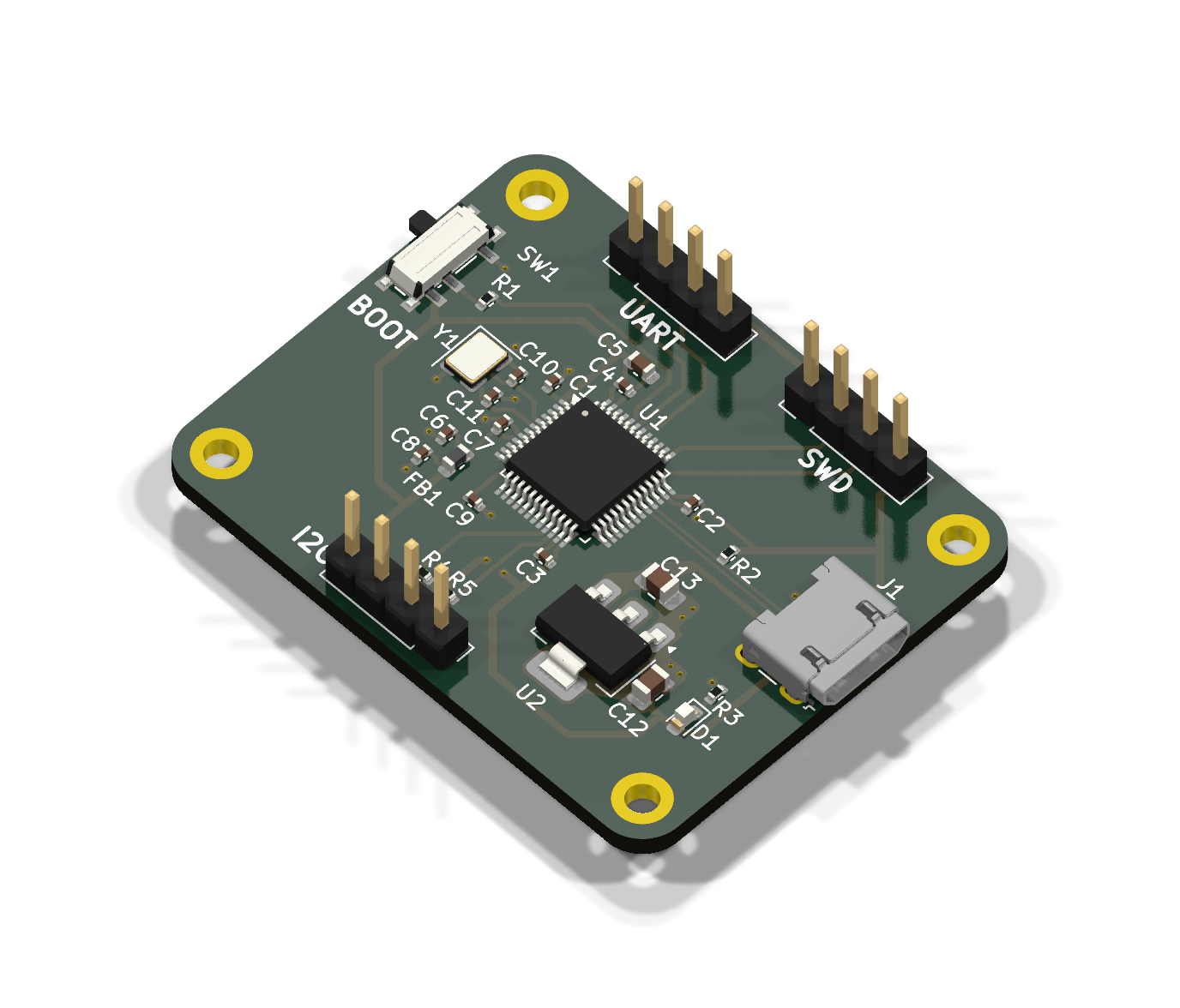

STM32-Phill s-Lab-PCB-Course, from the project README
From the project README

Main components on the STM32-Phill s-Lab-PCB-Course

STM32F103C8T6AMS1117-3.3

STM32-Phill s-Lab-PCB-Course bill of materials (BOM)

28 components, 17 distinct parts.

QtyPartRefs
1
STM32F103C8T6
U1
1
AMS1117-3.3
U2
1
16Mhz
Y1
1
USB_B_Micro
J1
3
Conn_01x04_Pin
J2, J3, J4
1
SW_SPDT
SW1
1
RED_LED
D1
1
FerriteBead
FB1
5
100n
C1, C2, C3, C4, C9
1
10u
C5
1
10n
C6
2
1u
C7, C8
2
10p
C10, C11
1
22u
C12
1
22u
C13
1
10K
R1
4
1K5
R2, R3, R4, R5

STM32-Phill s-Lab-PCB-Course design files

The KiCad project lives in the abda-s/STM32-Phill-s-Lab-PCB-Course repository on GitHub; these links point at the commit this page was built from.

STM32-Phill s-Lab-PCB-Course: common questions

What microcontroller does the STM32-Phill s-Lab-PCB-Course use?

The STM32-Phill s-Lab-PCB-Course is built around the STM32F103C8T6, from the STM32 family.

How big is the STM32-Phill s-Lab-PCB-Course?

The STM32-Phill s-Lab-PCB-Course measures 42 × 33 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STM32-Phill s-Lab-PCB-Course?

28 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the STM32-Phill s-Lab-PCB-Course design files?

From the abda-s/STM32-Phill-s-Lab-PCB-Course repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the STM32-Phill s-Lab-PCB-Course design in my own project?

The repository has no license, so all rights stay with abda-s. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the STM32-Phill s-Lab-PCB-Course without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
