Three key media hackpad

Abhishek-mee·three-key-media-hackpad·PCB/hackclub.kicad_pcb

Three key media hackpad PCB layout, top view — open source board by Abhishek-mee

About the Three key media hackpad PCB

Three key media hackpad is an open source PCB design by Abhishek-mee, published on GitHub. It is a 2-layer board measuring 97 × 37 mm, with 4 components from 2 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 3 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Three key USB media hackpad with XIAO RP2040, KMK firmware, and 3D printed case

This is a small USB macropad for quick media controls. It uses three MX-style switches with a Seeed Studio XIAO RP2040 mounted on the back of the PCB. The case is a two-part 3D printed sandwich design with a bottom tray and a top switch plate.

The firmware is written with KMK. The default keymap is:

- CAD/ has the full case model and OpenSCAD source. - PCB/ has the KiCad project files. - Firmware/ has the original KMK firmware source. - production/ has the gerbers, printable case files, and firmware file.

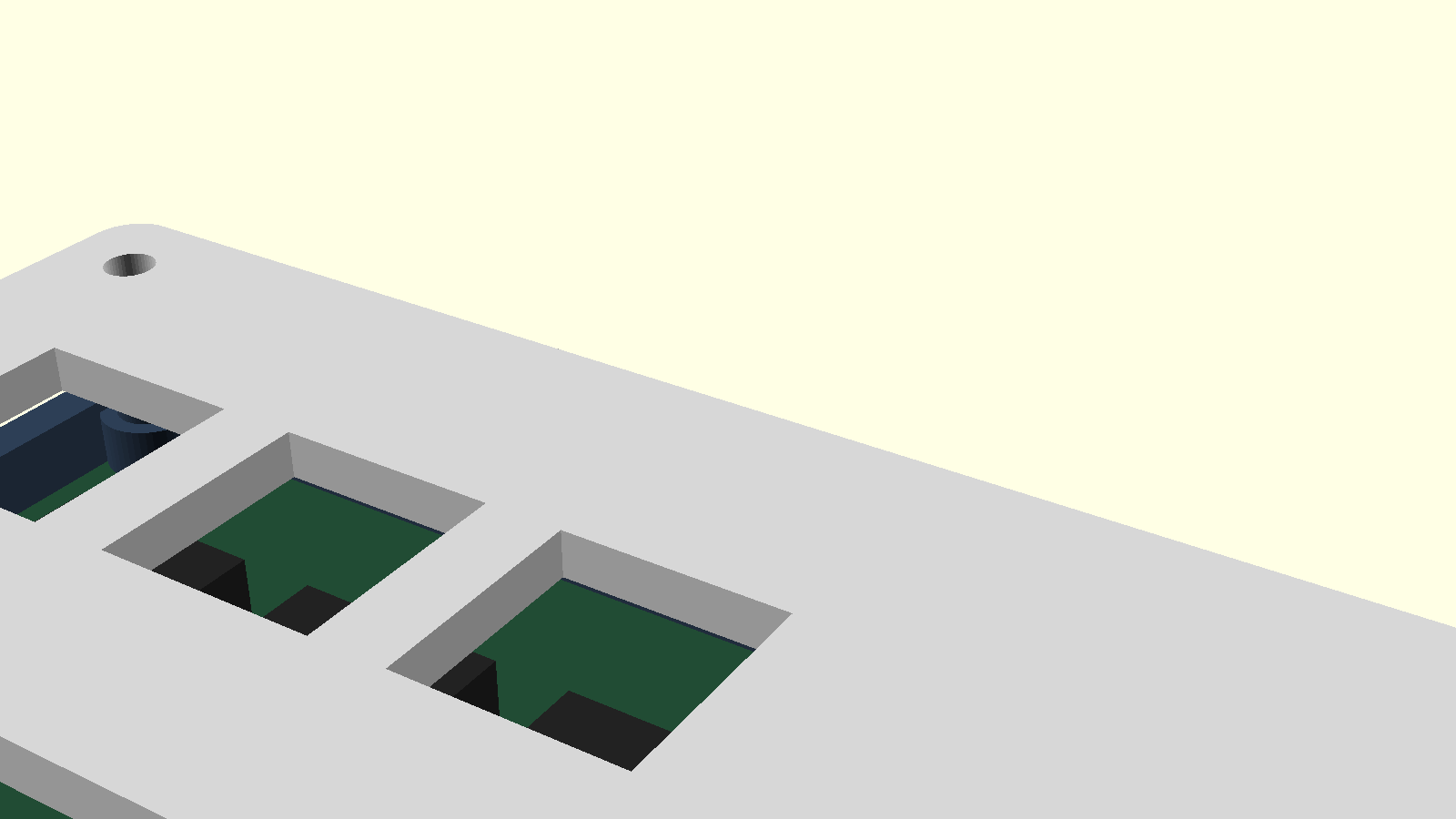

Three key media hackpad, from the project README — From the project README

Main components on the Three key media hackpad

MOUDLE-SEEEDUINO-XIAO

Three key media hackpad bill of materials (BOM)

4 components, 2 distinct parts.

Qty	Part	Footprint	Refs
1	MOUDLE-SEEEDUINO-XIAO	XIAO-Generic-Hybrid-14P-2.54-21X17.8MM	U1
3	SW_Push	SW_Cherry_MX_1.00u_PCB	SW1, SW2, SW3

Three key media hackpad design files

The KiCad project lives in the Abhishek-mee/three-key-media-hackpad repository on GitHub; these links point at the commit this page was built from.

LayoutPCB/hackclub.kicad_pcb
SchematicPCB/hackclub.kicad_sch

Three key media hackpad: common questions

How big is the Three key media hackpad PCB?

The Three key media hackpad measures 97 × 37 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Three key media hackpad?

4 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Three key media hackpad design files?

From the Abhishek-mee/three-key-media-hackpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Three key media hackpad design in my own project?

The repository has no license, so all rights stay with Abhishek-mee. Use it as a reference, and ask the author before reusing the design.
