Daylight Neo

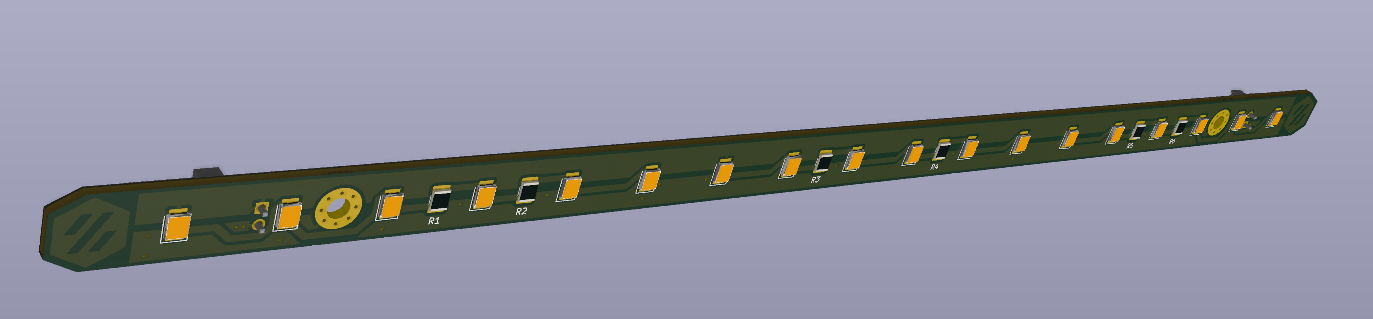

About the Daylight Neo PCB
Daylight Neo is an open source PCB design by AdamV3D, published on GitHub. It is a 2-layer board measuring 270 × 11 mm, with 28 components from 4 distinct parts.
By type, the board carries 13 diodes, 13 capacitors and 2 connectors.
From the project
Modifications for Voron Printers by Vector 3D
Chainable 24V LED bar to be used with high quality 4000K LEDs to give the illusion of daylight in your Voron.
Ideally popuplated with 90+ CRI LEDs (3V, ~60mA), but currently LCSC does not carry those, so the BOM has 80 CRI ones. Just as bright, bit less accurate color reproduction. If you solder them yourself, get better leds, for example: Digikey CRI90+ AliExpress CRI95+ (non affiliate link)
Daylight Neo bill of materials (BOM)
28 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | IN | JST_XH_S3B-XH-A_1x03_P2.50mm_Horizontal Daylight | J1 |
| 1 | OUT | JST_XH_S3B-XH-A_1x03_P2.50mm_Horizontal Daylight | J2 |
| 13 | LED_ALT | XL-3528RGBW-WS2812B | D1, D2, D3, D4, D5, D6, D7, D8 +5 |
| 13 | 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder_V3Dspec | C1, C2, C3, C4, C5, C6, C7, C8 +5 |
Daylight Neo design files
The KiCad project lives in the AdamV3D/V3D-Voron-Mods repository on GitHub; these links point at the commit this page was built from.
Daylight Neo: common questions
How big is the Daylight Neo PCB?
The Daylight Neo measures 270 × 11 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Daylight Neo?
28 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Daylight Neo design files?
From the AdamV3D/V3D-Voron-Mods repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Daylight Neo design in my own project?
The repository has no license, so all rights stay with AdamV3D. Use it as a reference, and ask the author before reusing the design.
