Daylight UV Mini
About the Daylight UV Mini PCB

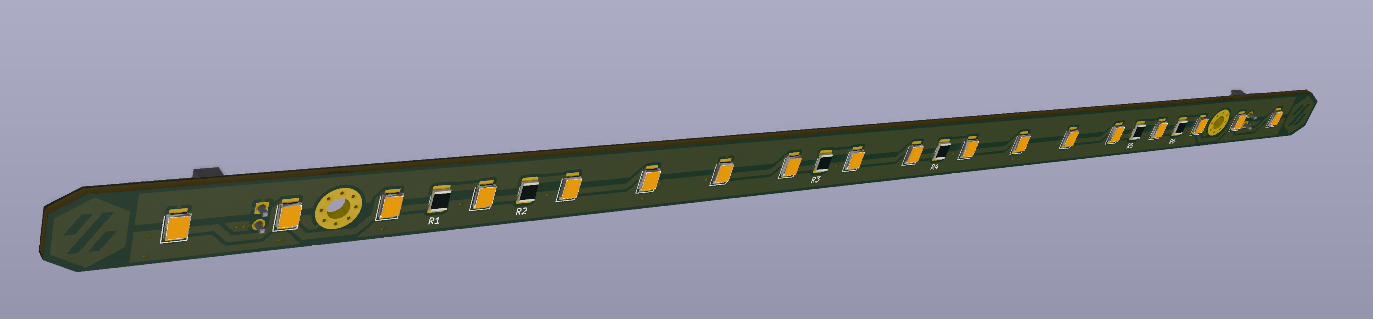

Daylight UV Mini is an open source PCB design by AdamV3D, published on GitHub. It is a 2-layer board measuring 170 × 11 mm, with 18 components from 2 distinct parts.
By type, the board carries 14 diodes and 4 resistors.
From the project
Modifications for Voron Printers by Vector 3D
Chainable 24V LED bar to be used with high quality 4000K LEDs to give the illusion of daylight in your Voron.
Ideally popuplated with 90+ CRI LEDs (3V, ~60mA), but currently LCSC does not carry those, so the BOM has 80 CRI ones. Just as bright, bit less accurate color reproduction. If you solder them yourself, get better leds, for example: Digikey CRI90+ AliExpress CRI95+ (non affiliate link)
Daylight UV Mini bill of materials (BOM)
18 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 14 | LED_ALT | LED_PLCC_2835 | D1, D2, D3, D4, D5, D6, D7, D8 +6 |
| 4 | 20R 0.25W | R_1206_3216Metric | R1, R2, R3, R4 |
Daylight UV Mini design files
The KiCad project lives in the AdamV3D/V3D-Voron-Mods repository on GitHub; these links point at the commit this page was built from.
Daylight UV Mini: common questions
How big is the Daylight UV Mini PCB?
The Daylight UV Mini measures 170 × 11 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Daylight UV Mini?
18 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Daylight UV Mini design files?
From the AdamV3D/V3D-Voron-Mods repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Daylight UV Mini design in my own project?
The repository has no license, so all rights stay with AdamV3D. Use it as a reference, and ask the author before reusing the design.
