A1200KB
About the A1200KB PCB
A1200KB is an open source PCB design by aeberbach, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 450 × 125 mm, with 97 components from 97 distinct parts.
By type, the board carries 96 relays and 1 connector.
It belongs with the keyboards and retro computing designs in this gallery.
From the project
As of right now this is revision 4. I know it could be improved very, very slightly by changing the position of key groups by less than a millimetre but I think it's complete now.
As of right now this is revision 4. I know it could be improved very, very slightly by changing the position of key groups by less than a millimetre but I think it's complete now.

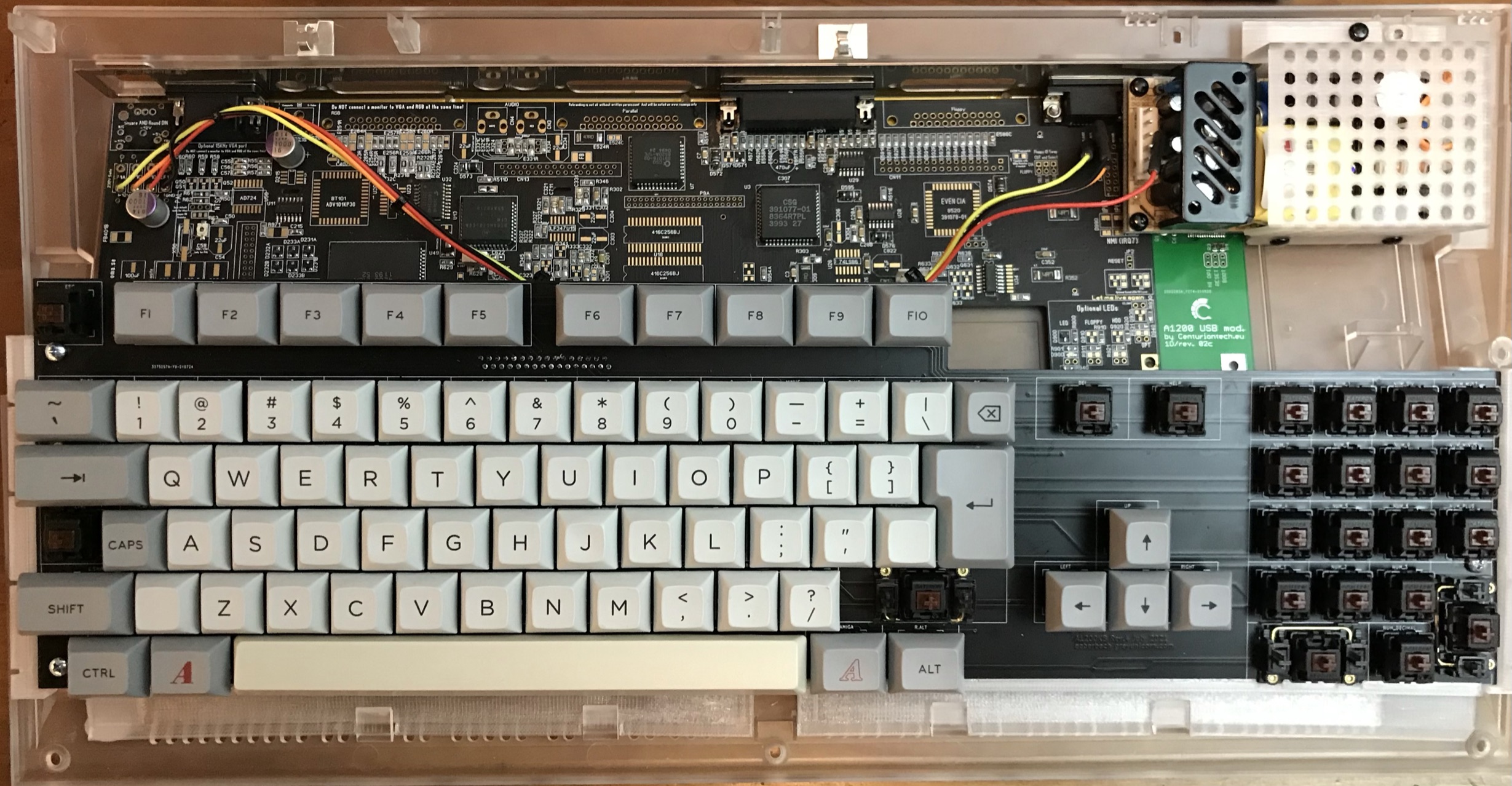

This PCB design was reverse-engineered from the original keyboard in an Amiga 1200. It is designed to connect to your Amiga 1200 with no modifications to the original machine, just take out the original keyboard and store it away safely. If you want an A600 keyboard, see my other repositories.
A1200KB bill of materials (BOM)
97 components, 97 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x32_Female | FFC-1.25mm-RA-5204403245 | J1 |
| 1 | ESC | MXOnly-1U-NoLED | K1 |
| 1 | F1 | MXOnly-1.25U-NoLED | K2 |
| 1 | F2 | MXOnly-1.25U-NoLED | K3 |
| 1 | F3 | MXOnly-1.25U-NoLED | K4 |
| 1 | F4 | MXOnly-1.25U-NoLED | K5 |
| 1 | F5 | MXOnly-1.25U-NoLED | K6 |
| 1 | F6 | MXOnly-1.25U-NoLED | K7 |
| 1 | F7 | MXOnly-1.25U-NoLED | K8 |
| 1 | F8 | MXOnly-1.25U-NoLED | K9 |
| 1 | F9 | MXOnly-1.25U-NoLED | K10 |
| 1 | F10 | MXOnly-1.25U-NoLED | K11 |
| 1 | TILDE | MXOnly-1.5U-NoLED | K12 |
| 1 | 1 | MXOnly-1U-NoLED | K13 |
| 1 | 2 | MXOnly-1U-NoLED | K14 |
| 1 | 3 | MXOnly-1U-NoLED | K15 |
| 1 | 4 | MXOnly-1U-NoLED | K16 |
| 1 | 5 | MXOnly-1U-NoLED | K17 |
| 1 | 6 | MXOnly-1U-NoLED | K18 |
| 1 | 7 | MXOnly-1U-NoLED | K19 |
Show 77 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 8 | MXOnly-1U-NoLED | K20 |
| 1 | 9 | MXOnly-1U-NoLED | K21 |
| 1 | 0 | MXOnly-1U-NoLED | K22 |
| 1 | MINUS | MXOnly-1U-NoLED | K23 |
| 1 | PLUS | MXOnly-1U-NoLED | K24 |
| 1 | PIPE | MXOnly-1U-NoLED | K25 |
| 1 | BS | MXOnly-1U-NoLED | K26 |
| 1 | DEL | MXOnly-1.5U-NoLED | K27 |
| 1 | HELP | MXOnly-1.5U-NoLED | K28 |
| 1 | NUM_( | MXOnly-1U-NoLED | K29 |
| 1 | NUM_) | MXOnly-1U-NoLED | K30 |
| 1 | NUM_DIV | MXOnly-1U-NoLED | K31 |
| 1 | NUM_MULT | MXOnly-1U-NoLED | K32 |
| 1 | TAB | MXOnly-2U-NoLED | K33 |
| 1 | Q | MXOnly-1U-NoLED | K34 |
| 1 | W | MXOnly-1U-NoLED | K35 |
| 1 | E | MXOnly-1U-NoLED | K36 |
| 1 | R | MXOnly-1U-NoLED | K37 |
| 1 | T | MXOnly-1U-NoLED | K38 |
| 1 | Y | MXOnly-1U-NoLED | K39 |
| 1 | U | MXOnly-1U-NoLED | K40 |
| 1 | I | MXOnly-1U-NoLED | K41 |
| 1 | O | MXOnly-1U-NoLED | K42 |
| 1 | P | MXOnly-1U-NoLED | K43 |
| 1 | L.CURLY | MXOnly-1U-NoLED | K44 |
| 1 | R.CURLY | MXOnly-1U-NoLED | K45 |
| 1 | RETURN | MXOnly-ISO | K46 |
| 1 | NUM_7 | MXOnly-1U-NoLED | K47 |
| 1 | NUM_8 | MXOnly-1U-NoLED | K48 |
| 1 | NUM_9 | MXOnly-1U-NoLED | K49 |
| 1 | NUM_MINUS | MXOnly-1U-NoLED | K50 |
| 1 | CTRL | MXOnly-1.25U-NoLED | K51 |
| 1 | CAPSLOCK | MXOnly-1U | K52 |
| 1 | A | MXOnly-1U-NoLED | K53 |
| 1 | S | MXOnly-1U-NoLED | K54 |
| 1 | D | MXOnly-1U-NoLED | K55 |
| 1 | F | MXOnly-1U-NoLED | K56 |
| 1 | G | MXOnly-1U-NoLED | K57 |
| 1 | H | MXOnly-1U-NoLED | K58 |
| 1 | J | MXOnly-1U-NoLED | K59 |
| 1 | K | MXOnly-1U-NoLED | K60 |
| 1 | L | MXOnly-1U-NoLED | K61 |
| 1 | COLON | MXOnly-1U-NoLED | K62 |
| 1 | " | MXOnly-1U-NoLED | K63 |
| 1 | R.BLANK | MXOnly-1U-NoLED | K64 |
| 1 | UP | MXOnly-1U-NoLED | K65 |
| 1 | NUM_4 | MXOnly-1U-NoLED | K66 |
| 1 | NUM_5 | MXOnly-1U-NoLED | K67 |
| 1 | NUM_6 | MXOnly-1U-NoLED | K68 |
| 1 | NUM_PLUS | MXOnly-1U-NoLED | K69 |
| 1 | L.SHIFT | MXOnly-1.75U-NoLED | K70 |
| 1 | L.BLANK | MXOnly-1U-NoLED | K71 |
| 1 | Z | MXOnly-1U-NoLED | K72 |
| 1 | X | MXOnly-1U-NoLED | K73 |
| 1 | C | MXOnly-1U-NoLED | K74 |
| 1 | V | MXOnly-1U-NoLED | K75 |
| 1 | B | MXOnly-1U-NoLED | K76 |
| 1 | N | MXOnly-1U-NoLED | K77 |
| 1 | M | MXOnly-1U-NoLED | K78 |
| 1 | R.CROC | MXOnly-1U-NoLED | K79 |
| 1 | L.CROC | MXOnly-1U-NoLED | K80 |
| 1 | QUESTION | MXOnly-1U-NoLED | K81 |
| 1 | R.SHIFT | MXOnly-2.75U-NoLED | K82 |
| 1 | LEFT | MXOnly-1U-NoLED | K83 |
| 1 | DOWN | MXOnly-1U-NoLED | K84 |
| 1 | RIGHT | MXOnly-1U-NoLED | K85 |
| 1 | NUM_1 | MXOnly-1U-NoLED | K86 |
| 1 | NUM_2 | MXOnly-1U-NoLED | K87 |
| 1 | NUM_3 | MXOnly-1U-NoLED | K88 |
| 1 | NUM_ENTER | MXOnly-2U-NoLED | K89 |
| 1 | L.ALT | MXOnly-1.25U-NoLED | K90 |
| 1 | L.AMIGA | MXOnly-1.25U-NoLED | K91 |
| 1 | SPACE | MXOnly-7U-NoLED | K92 |
| 1 | R.AMIGA | MXOnly-1.25U-NoLED | K93 |
| 1 | R.ALT | MXOnly-1.25U-NoLED | K94 |
| 1 | NUM_0 | MXOnly-2U-NoLED | K95 |
| 1 | NUM_DECIMAL | MXOnly-1U-NoLED | K96 |
A1200KB design files
The KiCad project lives in the aeberbach/A1200KB repository on GitHub; these links point at the commit this page was built from.
- LayoutA1200KB.kicad_pcb
A1200KB: common questions
How big is the A1200KB PCB?
The A1200KB measures 450 × 125 mm, has 2 copper layers and is 2 mm thick.
How many components are on the A1200KB?
97 components, from 97 distinct parts. The full bill of materials is listed on this page.
Where can I download the A1200KB design files?
From the aeberbach/A1200KB repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the A1200KB design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
