About the DSOXLAN PCB

DSOXLAN is an open source PCB design by aewallin, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 81.3 × 58.4 mm, with 6 components from 5 distinct parts.

By type, the board carries 3 resistors, 2 connectors and 1 capacitor.

It belongs with the test & measurement designs in this gallery.

From the project

open source hardware DSOXLAN Ethernet module for Agilent/Keysight DSO-X 2000 and 3000 series oscilloscopes

This is a simple Ethernet interface-card for Agilent/Keysight DSO-X 2000 and 3000 series oscilloscopes. The original Agilent/Keysight DSOXLAN module (about 326 euros + VAT as of December 2014) also includes VGA output, while this simple card provides only LAN.

Many thanks to "georges80" on the EEVBlog forum for the original schematic and PCB layout.

Components: Ethernet jack, WÜRTH 7499010121A 2pcs 470R 0805 resistor 1pcs 10R 0805 resistor 1pcs 1n 0805 capacitor

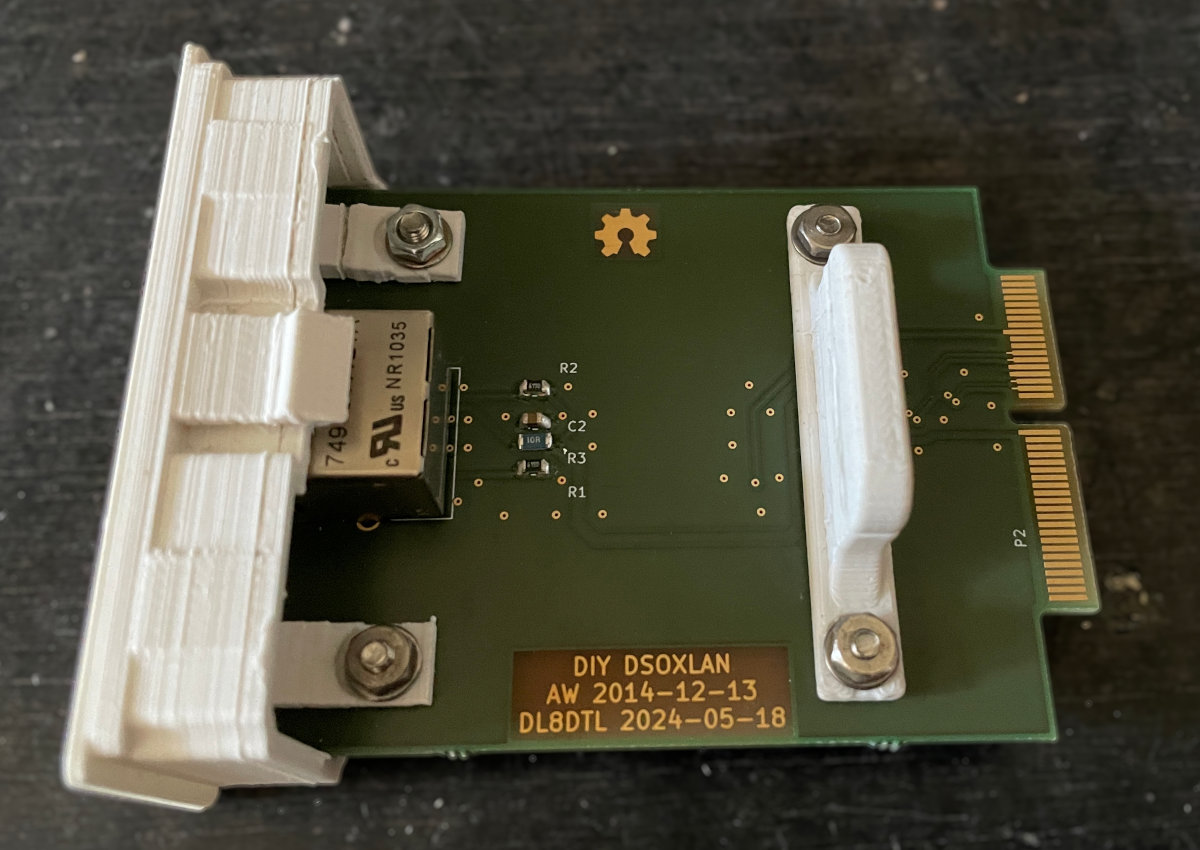

DSOXLAN, from the project README
From the project README

DSOXLAN bill of materials (BOM)

6 components, 5 distinct parts.

QtyPartRefs
1
7499010121A
P1
1
CONN_02X40
P2
1
1n
C2
2
470R
R1, R2
1
10R
R3

DSOXLAN design files

The KiCad project lives in the aewallin/DSOXLAN repository on GitHub; these links point at the commit this page was built from.

DSOXLAN: common questions

How big is the DSOXLAN PCB?

The DSOXLAN measures 81.3 × 58.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DSOXLAN?

6 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the DSOXLAN design files?

From the aewallin/DSOXLAN repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DSOXLAN design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which aewallin chose for the repository.
