About the SAO CORE4 PCB
SAO CORE4 is an open source PCB design by ageppert, published on GitHub under the MIT license. It is a 2-layer board measuring 50.8 × 63.5 mm, with 70 components from 30 distinct parts.
Other key parts include the SGM2007-3.3XN5/TR, C7955, SN74HC02DR and C506653. By type, the board carries 32 resistors, 12 transistors, 10 capacitors, 4 ICs, 4 diodes and 3 crystals.
From the project

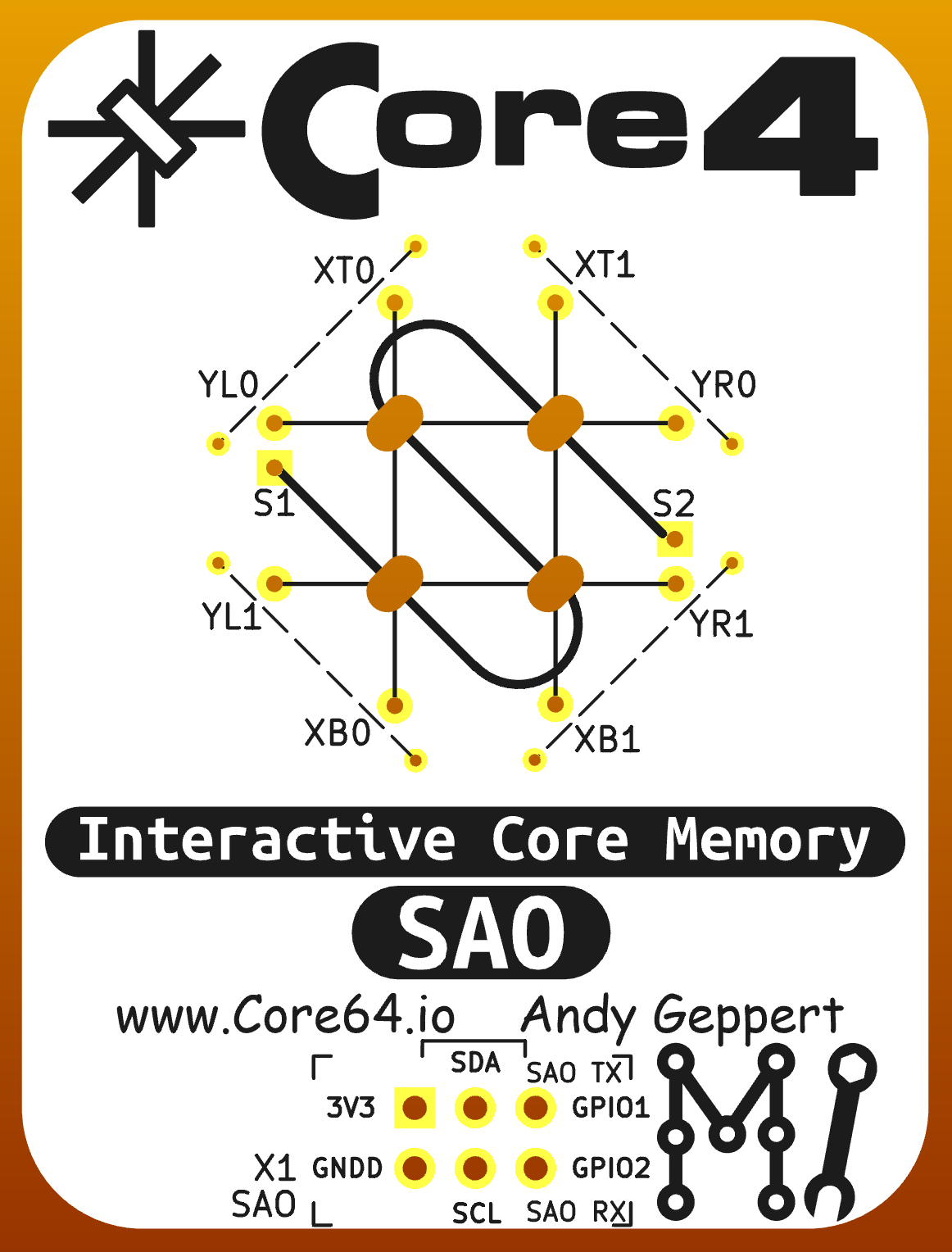

A Nibble of Core Memory
Follow this project at: https://hackaday.io/project/197235-sao-core4-a-nibble-of-core-memory-with-i2c
Hardware Version 0.2.0 - Work in progres - reducing board size - add button - simplify.
Hardware Version 0.1.1 hand reworked prototype, simplified and re-routed row drive transistor signals to simplify firmware development. This is the version that is currently the functional prototype. These changes will be in 0.2.0.

Main components on the SAO CORE4
SAO CORE4 bill of materials (BOM)
70 components, 30 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SGM2007-3.3XN5/TR SSP9193-33M5R | SOT-23-5 | U7 |
| 1 | C7955 LM393 | SOIC-8_W3.9mm | U9 |
| 1 | SN74HC02DR | SOIC-14_3.9x8.7mm_P1.27mm | U10 |
| 1 | C506653 MCP23017_SS | SSOP-28_5.3x10.2mm_P0.65mm | U11 |
| 5 | MMBT4403LT1G ON Semiconductor | SOT-23-3 | Q1, Q3, Q5, Q13, Q17 |
| 5 | MMBT4401LT1G ON Semiconductor | SOT-23-3 | Q2, Q4, Q6, Q14, Q18 |
| 1 | C20917 Q_NMOS_DGS_AO3400A | SOT-23-3 | Q21 |
| 1 | SL3401A-TP SL3401A Micro Commercial Co | SOT-23-3 | Q22 |
| 2 | SFH11-NBPC-D03-ST-BK SAO_conn_SFH11-NBPC-D03-ST-BK | Badgelife-SAOv169-BADGE-2x3 | X1, X2 |
| 1 | C160404 QWIIC | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | X9 |
| 1 | Core_Memory_2x2_Matrix_Front_Facing | core_4_6.75mm_square_front_facing | CM1 |
| 1 | CORE_CURR_MON | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP3 |
| 1 | 3V3_CUR_MON | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP17 |
| 1 | GPB6 | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP6 |
| 1 | GPB7 | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP7 |
| 4 | XL-3216UOC-FB LED XINGLIGHT | LED_1206_3216Metric_RevMnt_Hole1.8x2.4mm_custom | D1, D2, D3, D4 |
| 3 | C28233 0.1uF | C_0805_2012Metric | C2, C17, C19 |
| 2 | C28323 1uF | C_0805_2012Metric | C10, C12 |
| 1 | C1710 0.01uF | C_0805_2012Metric | C11 |
| 3 | C412252 220uF | C_1206_3216Metric | C13, C14, C15 |
Show 10 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C17024 10uF | C_0805_2012Metric | C18 |
| 11 | C17710 470 | R_0805_2012Metric | R1, R2, R3, R4, R5, R6, R13, R14 +3 |
| 2 | C17830 8R2-5% | R_0805_2012Metric | R7, R21 |
| 2 | C17673 4K7 | R_0805_2012Metric | R27, R44 |
| 4 | C17379 1K2 | R_0805_2012Metric | R30, R31, R54, R55 |
| 2 | C17477 0 | R_0805_2012Metric | R32, R33 |
| 3 | C4310 1K5-1% | R_0805_2012Metric | R47, R50, R53 |
| 2 | C17398 1K8-1% | R_0805_2012Metric | R48, R51 |
| 2 | C17430 11-1% | R_0805_2012Metric | R49, R52 |
| 4 | C17437 120 | R_0805_2012Metric | R60, R61, R62, R63 |
SAO CORE4 design files
The KiCad project lives in the ageppert/SAO_CORE4 repository on GitHub; these links point at the commit this page was built from.
SAO CORE4: common questions
How big is the SAO CORE4 PCB?
The SAO CORE4 measures 50.8 × 63.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SAO CORE4?
70 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SAO CORE4 design files?
From the ageppert/SAO_CORE4 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SAO CORE4 design in my own project?
Yes, under the terms of its MIT license, which ageppert chose for the repository.
