DAB 3k3W - 3.3 kW Dual Active Bridge power board

ajkumar-1907·POWER-ELECTRONICS-LIB·dual-active-bridge/dual-active-bridge.kicad_pcb

DAB 3k3W - 3.3 kW Dual Active Bridge power board layout, top view — open source board by ajkumar-1907

About the DAB 3k3W - 3.3 kW Dual Active Bridge power board

DAB 3k3W - 3.3 kW Dual Active Bridge power board is an open source PCB design by ajkumar-1907, published on GitHub under the MIT license. It is a 4-layer board measuring 220 × 150 mm, with 160 components from 31 distinct parts.

Other key parts include the TI UCC21520DW, TI AMC1311BDWV, ST L78L05ACUTR and Diodes AP2112K-3.3TRG1. By type, the board carries 70 capacitors, 47 resistors, 10 diodes, 9 ICs, 8 transistors and 2 connectors.

From the project

Open-source library of power electronics converter topologies — KiCad schematics, working principles, use cases, and design notes for DC-DC, AC-DC, DC-AC, and AC-AC converters. Free to use, modify, and build on.

A 3.3 kW, 400 V ↔ 350 V bidirectional isolated DC-DC power stage for EV battery charging with V2G (vehicle-to-grid) capability. The board has two SiC full bridges connected through an off-board high-frequency transformer and series inductor. Power flows in either direction, set by the phase shift between the two bridges.

The board is split into three isolated domains: - Primary (PGND1, 400 V) - Secondary (PGND2, 350 V) - Control (GND, 3.3/5 V)

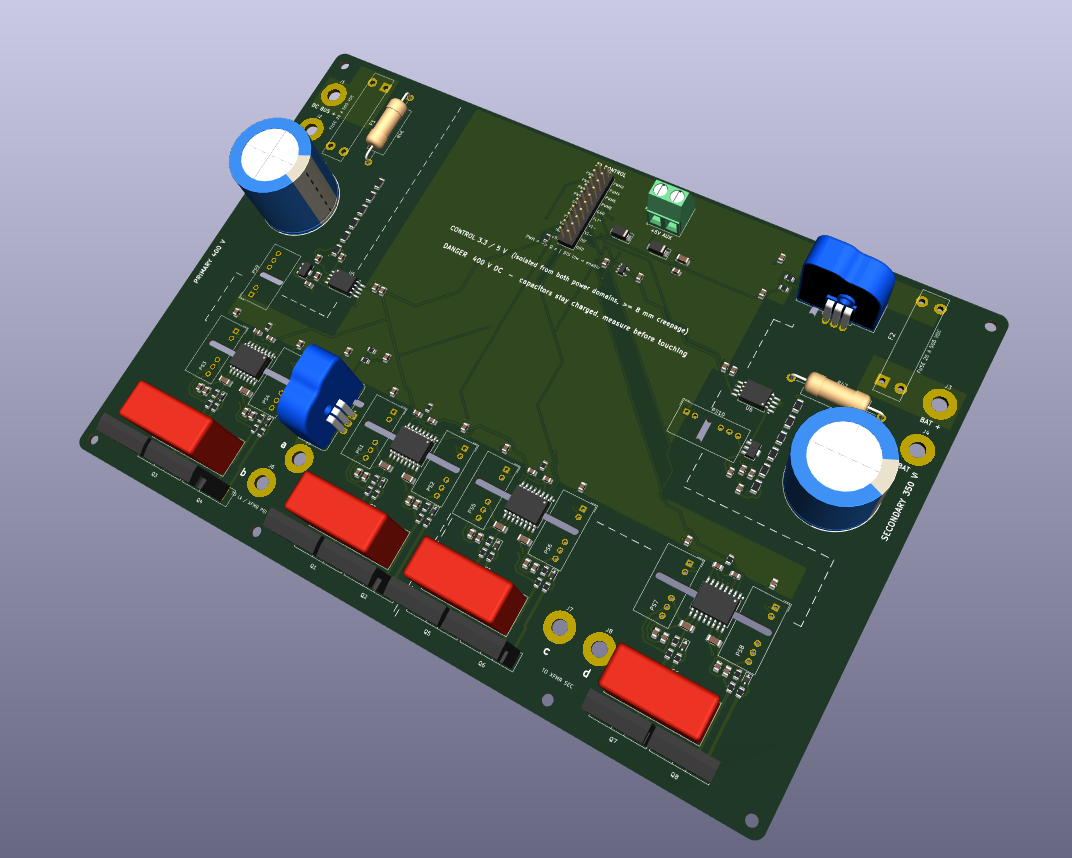

DAB 3k3W - 3.3 kW Dual Active Bridge power board, from the project README — From the project README

Main components on the DAB 3k3W - 3.3 kW Dual Active Bridge power board

TI UCC21520DW TI AMC1311BDWV ST L78L05ACUTR Diodes AP2112K-3.3TRG1

DAB 3k3W - 3.3 kW Dual Active Bridge power board bill of materials (BOM)

160 components, 31 distinct parts.

Qty	Part	Footprint	Refs
4	TI UCC21520DW UCC21520DW	SOIC-16W_7.5x10.3mm_P1.27mm	U1, U2, U3, U4
2	TI AMC1311BDWV AMC1311BDWV	SOIC-8_7.5x5.85mm_P1.27mm	U5, U6
2	ST L78L05ACUTR 78L05	SOT-89-3	U7, U8
1	Diodes AP2112K-3.3TRG1 AP2112K-3.3	SOT-23-5	U9
8	Wolfspeed C3M0060065K C3M0060065K	TO-247-4_Vertical	Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8
1	2x10 2.54 mm header CONTROL	PinHeader_2x10_P2.54mm_Vertical	J9
1	Phoenix MKDS 1,5/2-5,08 5V AUX IN	TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal	J10
2	LEM LTSR 25-NP LTSR 25-NP	LEM_LTSR-NP	CS1, CS2
2	Littelfuse 505 series 20 A 20A 500VDC	Fuseholder_Clip-6.3x32mm_PCB	F1, F2
10	Murata MGJ2D051505SC MGJ2D051505SC	Converter_DCDC_Murata_MGJ2DxxxxxxSC_THT	PS1, PS2, PS3, PS4, PS5, PS6, PS7, PS8 +2
8	Nexperia BAT54J BAT54J	D_SOD-323F	D1, D2, D3, D4, D5, D6, D7, D8
2	SS34	D_SMA	D9, D10
1	Nichicon LGN2W101MELZ25 100uF 450V	CP_Radial_D25.0mm_P10.00mm_SnapIn	C1
1	Nichicon LGN2W151MELZ30 150uF 450V	CP_Radial_D25.0mm_P10.00mm_SnapIn	C2
4	WIMA MKS4 1uF 630VDC, P22.5 (or KEMET R76) 1uF 630V film	C_Rect_L26.5mm_W11.5mm_P22.50mm_MKS4	C3, C4, C5, C6
4	KEMET C1812C104KDRAC (1 kV X7R) 100nF 1kV	C_1812_4532Metric	C7, C8, C9, C10
16	2.2uF	C_0805_2012Metric	C11, C12, C13, C14, C15, C16, C17, C18 +8
8	100nF	C_1206_3216Metric	C27, C28, C29, C30, C31, C32, C33, C34
20	1uF	C_0805_2012Metric	C35, C36, C37, C38, C39, C40, C41, C42 +12
11	100nF	C_0805_2012Metric	C43, C44, C45, C46, C53, C55, C59, C61 +3

Show 11 more

Qty	Part	Footprint	Refs
2	1nF C0G	C_0805_2012Metric	C54, C60
2	10nF	C_0805_2012Metric	C65, C66
1	22uF	C_1206_3216Metric	C67
8	10R	R_0805_2012Metric	R1, R2, R3, R4, R5, R6, R7, R8
8	4.7R	R_0805_2012Metric	R9, R10, R11, R12, R13, R14, R15, R16
11	10k	R_0805_2012Metric	R17, R18, R19, R20, R21, R22, R23, R24 +3
4	49.9k	R_0805_2012Metric	R25, R26, R27, R28
10	402k 1%	R_1206_3216Metric	R30, R31, R32, R33, R34, R36, R37, R38 +2
2	8.06k 0.1%	R_1206_3216Metric	R35, R41
2	4.75k	R_0805_2012Metric	R42, R44
2	Vishay PR02000202203JR500 220k 2W	R_Axial_DIN0617_L17.0mm_D6.0mm_P25.40mm_Horizontal	R46, R47

DAB 3k3W - 3.3 kW Dual Active Bridge power board design files

The KiCad project lives in the ajkumar-1907/POWER-ELECTRONICS-LIB repository on GitHub; these links point at the commit this page was built from.

DAB 3k3W - 3.3 kW Dual Active Bridge power board: common questions

How big is the DAB 3k3W - 3.3 kW Dual Active Bridge power board?

The DAB 3k3W - 3.3 kW Dual Active Bridge power board measures 220 × 150 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the DAB 3k3W - 3.3 kW Dual Active Bridge power board?

160 components, from 31 distinct parts. The full bill of materials is listed on this page.

Where can I download the DAB 3k3W - 3.3 kW Dual Active Bridge power board design files?

From the ajkumar-1907/POWER-ELECTRONICS-LIB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DAB 3k3W - 3.3 kW Dual Active Bridge power board design in my own project?

Yes, under the terms of its MIT license, which ajkumar-1907 chose for the repository.
