Cable buffer board
About the Cable buffer board
Cable buffer board is an open source PCB design by AllenNeuralDynamics, published on GitHub under the MIT license. It is a 4-layer board measuring 24.5 × 9 mm, with 9 components from 7 distinct parts.
Other key parts include the LTC6269xMS8E. By type, the board carries 5 capacitors, 2 resistors, 1 IC and 1 connector.
From the project

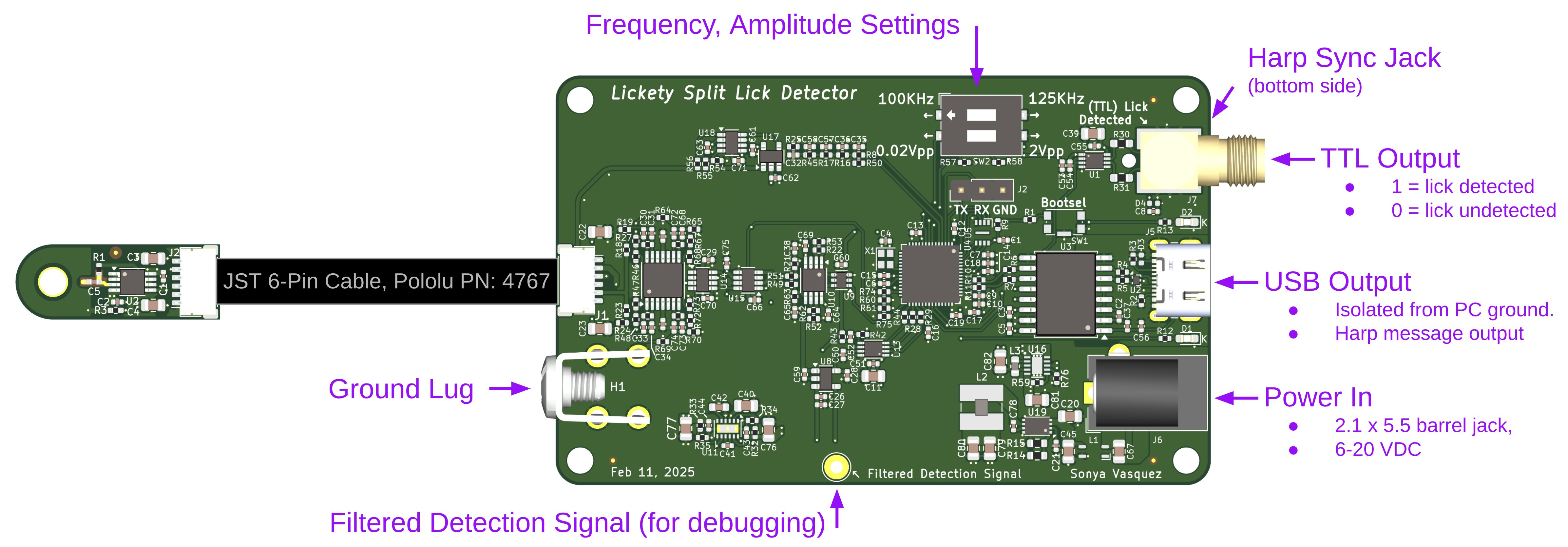

0360: an ephys-compliant capacitive lick detector
An ephys-compliant lick detector based on measured change in capacitance.
These printed circuit boards are made on-demand.
You will also need: Pololu 6-Pin SH Cable, 25cm long Stainless Steel Lick Tube, 18 Gauge (any conductive lick tube will work!) 3D Printed Enclosure Walls and Laser Cut Lids right click the component to export each part.
Once you receive boards, you will need to upload the firmware from the latest release.
Main components on the Cable buffer board
Cable buffer board bill of materials (BOM)
9 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LTC6269xMS8E Analog Devices Inc. | MSOP-8-1EP_3x3mm_P0.65mm_EP1.68x1.88mm | U2 |
| 1 | Conn_01x06_Female JST Sales America Inc. | JST_SH_SM06B-SRSS-TB_1x06-1MP_P1.00mm_Horizontal | J2 |
| 2 | 100nF Walson Technology Corporation | C_0402_1005Metric | C1, C2 |
| 2 | 10uF Murata Electronics | C_0805_2012Metric | C3, C4 |
| 1 | 10nF Yageo | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C5 |
| 1 | 100K Yageo | R_0402_1005Metric | R1 |
| 1 | 100 Yageo | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R3 |
Cable buffer board design files
The KiCad project lives in the AllenNeuralDynamics/harp.device.lickety-split repository on GitHub; these links point at the commit this page was built from.
Cable buffer board: common questions
How big is the Cable buffer board?
The Cable buffer board measures 24.5 × 9 mm, has 4 copper layers and is 1.567 mm thick.
How many components are on the Cable buffer board?
9 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Cable buffer board design files?
From the AllenNeuralDynamics/harp.device.lickety-split repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Cable buffer board design in my own project?
Yes, under the terms of its MIT license, which AllenNeuralDynamics chose for the repository.
