Elora vision is an open source STM32 PCB design by aminjahanpour, published on GitHub. It is a 4-layer board measuring 40 × 39 mm, with 70 components from 60 distinct parts.
Its main chip is the SX1276IMLTRT, from the STM32 family. Other key parts include the PE4259 and CRCW06030000Z0EA. By type, the board carries 37 capacitors, 12 resistors, 6 inductors, 4 ICs, 4 connectors and 3 diodes.
It belongs with the rf & radio designs in this gallery.
From the project

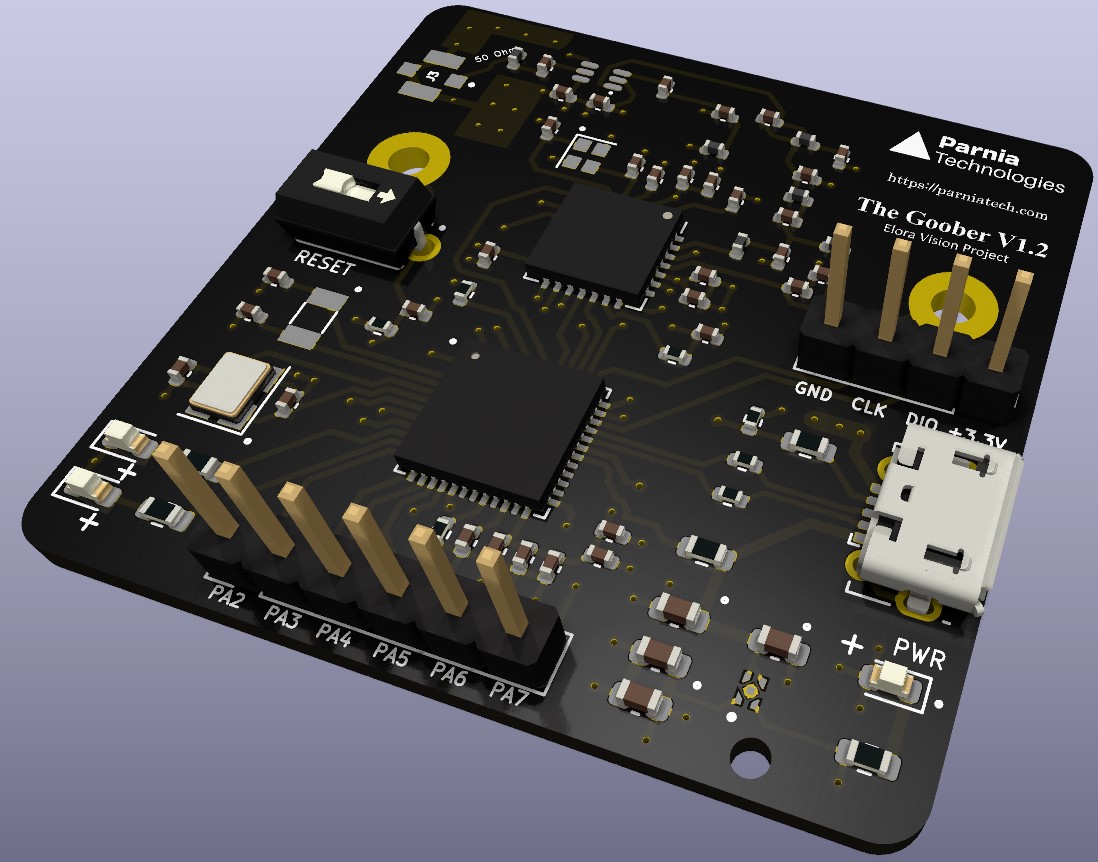

KiCad files for imageoverlora project PCB
KiCad files for imageoverlora project PCB
It could be that a PCB that integerates both of those two modules would cost less.
Also check out my question on StackExchange regarding the radio circuitry. The given answer is pretty informative.
- A great guide for implementing USB-C in your KiCad projects - I highly recommend taking Phil's Lab PCB design courses. It helped me a lot.
Main components on the Elora vision
Elora vision bill of materials (BOM)
70 components, 60 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SX1276IMLTRT STM32F411CEU6 Semtech | QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm | U1 |
| 1 | PE4259 AP7340-12FS4-7 Peregrine Semi | VREG_AP7340D-25FS4-7 | U2 |
| 1 | PE4259 Peregrine Semi | SOT65P215X110-6N | U5 |
| 1 | CRCW06030000Z0EA SX1276 Vishay/Dale | QFN-28-1EP_6x6mm_P0.65mm_EP4.8x4.8mm | U6 |
| 1 | FTR5092-A2 32MHz Rakon | Crystal_SMD_2016-4Pin_2.0x1.6mm | Q1 |
| 1 | 12 MHz (C9002) | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y4 |
| 1 | 32.768 kHz | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y5 |
| 1 | 68000-108HLF USB_B_Micro FCI | USB_Micro-B_Molex-105017-0001 | J1 |
| 1 | 68000-110HLF Conn_01x04_Male FCI | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 1 | 68000-108HLF IPEX_73412-0114 FCI | MOLEX_73412-0114 | J3 |
| 1 | 68000-106HLF Conn_01x06_Male FCI | PinHeader_1x06_P2.54mm_Vertical | J4 |
| 1 | SW_SPST_SKHLAAA010 | SKHLAAA010 | B2 |
| 1 | LED_GREEN_PWR | LED_0603_1608Metric | D1 |
| 1 | LED_GREEN_1 | LED_0603_1608Metric | D2 |
| 1 | LED_YELLOW_1 | LED_0603_1608Metric | D3 |
| 1 | LQG15HS82NJ02D 0R Murata | L_0402_1005Metric | L1 |
| 1 | LQW15AN33NJ00D 10nH Wire Murata | L_0402_1005Metric | L2 |
| 1 | LQW15AN5N6C10D 4.7nH Wire Murata | L_0402_1005Metric | L4 |
| 1 | LQW15AN5N6C10D 5.6nH Wire Murata | L_0402_1005Metric | L5 |
| 1 | CRCW04020000Z0ED 33nH Vishay/Dale | L_0402_1005Metric | L6 |
Show 40 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LQG15HS10NJ02D 2.2nH Wire Murata | L_0402_1005Metric | L7 |
| 1 | GRM1555C1H150JA01D 100nF Murata | C_0402_1005Metric | C1 |
| 1 | GRM1555C1H150JA01D 10uF Murata | C_0402_1005Metric | C2 |
| 2 | GRM155R71C104KA88D 100nF Murata | C_0402_1005Metric | C3, C21 |
| 1 | GRM155R71C104KA88D 1nF Murata | C_0402_1005Metric | C4 |
| 1 | GRM155R71C104KA88D 2.2uF Murata | C_0402_1005Metric | C6 |
| 1 | GRM1555C1H470JZ01D 4.7uF Murata | C_0402_1005Metric | C7 |
| 4 | GRM1555C1H470JZ01D 100nF Murata | C_0402_1005Metric | C8, C18, C20, C36 |
| 1 | GRM1555C1H220JZ01D 100nF Murata | C_0402_1005Metric | C9 |
| 1 | GRM1555C1H8R2CZ01D 100nF Murata | C_0402_1005Metric | C10 |
| 1 | GRM1555C1H6R8CA01D 1uF Murata | C_0603_1608Metric | C11 |
| 1 | 1uF | C_0603_1608Metric | C12 |
| 2 | 100nF | C_0603_1608Metric | C14, C15 |
| 2 | 47pF | C_0402_1005Metric | C16, C37 |
| 2 | GRM1555C1H470JZ01D 10pF Murata | C_0402_1005Metric | C19, C38 |
| 1 | GRM155R71H102JA01D 100nF Murata | C_0402_1005Metric | C22 |
| 1 | GRM21BR60J226ME39L 1nF Murata | C_0402_1005Metric | C23 |
| 1 | GRM188R61A105KA61D 3.3pF Murata | C_0402_1005Metric | C24 |
| 1 | GRM155R71H102JA01D 47pF Murata | C_0402_1005Metric | C25 |
| 1 | GRM1555C1H470JZ01D 47pF Murata | C_0402_1005Metric | C26 |
| 1 | GRM1555C1H4R7CA01D 8.2pF Murata | C_0402_1005Metric | C29 |
| 1 | GRM1555C1H6R8CA01D 3.3pF Murata | C_0402_1005Metric | C30 |
| 1 | GRM1555C1H2R7CZ01D 1.5pF Murata | C_0402_1005Metric | C31 |
| 1 | GRM1555C1H6R8CA01D 47pF Murata | C_0402_1005Metric | C32 |
| 1 | 10nF | C_0402_1005Metric | C33 |
| 1 | 8.2pF | C_0402_1005Metric | C34 |
| 1 | GRM155R71E103KA01D 22pF Murata | C_0402_1005Metric | C35 |
| 1 | GRM1555C1H470JZ01D 2.2pF Murata | C_0402_1005Metric | C39 |
| 1 | 10pF | C_0402_1005Metric | C40 |
| 1 | 2.2pF | C_0402_1005Metric | C41 |
| 1 | GRM155R71H102JA01D 10pF Murata | C_0402_1005Metric | C43 |
| 1 | CRCW04020000Z0ED 560 Vishay/Dale | R_0603_1608Metric | R1 |
| 1 | CRCW04020000Z0ED 10K Vishay/Dale | R_0402_1005Metric | R2 |
| 2 | CRCW06030000Z0EA 10K Vishay/Dale | R_0402_1005Metric | R3, R6 |
| 2 | EXB-N8V101JX 22 Panasonic - ECG | R_0402_1005Metric | R4, R5 |
| 1 | CRCW04020000Z0ED 1k Vishay/Dale | R_0402_1005Metric | R7 |
| 2 | 560 | R_0603_1608Metric | R8, R9 |
| 1 | CRCW04021K00JNED 560 Vishay/Dale | R_0603_1608Metric | R10 |
| 1 | EXB-N8V101JX 560 Panasonic - ECG | R_0603_1608Metric | R13 |
| 1 | 100k | R_0402_1005Metric | R15 |
Elora vision design files
The KiCad project lives in the aminjahanpour/elora_vision_pcb repository on GitHub; these links point at the commit this page was built from.
Elora vision: common questions
What microcontroller does the Elora vision use?
The Elora vision is built around the SX1276IMLTRT, from the STM32 family.
How big is the Elora vision PCB?
The Elora vision measures 40 × 39 mm, has 4 copper layers and is 1.59 mm thick.
How many components are on the Elora vision?
70 components, from 60 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Elora vision design files?
From the aminjahanpour/elora_vision_pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Elora vision design in my own project?
The repository has no license, so all rights stay with aminjahanpour. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Elora vision without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
