Igloo64 Prototyping Board
About the Igloo64 Prototyping Board
Igloo64 Prototyping Board is an open source PCB design by anachrocomputer, published on GitHub. It is a 2-layer board measuring 96.5 × 90.2 mm, with 28 components from 7 distinct parts.
By type, the board carries 19 connectors and 9 diodes.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
PCB design using KiCad for a 64-pin TQFP breadboard vaguely shaped like an igloo
PCB design to adapt a 64-pin TQFP part to a standard solderless breadboard.
Many modern chips are only available in surface-mount packages. Some have the audacity to have 64 pins, and not only that, pins on all four sides. How can we make such a heinous package fit onto a standard solderless breadboard?

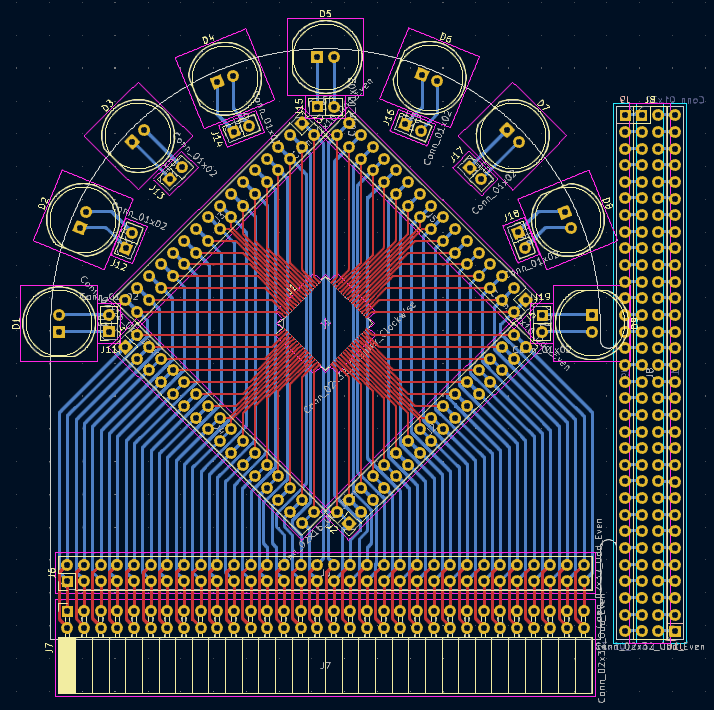

This PCB design mounts the SMD part on a vertical board that plugs into a second board that fits on the breadboard. The vertical board has a rounded top, reminiscent of an igloo, hence the name.
Igloo64 Prototyping Board bill of materials (BOM)
28 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_02x32_Counter_Clockwise | TQFP-64_10x10mm_P0.5mm | J1 |
| 4 | Conn_02x16_Odd_Even | PinHeader_2x16_P2.54mm_Vertical | J2, J3, J4, J5 |
| 2 | Conn_02x32_Odd_Even | PinHeader_2x32_P2.54mm_Vertical | J6, J8 |
| 1 | Conn_02x32_Odd_Even | PinSocket_2x32_P2.54mm_Horizontal | J7 |
| 2 | Conn_01x32 | PinHeader_1x32_P2.54mm_Vertical | J9, J10 |
| 9 | Conn_01x02 | PinSocket_1x02_P2.54mm_Vertical | J11, J12, J13, J14, J15, J16, J17, J18 +1 |
| 9 | LED | LED_D10.0mm | D1, D2, D3, D4, D5, D6, D7, D8 +1 |
Igloo64 Prototyping Board design files
The KiCad project lives in the anachrocomputer/Igloo64 repository on GitHub; these links point at the commit this page was built from.
- LayoutIgloo64.kicad_pcb
- SchematicIgloo64.kicad_sch
Igloo64 Prototyping Board: common questions
How big is the Igloo64 Prototyping Board?
The Igloo64 Prototyping Board measures 96.5 × 90.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Igloo64 Prototyping Board?
28 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Igloo64 Prototyping Board design files?
From the anachrocomputer/Igloo64 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Igloo64 Prototyping Board design in my own project?
The repository has no license, so all rights stay with anachrocomputer. Use it as a reference, and ask the author before reusing the design.
