LedHex
About the LedHex PCB
LedHex is an open source PCB design by anachrocomputer, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 62 × 92 mm, with 35 components from 9 distinct parts.
Other key parts include the TLC5916. By type, the board carries 23 diodes, 5 connectors, 3 capacitors, 2 ICs and 2 resistors.
It belongs with the displays & leds designs in this gallery.
From the project

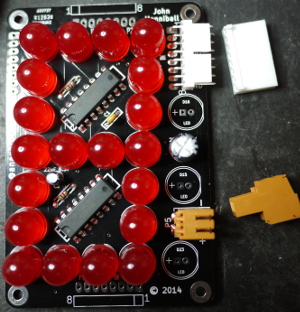

Programs and CAD files for the LED hex display PCB.
This repository contains several programs to run on an Arduino and drive a display made from LEDs.
The display was made as a small-volume low-cost PCB using a design drawn in KiCad.
CAD files for the schematic and PCB, designed in 2014 using KiCad V3. This version of KiCad is so old now that it's not practical to update the files. At the time of writing, KiCad is at V8.0.5 and uses a completely different set of PCB footprints from V3. So although it's possible to update the schematic files to use the latest format and the latest symbols, it's difficult to map those symbols to the new…
Main components on the LedHex
LedHex bill of materials (BOM)
35 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TLC5916 | DIP-16__300_ELL | U1, U2 |
| 3 | IN | KK-H-8-notab | P1, P2, P3 |
| 1 | OUT | KK-V-8-noheader | P4 |
| 1 | VLED | pterm3.5-2 | P5 |
| 23 | LED | LED-10MM | D1, D2, D3, D4, D5, D6, D7, D8 +15 |
| 1 | 1uF | C1-1 | C1 |
| 1 | 22uF 6.3V | CP1.5V4D | C2 |
| 1 | 220uF 16V | CP3.5V8D | C3 |
| 2 | R | R3-LARGE_PADS | R1, R2 |
LedHex design files
The KiCad project lives in the anachrocomputer/LedHex repository on GitHub; these links point at the commit this page was built from.
LedHex: common questions
How big is the LedHex PCB?
The LedHex measures 62 × 92 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LedHex?
35 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the LedHex design files?
From the anachrocomputer/LedHex repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the LedHex design in my own project?
Yes, under the terms of its GPL-3.0 license, which anachrocomputer chose for the repository.
