Futai-Encoder-WS2811-ring PCB layout, top view — open source board by andilge

About the Futai-Encoder-WS2811-ring PCB

Futai-Encoder-WS2811-ring is an open source PCB design by andilge, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 31.1 × 49 mm, with 50 components from 14 distinct parts.

By type, the board carries 27 resistors, 12 diodes, 9 capacitors, 1 connector and 1 switch.

It belongs with the displays & leds designs in this gallery.

From the project

Shoutout to ezcGman for the assistance with the KiCad symbols and footprints, hints about thermal reliefs on pads and the continuous feedback about his experiences while building up the circuit with the board.

Shoutout to ezcGman for the assistance with the KiCad symbols and footprints, hints about thermal reliefs on pads and the continuous feedback about his experiences while building up the circuit with the board.

Additional to this you can purchase 10 blank cover panels on aliexpress.com

The official data sheet from the producer says | pin # | description | |:------:|:---------------:| | 1 | DOUT | | 2 | VCC | | 3 | GND | | 4 | DIN |

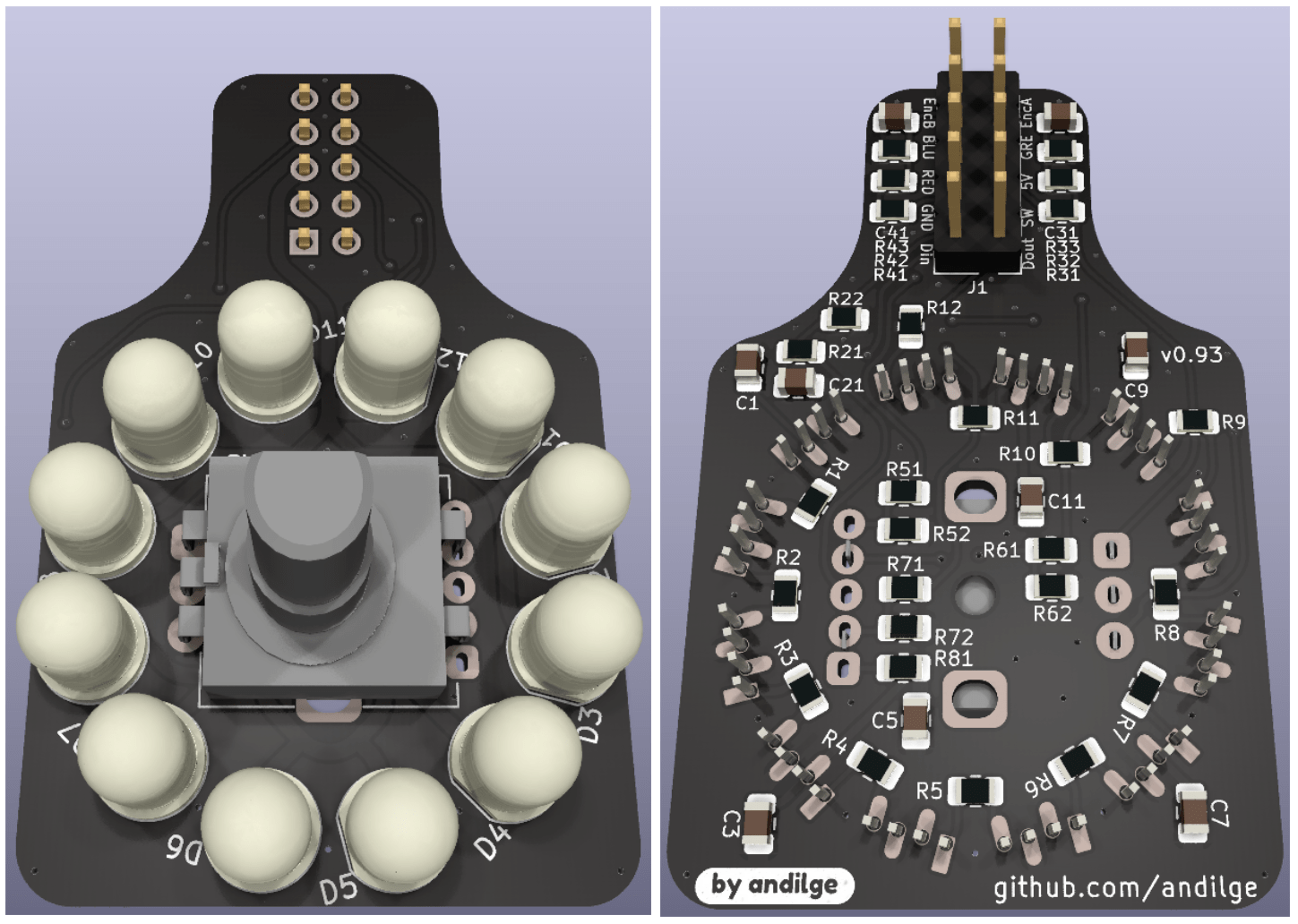

Futai-Encoder-WS2811-ring, from the project README
From the project README

Futai-Encoder-WS2811-ring bill of materials (BOM)

50 components, 14 distinct parts.

QtyPartRefs
1
Conn_02x05_Top_Bottom
J1
1
RotaryEncoder_Switch_RGB
SW1
12
WS2812D F5 hat
D1, D2, D3, D4, D5, D6, D7, D8 +4
6
220nF
C1, C3, C5, C7, C9, C11
1
100nF
C21
2
10nF
C31, C41
12
75Ω
R1, R2, R3, R4, R5, R6, R7, R8 +4
1
33kΩ
R21
1
68kΩ
R22
4
10kΩ
R31, R32, R41, R42
2
39kΩ
R33, R43
3
12kΩ
R51, R61, R71
3
2kΩ
R52, R62, R72
1
100Ω
R81

Futai-Encoder-WS2811-ring design files

The KiCad project lives in the andilge/Futai-Encoder-WS2811-ring repository on GitHub; these links point at the commit this page was built from.

Futai-Encoder-WS2811-ring: common questions

How big is the Futai-Encoder-WS2811-ring PCB?

The Futai-Encoder-WS2811-ring measures 31.1 × 49 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Futai-Encoder-WS2811-ring?

50 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Futai-Encoder-WS2811-ring design files?

From the andilge/Futai-Encoder-WS2811-ring repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Futai-Encoder-WS2811-ring design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
