About the Spl PCB
Spl is an open source STM32 PCB design by andrewhlu, published on GitHub. It is a 2-layer board measuring 71.6 × 68.6 mm, with 78 components from 43 distinct parts.
Its main chip is the STM32L053R8Tx, from the STM32 family. Other key parts include the LP2985-3.3, RM3100, Sen-X, Sen-Y and Sen-Z. By type, the board carries 32 capacitors, 22 resistors, 8 ICs, 6 connectors, 5 diodes and 3 jumpers.
It belongs with the sensors designs in this gallery.
From the project
Smart Parking Lot Capstone Project
A project for ECE 189 - Computer Engineering Capstone led by Professor Isukapalli at UC Santa Barbara
Andrew Lu Finn Linderman Luyao Han Seungjun Cho

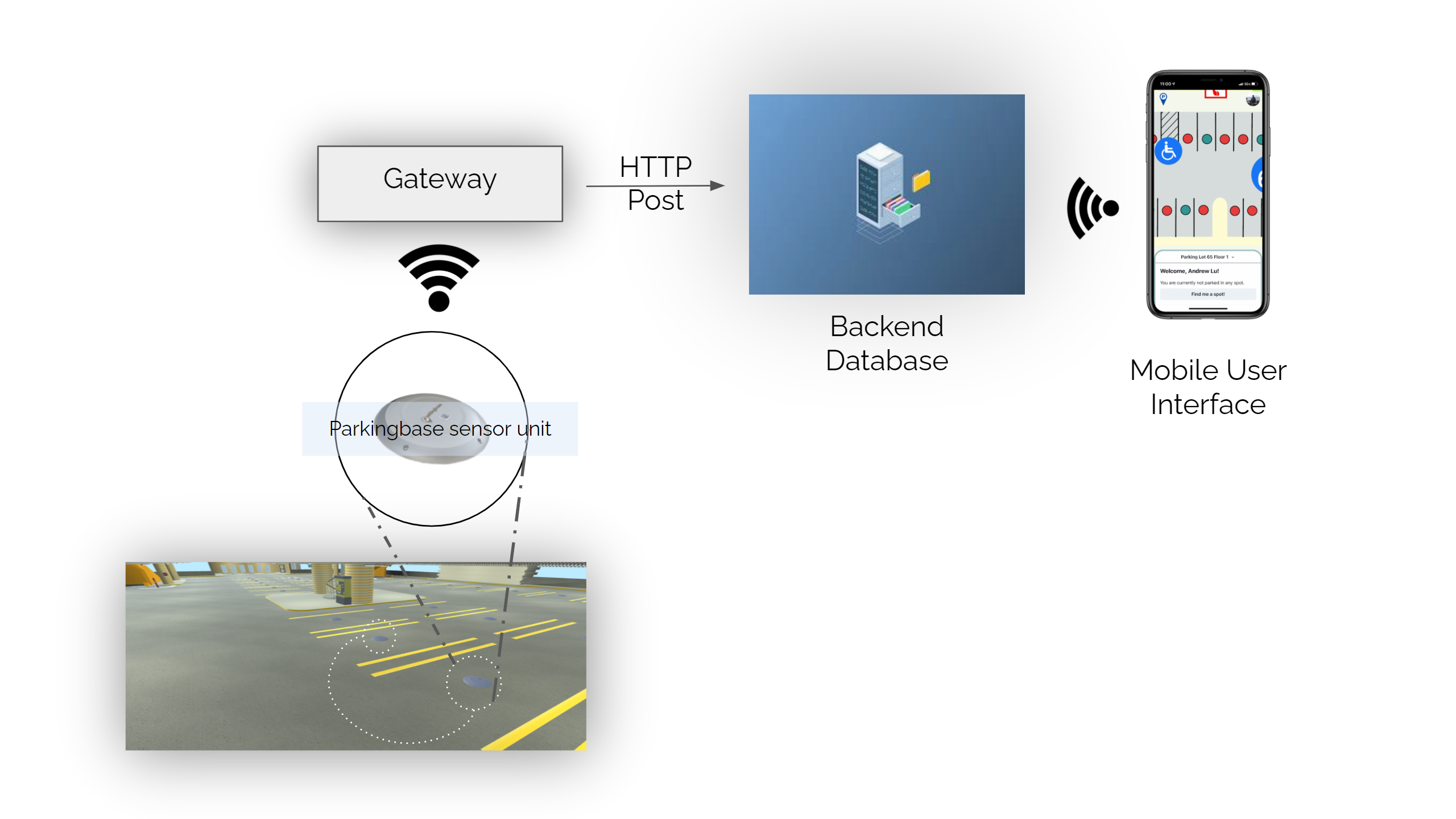

Drivers spend too much time in parking lots trying to find an open space to park in. Many parking lots only have per-floor capacity indicators, and existing solutions are prohibitively expensive.
What if we could utilize low-cost sensors and a companion application to navigate drivers to empty parking spots faster, at a low cost to facility owners?

Main components on the Spl
Spl bill of materials (BOM)
78 components, 43 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32L053R8Tx | LQFP-64_10x10mm_P0.5mm | U1 |
| 1 | LP2985-3.3 | SOT-23-5 | U2 |
| 1 | RM3100 | QFN-28_EP_4x4_Pitch0.4mm | U3 |
| 1 | Sen-X | RM3100_SEN_XY | U4 |
| 1 | Sen-Y | RM3100_SEN_XY | U5 |
| 1 | Sen-Z | RM3100_SEN_Z | U6 |
| 1 | bq51013b | VQFN20 | U7 |
| 1 | MCP73831-2-OT | SOT-23-5 | U8 |
| 1 | 8MHz | Crystal_SMD_HC49-SD | Y1 |
| 2 | Conn_01x02_Female | JST_EH_B2B-EH-A_1x02_P2.50mm_Vertical | J1, J2 (TEST3V3-GND) |
| 1 | LoRaConn | PinSocket_1x09_P2.54mm_Vertical | J3 |
| 1 | DebugPortal | PinHeader_1x06_P2.54mm_Vertical | J4 |
| 1 | Coil | PinHeader_1x02_P2.54mm_Vertical | J6 (COIL) |
| 1 | Conn_01x04_Male | PinHeader_1x04_P2.54mm_Vertical | J7 (TOF) |
| 1 | Jumper_3_Open | PinHeader_1x03_P2.54mm_Vertical | JP1(LDO/TEST3V3) |
| 2 | Jumper | PinHeader_1x02_P2.54mm_Vertical | JP2(BQ-5V), JP3(CHG-BATT) |
| 1 | SW_Push | SW_SPST_B3U-1000P | SW1 |
| 5 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1, D2, D3, D4, D5 |
| 4 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4 |
| 6 | 104 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5, C6, C7, C8, C9, C14 |
Show 23 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 20pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C10, C11 |
| 2 | C_Small | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C12, C29 |
| 3 | 1uF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C13, C33, C35 |
| 2 | 68nF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C18, C19 |
| 1 | 47nF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C20 |
| 1 | 1800pF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C21 |
| 1 | 100pF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C22 |
| 2 | 22nF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C23, C28 |
| 2 | 470nF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C24, C27 |
| 3 | 10nF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C25, C26, C32 |
| 1 | 10uF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C30 |
| 2 | 100nF 50V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C31, C34 |
| 3 | R_Small | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R20 |
| 3 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R16, R18 |
| 1 | 2K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4 |
| 1 | 33k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5 |
| 6 | 121 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R7, R8, R9, R10, R11 |
| 2 | NC | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R12, R15 |
| 1 | 62R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R13 |
| 1 | 180R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R14 |
| 1 | NC/10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R17 |
| 1 | 3K3 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R19 |
| 2 | 1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R21, R22 |
Spl design files
The KiCad project lives in the andrewhlu/spl repository on GitHub; these links point at the commit this page was built from.
Spl: common questions
What microcontroller does the Spl use?
The Spl is built around the STM32L053R8Tx, from the STM32 family.
How big is the Spl PCB?
The Spl measures 71.6 × 68.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Spl?
78 components, from 43 distinct parts. The full bill of materials is listed on this page.
Where can I download the Spl design files?
From the andrewhlu/spl repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Spl design in my own project?
The repository has no license, so all rights stay with andrewhlu. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Spl without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
