Untitled keyboard
About the Untitled keyboard PCB
Untitled keyboard is an open source PCB design by AnthonyAmanse, published on GitHub under the MIT license. It is a 2-layer board measuring 137.3 × 118.9 mm, with 83 components from 13 distinct parts.
Other key parts include the ProMicro. By type, the board carries 29 switches, 29 diodes, 8 jumpers, 5 connectors, 2 resistors and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

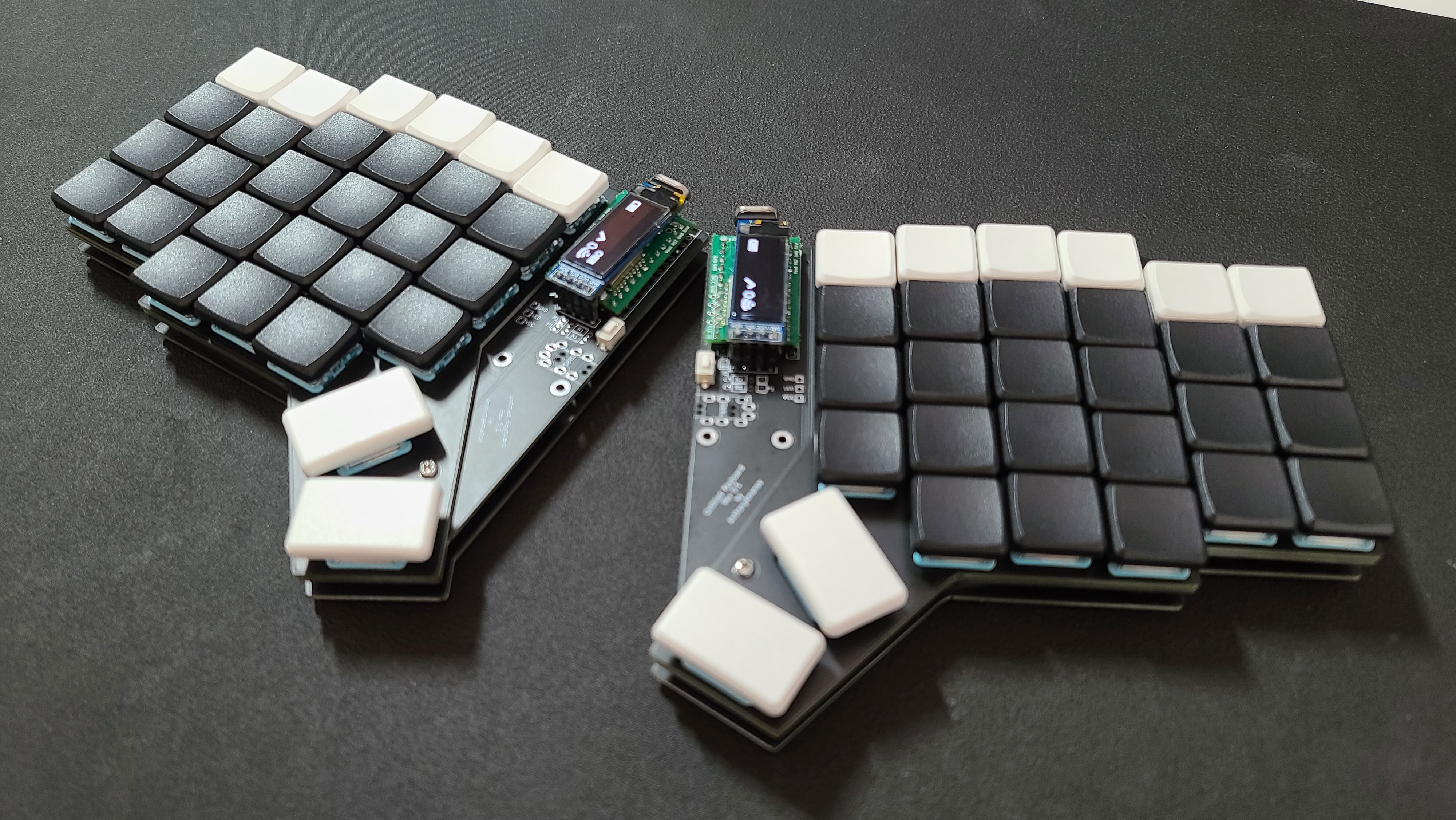

This is a choc only wireless split keyboard with pro micro compatible sockets. It's inspired by the Sofle, Lily58, Corne, ... keyboards. It has Kailh choc spacings (18 mm x 17 mm). Keycaps I'm using are MBK choc keycaps which has a size of 17.5 x 16.5. I didn't add support for en
This is a choc only wireless split keyboard with pro micro compatible sockets. It's inspired by the Sofle, Lily58, Corne, ... keyboards. It has Kailh choc spacings (18 mm x 17 mm). Keycaps I'm using are MBK choc keycaps which has a size of 17.5 x 16.5. I didn't add support for encoder to make it a bit lighter. Pinky columns has a 0.5u vertical offset to make it more comfortable (at least for me). Bottom row has 2 x 1.5u keys with an angle. I thought this would make the thumb cluster more comfortable and reachable. In my experience with this keyboard, the thumb keys are more comfortable when…
Main components on the Untitled keyboard
Untitled keyboard bill of materials (BOM)
83 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro | U1 |
| 1 | LED | LED | J1 |
| 1 | 4PIN | MJ-4PP-9 | J2 |
| 1 | OLED | OLED_4Pin | J3 |
| 2 | i2c_pin | 1pin_conn | P1, P2 |
| 8 | Device_Jumper_NO_Small | Jumper | JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 |
| 1 | SW_RST | TACT_SWITCH_TVBP06 | RSW1 |
| 29 | SW_PUSH | Kailh_socket_PG1350_reversible | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +21 |
| 2 | HOLE | M2_HOLE_PCB | TH1, TH2 |
| 5 | HOLE | HOLE_M2_TH | TH3, TH4, TH5, TH6, TH7 |
| 1 | jumper | jumper_data | W1 |
| 29 | DIODE | Diode_SOD123 | D1, D2, D3, D4, D5, D6, D7, D8 +21 |
| 2 | R | RESISTOR_mini | R1, R2 |
Untitled keyboard design files
The KiCad project lives in the AnthonyAmanse/untitled-keyboard repository on GitHub; these links point at the commit this page was built from.
Untitled keyboard: common questions
How big is the Untitled keyboard PCB?
The Untitled keyboard measures 137.3 × 118.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Untitled keyboard?
83 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Untitled keyboard design files?
From the AnthonyAmanse/untitled-keyboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Untitled keyboard design in my own project?
Yes, under the terms of its MIT license, which AnthonyAmanse chose for the repository.
