Hantek-6022
About the Hantek-6022 PCB
Hantek-6022 is an open source PCB design by AntoninPvr, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 16.8 × 15 mm, with 15 components from 10 distinct parts.
Other key parts include the TLP175A. By type, the board carries 7 connectors, 4 resistors, 2 ICs and 2 capacitors.
From the project
Simple PCB for the Hantek 6022 AC mod
Simple pcb to add AC coupling to the Hantek 6022BE oscilloscope. Based on the widespread mod available here: https://github.com/OpenHantek/OpenHantek6022/blob/main/docs/HANTEK6022ACModification.pdf
Compatible with the OpenHantek6022 project

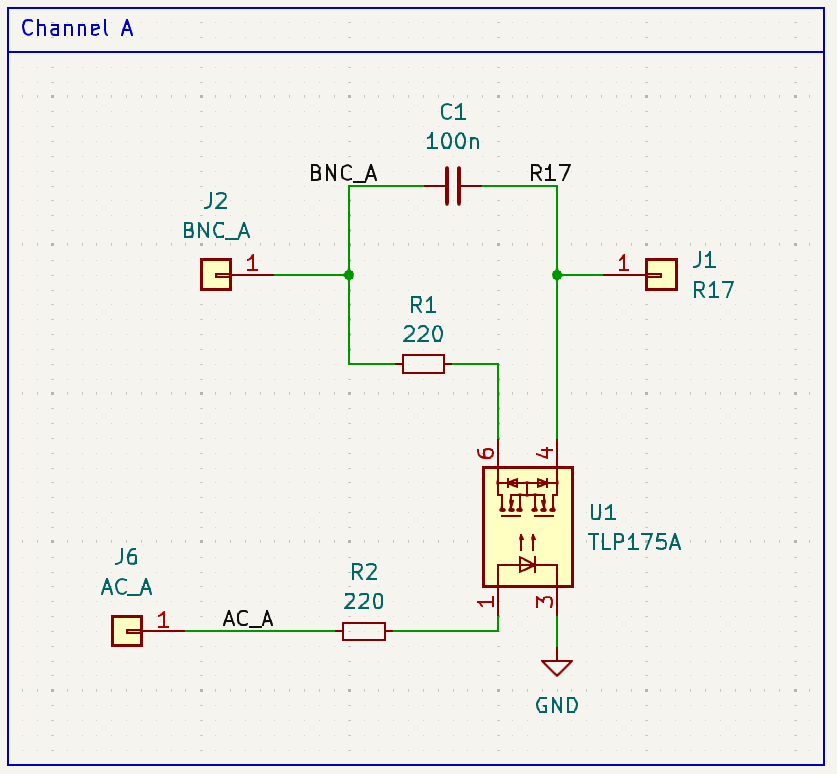

When ACA is high C1 is short so the signal is DC coupled. When ACA is low C1 is open so the signal is AC coupled.
Back layer can be avoided especially in case of pcb milling.
Main components on the Hantek-6022
Hantek-6022 bill of materials (BOM)
15 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TLP175A | MFSOP6-4_4.4x3.6mm_P1.27mm | U1, U2 |
| 1 | R17 | Pin_D1.0mm_L10.0mm | J1 |
| 1 | BNC_A | Pin_D1.0mm_L10.0mm | J2 |
| 1 | BNC_B | Pin_D1.0mm_L10.0mm | J3 |
| 1 | R27 | Pin_D1.0mm_L10.0mm | J4 |
| 1 | AC_B | Pin_D1.0mm_L10.0mm | J5 |
| 1 | AC_A | Pin_D1.0mm_L10.0mm | J6 |
| 1 | Conn_01x01 | PinHeader_1x01_P2.54mm_Vertical | J7 |
| 2 | 100n | C_0805_2012Metric | C1, C2 |
| 4 | 220 | R_0805_2012Metric | R1, R2, R3, R4 |
Hantek-6022 design files
The KiCad project lives in the AntoninPvr/hantek-6022-pcb repository on GitHub; these links point at the commit this page was built from.
- Layouthantek-6022-pcb.kicad_pcb
- Schematichantek-6022-pcb.kicad_sch
Hantek-6022: common questions
How big is the Hantek-6022 PCB?
The Hantek-6022 measures 16.8 × 15 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hantek-6022?
15 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Hantek-6022 design files?
From the AntoninPvr/hantek-6022-pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Hantek-6022 design in my own project?
Yes, under the terms of its GPL-3.0 license, which AntoninPvr chose for the repository.
