About the Usb fm radio PCB
Usb fm radio is an open source STM32 PCB design by anttikes, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 58.8 × 29.5 mm, with 36 components from 26 distinct parts.
Its main chip is the C88447, from the STM32 family. Other key parts include the C7519, C2798212 and C1526114. By type, the board carries 15 capacitors, 8 resistors, 4 ICs, 3 connectors, 2 diodes and 2 inductors.
It belongs with the rf & radio designs in this gallery.
From the project
Repository for an USB-plugged FM radio project, consisting of the firmware, cross-platform user interface and PCB / Schematic portions

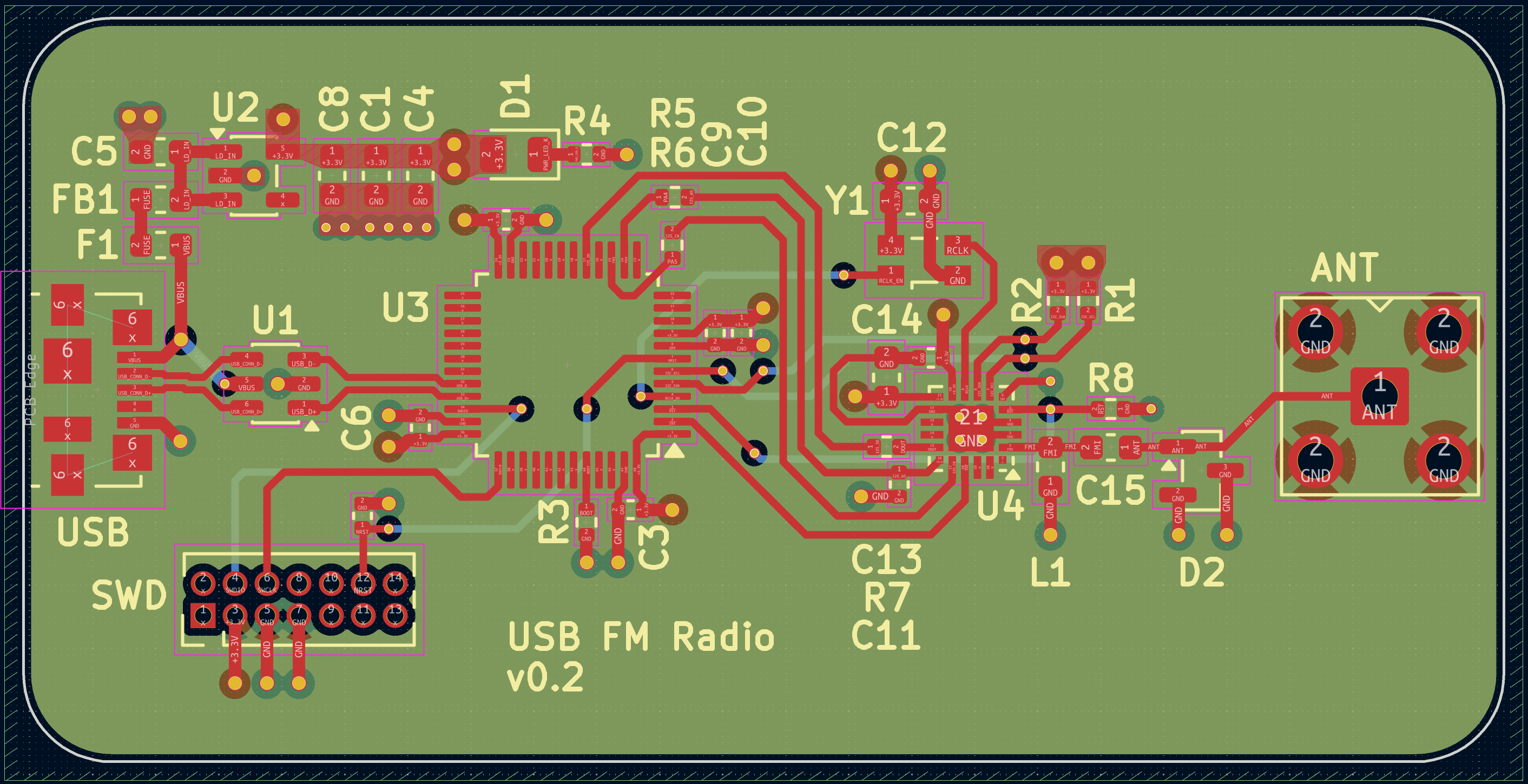

This folder contains the KiCad schematic and PCB layout file for the board.
To open this project download and install KiCad v10 for your operating system from this page.
After installation you need to find and provide the following 3D models, and install them to the model directory of your KiCad installation: - Skyworks Si4705-D60 - BAT Wireless BWSMA-KE-z001
These 3D models are not provided in the repository due to copyright reasons.

Main components on the Usb fm radio
Usb fm radio bill of materials (BOM)
36 components, 26 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C7519 USBLC6-2SC6 | SOT-23-6 | U1 |
| 1 | C2798212 LD39015M33R | SOT-23-5 | U2 |
| 1 | C88447 STM32F042C6T6 | LQFP-48_7x7mm_P0.5mm | U3 |
| 1 | C1526114 Si4705-D60-GM | SiliconLabs_QFN-20-1EP_3x3mm_P0.5mm_EP1.8x1.8mm | U4 |
| 1 | C256005 SG-3030CM | Oscillator_SMD_SeikoEpson_SG3030CM | Y1 |
| 1 | C132560 USB_B_Micro | USB_Micro-B_Molex_47346-0001 | J1 |
| 1 | C2935955 STDC14 | PinHeader_2x07_P1.27mm_Vertical | J2 |
| 1 | C496549 0 | SMA_BAT_Wireless_BWSMA-KWE-Z001 | J3 |
| 1 | C207012 250mA | Fuse_0603_1608Metric | F1 |
| 1 | C84256 RED | LED_0805_2012Metric | D1 |
| 1 | C558429 CM1213A-01SO | SOT-23 | D2 |
| 1 | C14709 100@100MHz | L_0603_1608Metric | FB1 |
| 1 | C98080 56n | L_0603_1608Metric | L1 |
| 4 | C19666 4.7u | C_0603_1608Metric | C1, C4, C5, C8 |
| 5 | C1525 100n | C_0402_1005Metric | C2, C3, C6, C7, C14 |
| 1 | C15195 10n | C_0402_1005Metric | C9 |
| 1 | C52923 1u | C_0402_1005Metric | C10 |
| 1 | C1559 2.2p | C_0402_1005Metric | C11 |
| 1 | C1622 47n | C_0603_1608Metric | C12 |
| 1 | C21122 22n | C_0603_1608Metric | C13 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C1636 1n | C_0603_1608Metric | C15 |
| 2 | C25900 4k7 | R_0402_1005Metric | R1, R2 |
| 2 | C25744 10k | R_0402_1005Metric | R3, R8 |
| 1 | C25867 1k5 | R_0402_1005Metric | R4 |
| 2 | C4109 2k | R_0402_1005Metric | R5, R6 |
| 1 | C8369 604 | R_0402_1005Metric | R7 |
Usb fm radio design files
The KiCad project lives in the anttikes/usb-fm-radio repository on GitHub; these links point at the commit this page was built from.
Usb fm radio: common questions
What microcontroller does the Usb fm radio use?
The Usb fm radio is built around the C88447, from the STM32 family.
How big is the Usb fm radio PCB?
The Usb fm radio measures 58.8 × 29.5 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Usb fm radio?
36 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Usb fm radio design files?
From the anttikes/usb-fm-radio repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Usb fm radio design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Usb fm radio without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
