LowProTest
About the LowProTest PCB
LowProTest is an open source PCB design by arrowtype, published on GitHub under the MIT license. It is a 2-layer board measuring 38.1 × 57.2 mm, with 3 components from 3 distinct parts.
It belongs with the keyboards designs in this gallery.
From the project
The utility of an 80% keyboard in a 40% layout
The utility of an 80% keyboard in a 40% form factor.

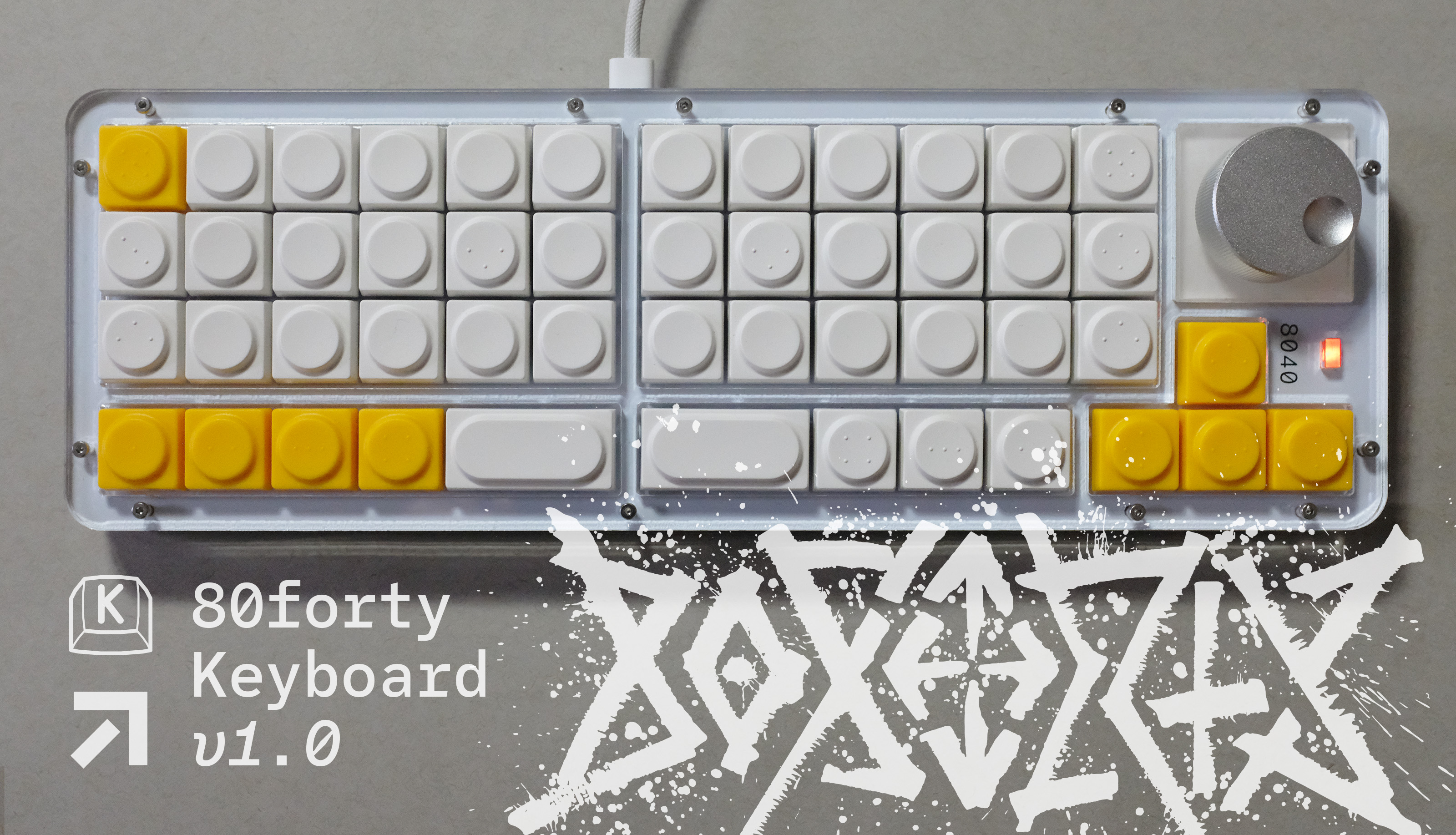

Inspired by the design of the OP-1 Synthesizer, the explorative spirit of the 40% & 30% keyboard community (especially boards like ChonkyKong, CutiePie, and Ortho Cajal), and the tactile reference points and minimized finger-travel of many split, ergonomic keyboards. The 80forty was partly motivated by the appearance of Deadline Studio DOYS keycaps, but it works with any MX-compatible keycaps.
LowProTest bill of materials (BOM)
3 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SW_PUSH_45DEG SW_Push_45deg | gateron-ks-33 | SW1 |
| 1 | SW_PUSH_45DEG SW_Push_45deg | KS-33-HS | SW2 |
| 1 | SW_PUSH_45DEG SW_Push_45deg | SW_MX_HS_1u | SW8 |
LowProTest design files
The KiCad project lives in the arrowtype/80forty repository on GitHub; these links point at the commit this page was built from.
LowProTest: common questions
How big is the LowProTest PCB?
The LowProTest measures 38.1 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LowProTest?
3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LowProTest design files?
From the arrowtype/80forty repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the LowProTest design in my own project?
Yes, under the terms of its MIT license, which arrowtype chose for the repository.
