KiCad-STM32F103C8Tx PCB layout, top view — open source STM32 board by artemmelnyk-extern

About the KiCad-STM32F103C8Tx PCB

KiCad-STM32F103C8Tx is an open source STM32 PCB design by artemmelnyk-extern, published on GitHub. It is a 2-layer board measuring 38.5 × 33.2 mm, with 28 components from 16 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 13 capacitors, 5 resistors, 4 connectors, 2 ICs, 1 crystal and 1 switch.

From the project

A two-layer SMD development board built around the STM32F103C8T6 (LQFP-48) microcontroller. Designed from scratch in KiCad 9 as a learning exercise following Phil's Lab on Udemy.

A two-layer SMD development board built around the STM32F103C8T6 (LQFP-48) microcontroller. Designed from scratch in KiCad 9 as a learning exercise following Phil's Lab on Udemy.

The schematic source is tproject.kicadsch (KiCad 9 S-expression format). Open with KiCad 9 Schematic Editor** or any compatible viewer.

To export a printable PDF from the command line:

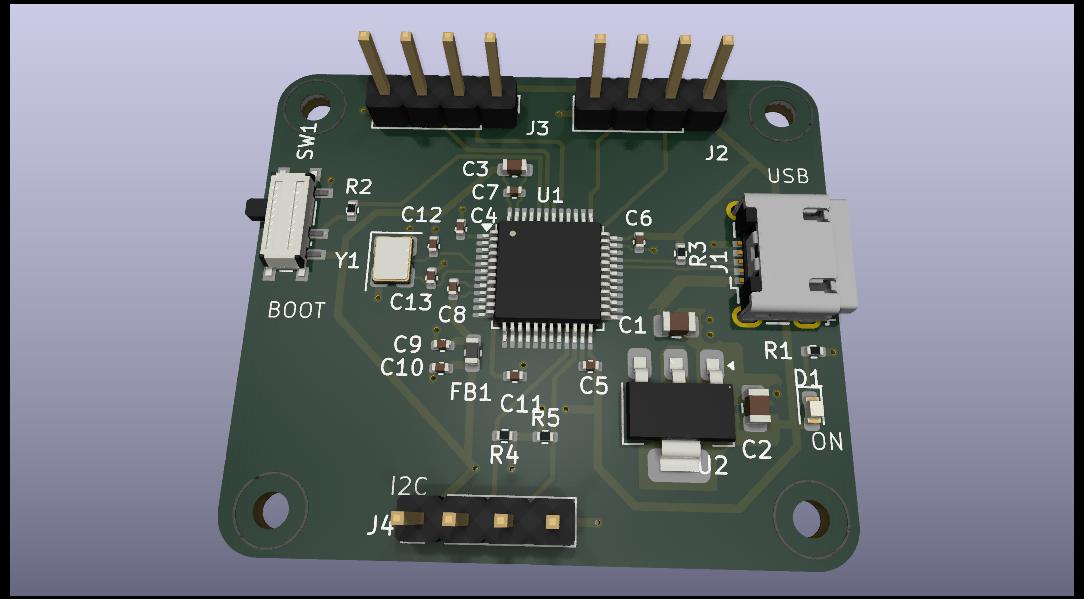

KiCad-STM32F103C8Tx, from the project README
From the project README

Main components on the KiCad-STM32F103C8Tx

STM32F103C8T6AMS1117-3.3

KiCad-STM32F103C8Tx bill of materials (BOM)

28 components, 16 distinct parts.

QtyPartRefs
1
STM32F103C8T6
U1
1
AMS1117-3.3
U2
1
16MHz
Y1
1
USB_B_Micro
J1
3
Conn_01x04_Pin
J2, J3, J4
1
SW_SPDT
SW1
1
RED
D1
1
120R
FB1
2
22u
C1, C2
1
10u
C3
5
100n
C4, C5, C6, C7, C11
1
10n
C8
2
1u
C9, C10
2
10p
C12, C13
4
1k5
R1, R3, R4, R5
1
10k
R2

KiCad-STM32F103C8Tx design files

The KiCad project lives in the artemmelnyk-extern/KiCad-STM32F103C8Tx repository on GitHub; these links point at the commit this page was built from.

KiCad-STM32F103C8Tx: common questions

What microcontroller does the KiCad-STM32F103C8Tx use?

The KiCad-STM32F103C8Tx is built around the STM32F103C8T6, from the STM32 family.

How big is the KiCad-STM32F103C8Tx PCB?

The KiCad-STM32F103C8Tx measures 38.5 × 33.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCad-STM32F103C8Tx?

28 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the KiCad-STM32F103C8Tx design files?

From the artemmelnyk-extern/KiCad-STM32F103C8Tx repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the KiCad-STM32F103C8Tx design in my own project?

The repository has no license, so all rights stay with artemmelnyk-extern. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the KiCad-STM32F103C8Tx without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
