PCB Design LSA

Aryaman22102002·PCB_Design_LSA

PCB Design LSA layout, top view — open source board by Aryaman22102002

About the PCB Design LSA

PCB Design LSA is an open source PCB design by Aryaman22102002, published on GitHub under the MIT license. It is a 2-layer board measuring 87 × 55.9 mm, with 18 components from 5 distinct parts.

Other key parts include the LM324. By type, the board carries 8 resistors, 5 connectors, 4 diodes and 1 IC.

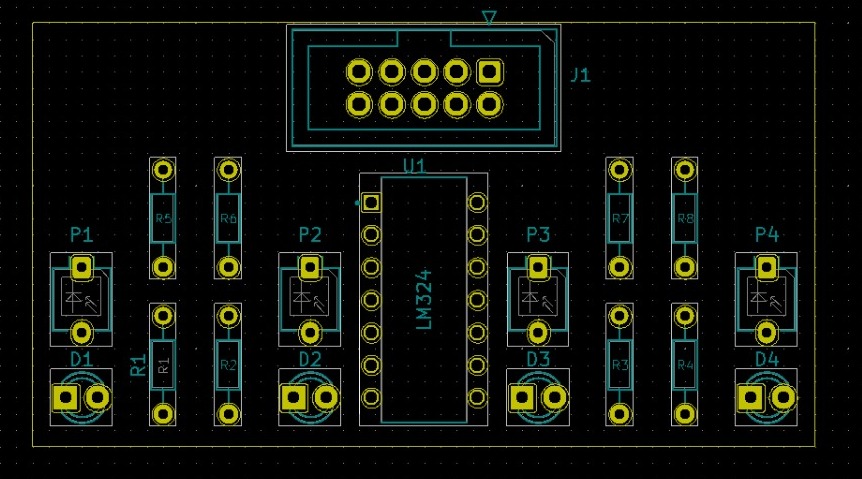

PCB Design LSA, from the project README
From the project README

Main components on the PCB Design LSA

PCB Design LSA bill of materials (BOM)

18 components, 5 distinct parts.

QtyPartRefs
1
LM324
U1
1
Conn_02x05_Odd_Even
J1
4
D_Photo
P1, P2, P3, P4
4
LED
D1, D2, D3, D4
8
R_US
R1, R2, R3, R4, R5, R6, R7, R8

PCB Design LSA design files

The KiCad project lives in the Aryaman22102002/PCB_Design_LSA repository on GitHub; these links point at the commit this page was built from.

PCB Design LSA: common questions

How big is the PCB Design LSA?

The PCB Design LSA measures 87 × 55.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PCB Design LSA?

18 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the PCB Design LSA design files?

From the Aryaman22102002/PCB_Design_LSA repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PCB Design LSA design in my own project?

Yes, under the terms of its MIT license, which Aryaman22102002 chose for the repository.
